Z-Force 44 (17AF3AGL010) - Cub Cadet 44" Z-Force Zero-Turn Mower, Kohler Deck Assembly 44 2009 & After Parts Diagram

44" Z-Force Zero-Turn Mower, Kohler

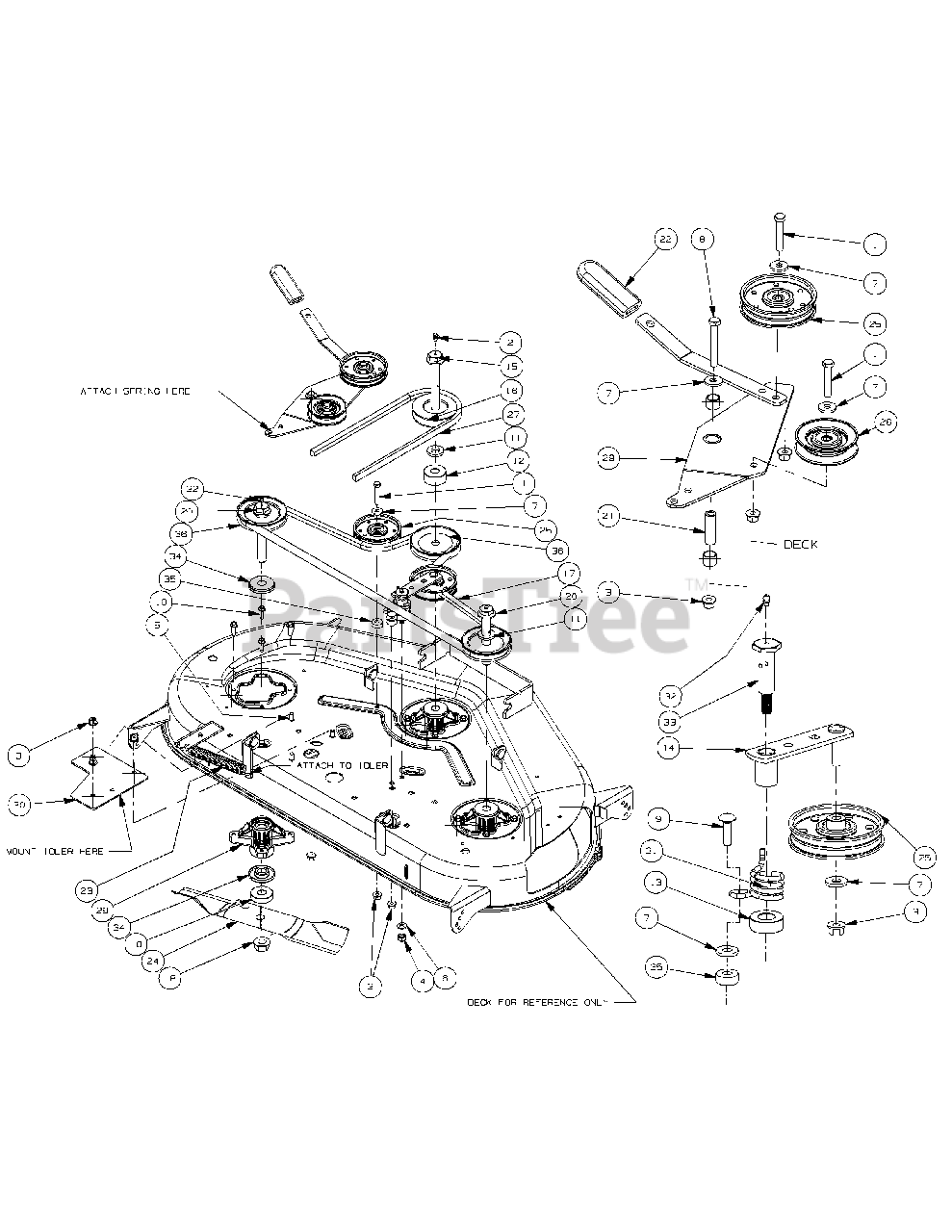

Deck Assembly 44 2009 & After Parts Diagram

  • Title

1

Cub Cadet 00002528

Hex Cap Screw 3/8-16 x 2.00

$7.49

$

In Stock, Qty 5

0

2

Cub Cadet 00012226

Grease Fitting, 1/4-28, 90 degree
(Superseded to 737-3004)

$12.99

$

In Stock, only 3 left!

0

3

Cub Cadet 00022560

Hex Nut, 3/8-16, Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 00027279

Nut 7/16-14, Nylock
(Superseded to 712-0290)

$4.99

$

In Stock, Qty 8

0

5

Cub Cadet 01000372

Carriage Bolt, 3/8-16 x .75
(Superseded to 710-3178)

$4.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 01000393

Flat Washer, .469 ID x .875 OD x .105
(Superseded to 936-3015)

$4.49

$

In Stock, Qty 18

0

7

Cub Cadet 01000723

Flat Washer, .406 ID x 1.0 OD x .105
(Superseded to 736-3052)

$4.99

$

In Stock, Qty 20+

0

8

Cub Cadet 01001371

HHCS, 3/8-16 x 2.75
(Superseded to 710-3022)

$4.99

$

In Stock, only 3 left!

0

9

Cub Cadet 01002010

Carraige Screw, 3/8-16 x 1.25
(Superseded to 710-3034)

$4.49

$

In Stock, only 3 left!

0

10

Cub Cadet 01002564

Spacer, .76 ID x 2.00 OD x .477

$21.99

$

In Stock, only 2 left!

0

11

Cub Cadet 01003123

Spacer .812 ID x .218
(Superseded to 750-05553)

$10.99

$

In Stock, Qty 20+

0

12

Cub Cadet 01004415

Spacer, .760 ID x 2.000 OD x 1.1

$42.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 01008456

Spacer .760 ID x 1.5 OD

$36.99

$

In Stock, only 1 left!

0

14

Cub Cadet 01008593

Idler Arm Assembly

$153.99

$

In Stock, only 1 left!

0

15

Cub Cadet 02000071

Spindle Bolt 3/4-16 x 7.155

$41.99

$

In Stock, only 2 left!

0

16

Cub Cadet 02000079

V-Pulley 4.25 OD Casting

$118.99

$

In Stock, only 4 left!

0

17

Cub Cadet 02000103

V-Belt, A-Section
(Superseded to 02000103P)

$92.99

$

In Stock, Qty 5

0

18

Cub Cadet 02000402

Nut, 3/4-16, Hex Flange

$13.99

$

In Stock, only 2 left!

0

19

Cub Cadet 02000762

Self Tapping Screw 5/16-18 x 1.0
(Superseded to 710-0602)

$4.99

$

In Stock, Qty 20+

0

20

Cub Cadet 02000819

Spindle Bolt 3/4-16 x 5.37

$38.99

$

In Stock, only 4 left!

0

21

Cub Cadet 02003640

Spacer, .39 ID x .625 OD x 1.875

$7.49

$

In Stock, Qty 9

0

22

Cub Cadet 02003740

Parking Brake Grip

$10.99

$

In Stock, only 2 left!

0

23

Cub Cadet 02004069

Extension Spring, .94 OD x 7.72 LG

$31.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 02005020

Blade, 15.94 Hi-Lift, 0.756 ID
(Superseded to 02005020-0637)

Variations

02005020-0637

Cub Cadet 02005020-0637

Mower Blade, 15.94" Lg Hi-Lift Powder Black - POWDER BLACK (0637)

$30.99

$

In Stock, Qty 20+

0

$30.99

$

In Stock, Qty 20+

0

25

Cub Cadet 02005077

Flat Pulley

$38.99

$

In Stock, Qty 20+

0

26

Cub Cadet 02005078

Idler Pulley, 3.50 Dia.

$38.99

$

In Stock, Qty 16

0

27

Cub Cadet 02005685

V-Belt, B-Section
(Superseded to 02005685P)

$96.99

$

In Stock, only 2 left!

0

28

Cub Cadet 618-04426

Spindle Assembly
(Superseded to 918-04426)

$119.99

$

In Stock, Qty 20+

0

29

Cub Cadet 02003795

Idler Arm Assembly, Double, includes:

$

$

Not available

29

Cub Cadet 01000308

Bearing
(Superseded to 741-04555)

Note: Not shown

$17.99

$

In Stock, only 1 left!

0

30

Cub Cadet 703-06985

Top Deck Plate

Variations

703-06985-4021

Cub Cadet 703-06985-4021

PLATE - TOP DECK - CUB YELLOW 2 (4021)

$

$

Not available

$

$

31

Cub Cadet 732-3009

Idler Spring
(Superseded to 932-3009)

$25.99

$

In Stock, Qty 20+

0

32

Cub Cadet 737-3000

Grease Fitting
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

33

Cub Cadet 738-3172

Shoulder Screw .68 x 2.11

$21.99

$

In Stock, only 4 left!

0

34

Cub Cadet 748-3065A

Spindle Spacer

$14.99

$

In Stock, Qty 20+

0

35

Cub Cadet 750-3119

Spacer .406 ID x 1.0 OD

$12.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 756-3089

Pulley

$38.99

$

In Stock, Qty 11

0
