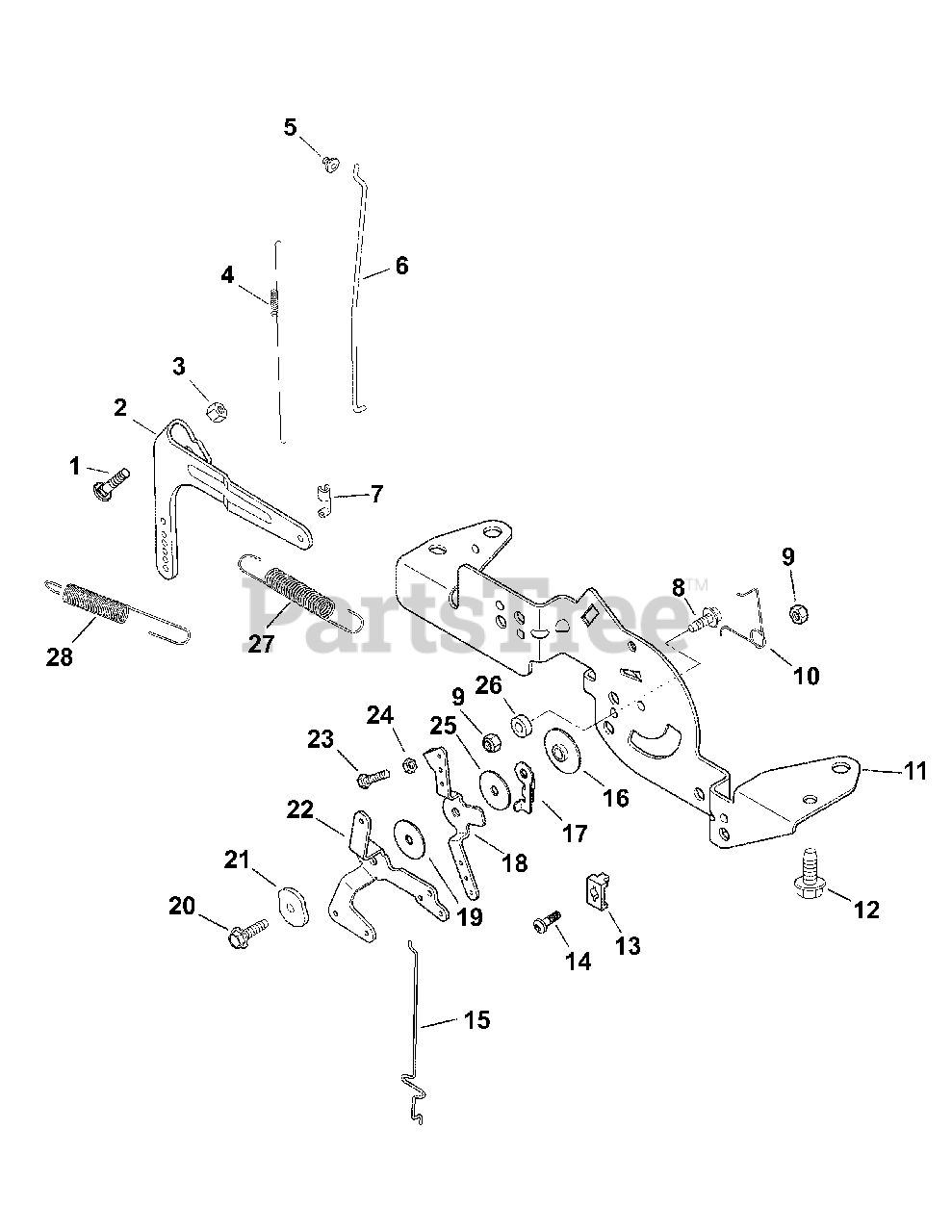

Z-Force 44 (17AF3AGL010) - Cub Cadet 44" Z-Force Zero-Turn Mower, Kohler SV810 Engine Controls Parts Diagram

44" Z-Force Zero-Turn Mower, Kohler

SV810 Engine Controls Parts Diagram

  • Title

1

Cub Cadet KH-24-211-03-S

Bolt, RD HD SQ Neck M6 x 1.0 x 25

$2.49

$

In Stock, Qty 16

0

2

Cub Cadet KH-24-090-51-S

Lever, Governor
(Superseded to KH-24-090-69-S)

$8.99

$

In Stock, only 1 left!

0

3

Cub Cadet KH-M-641060-S

Nut, FLG M6 x 1.0

$4.49

$

In Stock, Qty 15

0

4

Cub Cadet KH-24-089-01

Spring, Linkage

$

$

Not available

5

Cub Cadet KH-25-158-08

Bushing, Linkage Retaining

$

$

Not available

6

Cub Cadet KH-24-079-04

Linkage, Throttle

$

$

Not available

7

Cub Cadet KH-25-158-11

Bushing, Throttle Linkage

$

$

Not available

8

Cub Cadet KH-M-545016-S

Screw, FLG THD FRM M5 x 0.8 x 16
(Superseded to KH-25-086-398-S)

$3.99

$

In Stock, Qty 13

0

9

Cub Cadet KH-M-547050-S

Nut, Lock M5 x 0.8

$2.49

$

In Stock, Qty 6

0

10

Cub Cadet KH-24-089-03

Spring, Choke Return

$

$

Not available

11

Cub Cadet KH-24-126-161-S

Bracket, Control
(Superseded to KH-32-126-18-S)

$11.99

$

In Stock, only 1 left!

0

12

Cub Cadet KH-M-645016-S

Screw, FLG THD FRM M6 x 1.0 x16

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet KH-12-237-01

Clamo, Cable
(Superseded to KH-25-237-53-S)

$3.99

$

Usually ships in 3-6 days

0

14

Cub Cadet KH-24-086-43-S

Screw, LBD THD FRM M5 x 0.8 x 16
(Superseded to KH-25-086-405-S)

$2.49

$

In Stock, only 1 left!

0

15

Cub Cadet KH-24-079-22-S

Linkage, Choke

$6.99

$

In Stock, only 1 left!

0

16

Cub Cadet KH-24-112-27-S

Spacer, Control Assembly

$3.99

$

In Stock, Qty 7

0

17

Cub Cadet KH-24-090-47-S

Lever, Throttle Actuator

$2.99

$

In Stock, only 4 left!

0

18

Cub Cadet KH-24-090-13

Lever, Throttle Control

$

$

Not available

19

Cub Cadet KH-24-468-01

Washer, Flat 5.5 MM

$

$

Not available

20

Cub Cadet KH-M-545020-S

Screw, FLG THD FRM M5 x 0.8 x 20
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 17

0

21

Cub Cadet KH-41-468-03

Washer, Spring 1/4"

$

$

Not available

22

Cub Cadet KH-24-090-05

Lever, Choke

$

$

Not available

23

Cub Cadet KH-M-403025

Screw, Slt Hd Cap M4 x 0.7 x 25

$

$

Not available

24

Cub Cadet KH-M-446030-S

Nut, M4 x 0.7

$2.49

$

In Stock, Qty 9

0

25

Cub Cadet KH-24-468-20-S

Washer, Flat 5 MM

$2.49

$

In Stock, only 2 left!

0

26

Cub Cadet KH-24-089-55-S

Spring, Governor

$2.49

$

In Stock, Qty 10

0

27

Cub Cadet KH-24-089-18

Spring, Governor

$

$

Not available
