Z-Force 44 (17AF3AGL010) - Cub Cadet 44" Z-Force Zero-Turn Mower, Kohler SV810 Ignition & Electrical Parts Diagram

44" Z-Force Zero-Turn Mower, Kohler

SV810 Ignition & Electrical Parts Diagram

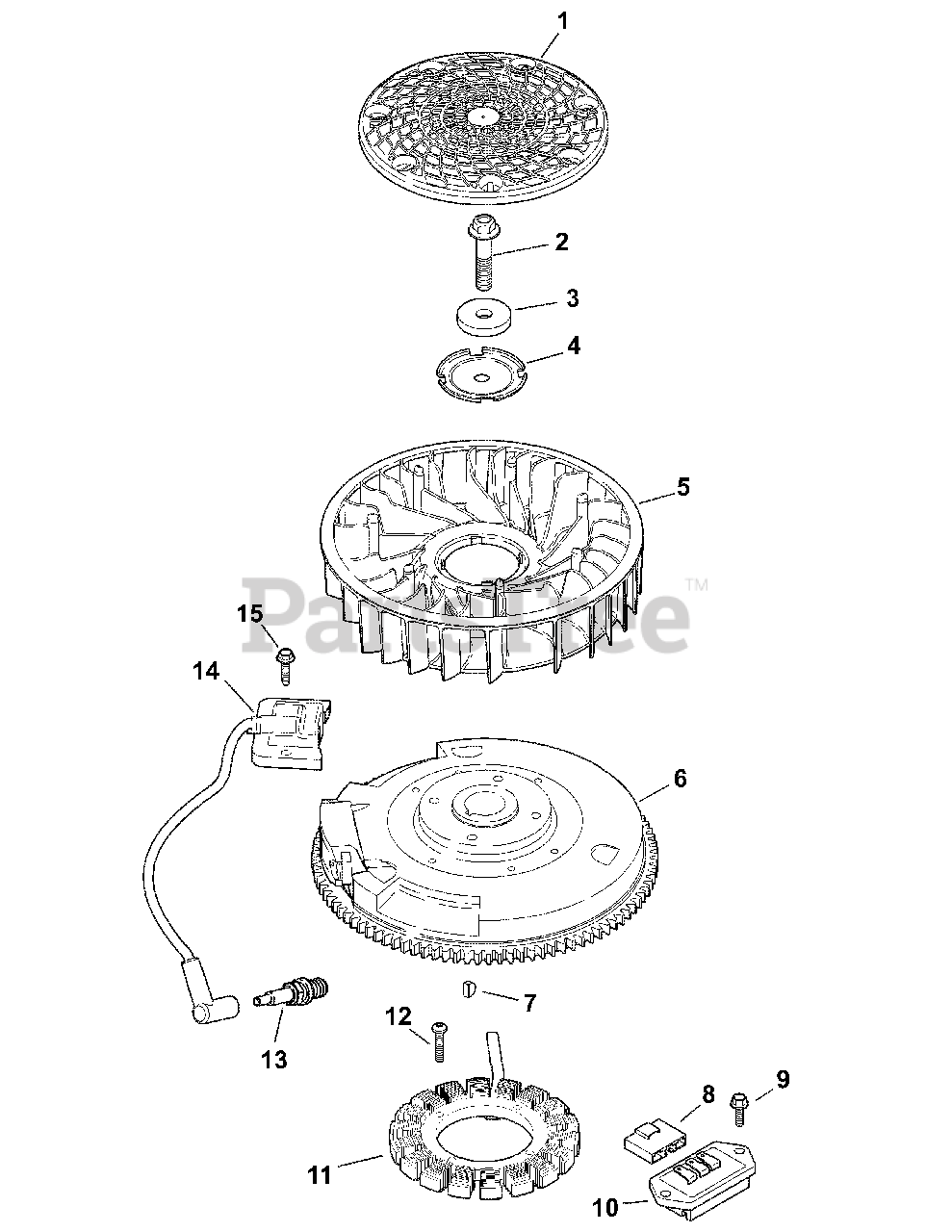

  • Title

1

Cub Cadet KH-32-162-03-S

Screen, Grass

$4.99

$

In Stock, Qty 10

0

2

Cub Cadet KH-12-086-14

Screw, FLG M10X1.5X45
(Superseded to KH-25-086-361-S)

$3.49

$

In Stock, only 1 left!

0

3

Cub Cadet KH-12-468-03

Washer, Flat 13/32"

$

$

Not available

4

Cub Cadet KH-20-146-05-S

Plate, Fan Mounting

$2.99

$

In Stock, only 2 left!

0

5

Cub Cadet KH-32-157-01-S

Fan
(Superseded to KH-32-755-38-S)

$21.99

$

In Stock, Qty 8

0

6

Cub Cadet KH-32-025-16-S

Flywheel
(Superseded to KH-32-025-22-S)

$346.99

$

In Stock, only 4 left!

0

7

Cub Cadet KH-X-42-15

Key, 3/16" x 5/8"

$

$

Not available

8

Cub Cadet KH-236602-S

Connector (3 Contact)
(Superseded to KH-25-155-41-S)

$7.99

$

In Stock, Qty 11

0

9

Cub Cadet KH-M-545016-S

Screw, Hvy Flg M5 x 0.8 x 16
(Superseded to KH-25-086-398-S)

$3.99

$

In Stock, Qty 13

0

10

Cub Cadet KH-41-403-10-S

Rectifier-Regulator
(Superseded to KH-25-403-37-S)

$105.99

$

In Stock, Qty 6

0

11

Cub Cadet KH-237878

Kit, 15 Amp Stator (Includes KH-25 452 01-S)

$149.99

$

In Stock, Qty 12

0

12

Cub Cadet KH-20-086-22-S

Screw, TRX HD Drive Fastener
(Superseded to KH-25-086-402-S)

$2.49

$

In Stock, only 2 left!

0

13

Cub Cadet KH-25-132-12-S

Plug, Spark

$20.99

$

Usually ships in 2-5 days

0

14

Cub Cadet KH-24-584-45-S

Module, Ignition (CDI Fixed)
(Superseded to KH-24-584-201-S)

$102.99

$

Usually ships in 3-6 days

0

15

Cub Cadet KH-M-545020-S

Screw, FLG THD FRM M5 x 0.8 x 20
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 17

0

Cub Cadet KH-25-454-03-S

Tie, Wire

Note: not shown

$2.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-32-176-16-S

Harness, Wiring
(Superseded to KH-32-176-14-S)

Note: not shown

$

$

Not available

Cub Cadet KH-25-452-01-S

Terminal

Note: not shown

$5.49

$

Usually ships in 2-5 days

0
