Z-Force 44 (17AF3AGL010) - Cub Cadet 44" Z-Force Zero-Turn Mower, Kohler SV810 Oil Pan & Lubrication Parts Diagram

44" Z-Force Zero-Turn Mower, Kohler

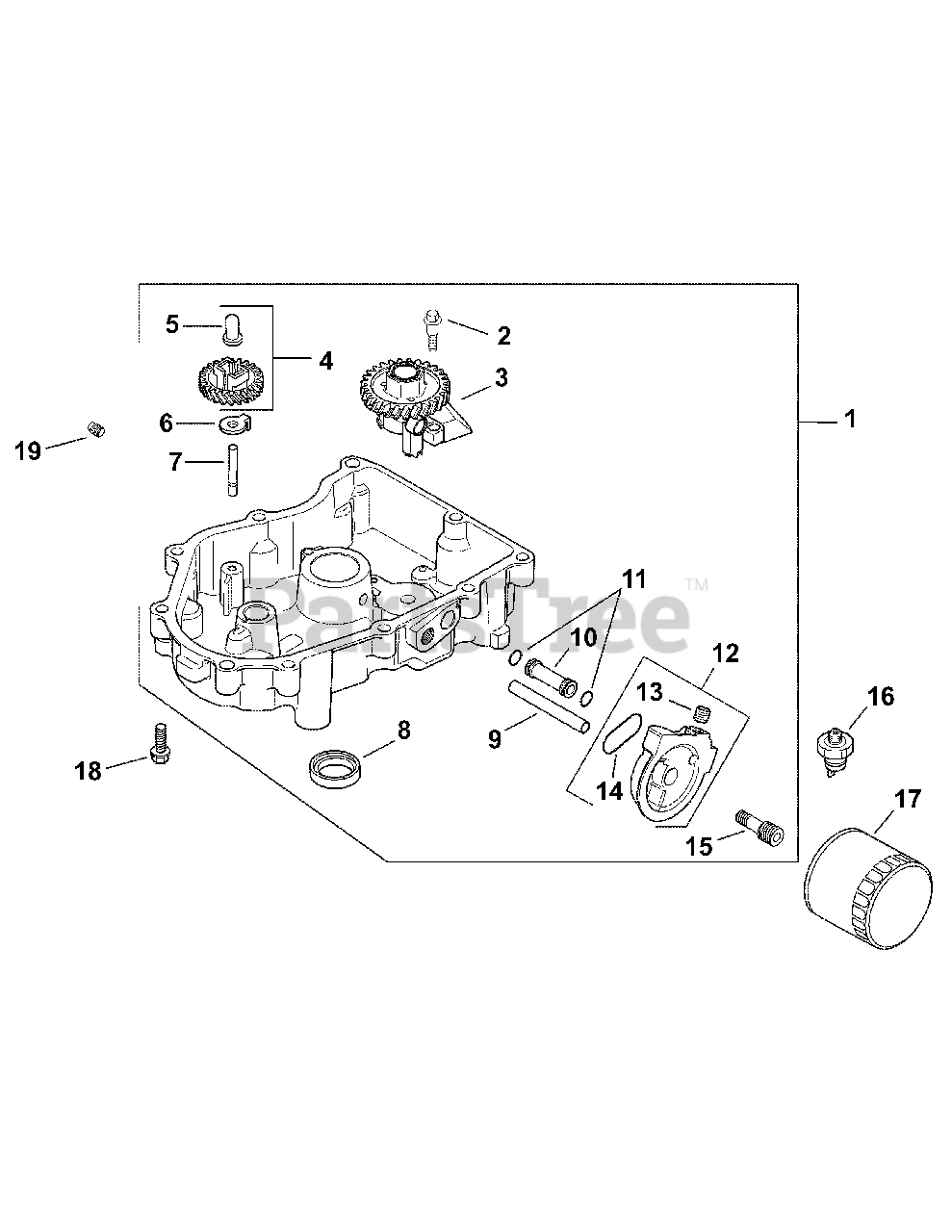

SV810 Oil Pan & Lubrication Parts Diagram

  • Title

1

Cub Cadet KH-32-199-04-S

Pan, Oil Assembly (Includes 2-16)
(Superseded to KH-32-199-20-S)

$202.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KH-32-086-01-S

Screw, SHD THD FRM M6 x 1.0 x 26.5

$3.49

$

In Stock, only 1 left!

0

3

Cub Cadet KH-32-393-10-S

Pump Assembly, Oil

$

$

Not available

4

Cub Cadet KH-24-043-12

Kit, Governor Gear w/ Pin (Includes 5)

$

$

Not available

5

Cub Cadet KH-12-380-01

Pin, Governor Regulating

$

$

Not available

6

Cub Cadet KH-24-448-02-S

Tab, Locking

$2.49

$

In Stock, only 1 left!

0

7

Cub Cadet KH-12-144-02

Shaft, Governor Gear

$

$

Not available

8

Cub Cadet KH-25-032-06-S

Seal, Oil

$13.99

$

In Stock, Qty 5

0

9

Cub Cadet KH-32-123-01-S

Tube, Oil Feed-Filter to Pan

$2.49

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-32-123-03-S

Tube, Oil Feed-Pan to Filter

$

$

Not available

11

Cub Cadet KH-24-153-01

O-Ring, Oil Pick-Up

$

$

Not available

12

Cub Cadet KH-32-029-16-S

Kit, Adaptor Oil Filter (Includes 13, 14)
(Superseded to KH-32-029-10-S)

$

$

Not available

13

Cub Cadet KH-25-139-60-S

Plug, CTSK 1/8"

$3.49

$

In Stock, only 2 left!

0

14

Cub Cadet KH-32-153-04-S

O-Ring, Oil Filter Adaptor

$3.49

$

In Stock, only 2 left!

0

15

Cub Cadet KH-32-136-03-S

Nipple, Oil Filter

$10.99

$

Usually ships in 2-5 days

0

16

Cub Cadet KH-25-099-27-S

Switch, Oil Pressure

$15.99

$

In Stock, Qty 7

0

17

Cub Cadet KH-25-050-34-S

Filter, Oil
(Superseded to KH-52-050-02-S)

$14.99

$

In Stock, Qty 20+

0

18

Cub Cadet KH-24-086-17-S

Screw, Flg M8 x 1.25 x 45

$3.49

$

In Stock, Qty 20+

0

19

Cub Cadet KH-25-139-57-S

Plug, Sq Hd Pipe 3/8"

$2.49

$

In Stock, Qty 5

0
