Z-Force 44 (17AH3AGL710) - Cub Cadet 44" Z-Force Zero-Turn Mower, Kohler Electrical Assembly Kohler Parts Diagram

44" Z-Force Zero-Turn Mower, Kohler

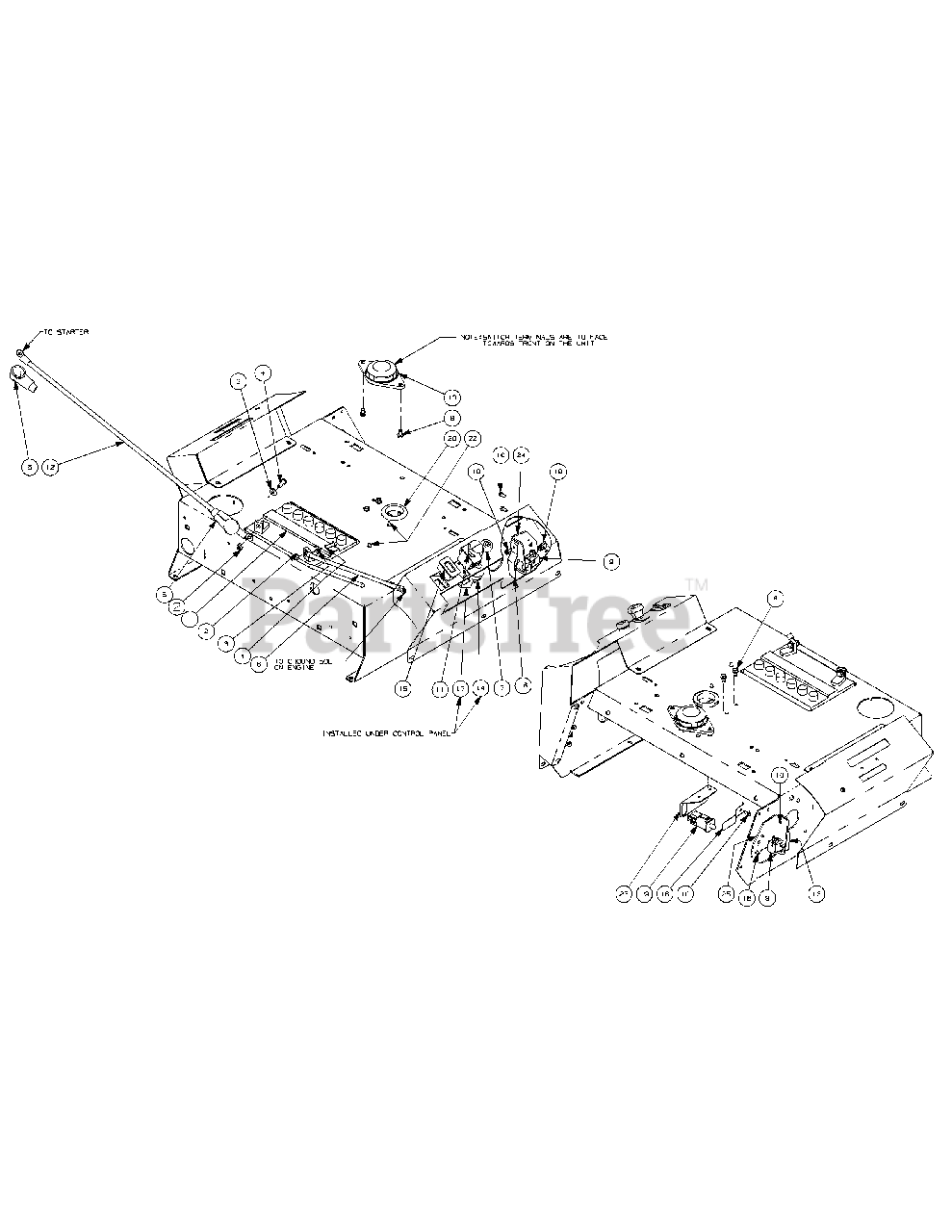

Electrical Assembly Kohler Parts Diagram

  • Title

1

Cub Cadet 00012032

Battery, 12V 225CCA 30Min
(Superseded to 925-1707D)

$

$

Not available

2

Cub Cadet 00012152

Lock Nut, Nylon Insert, 1/4-20

$3.99

$

In Stock, only 1 left!

0

3

Cub Cadet 00012154

Flat Washer, 1/4
(Superseded to 936-3020)

$

$

Not available

4

Cub Cadet 00013131

Hex Cap Screw, 1/4-20 x .75

$6.49

$

In Stock, only 1 left!

0

5

Cub Cadet 00013258

Boot, 1" OD Rubber Battery-PST Red

$9.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 00024233

Cable, Battery, Black, 17"

$36.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 00032097

Nut, 5/8-32, w/Cap
(Superseded to 00032097P)

$

$

Not available

8

Cub Cadet 01000628

Self Tapping Screw, 1/4-20 x 1/2
(Superseded to 710-0599)

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 01001717

Normally Closed Safety Switch
(Superseded to 925-3166)

$15.99

$

In Stock, Qty 20+

0

10

Cub Cadet 01001864

Self Tapping Screw, 10-32 x 1/2
(Superseded to 1767754)

$

$

Not available

11

Cub Cadet 01002111

Electric PTO Switch
(Superseded to 925-1716A)

$68.99

$

In Stock, Qty 20+

0

12

Cub Cadet 01002252

Cable, Battery, Red, 24"

$35.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 01003277

Normally Closed Seat Switch

$36.99

$

In Stock, only 3 left!

0

14

Cub Cadet 01003581

Switch, Ignition, 6 Pin
(Superseded to 01003581P)

$65.99

$

In Stock, Qty 20+

0

14

Cub Cadet 725-1341B

Key, Ignition

Note: not shown

$9.99

$

In Stock, only 3 left!

0

15

Cub Cadet 01007597

Hour Meter includes:
(Superseded to 925-05120A)

$88.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 02004259

Clip

Note: not shown

$6.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 01008042

Safety Switch Retainer Spring
(Superseded to 732-04200)

$9.99

$

In Stock, Qty 9

0

17

Cub Cadet 01009905

PTO Switch Bracket

$25.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 01009931

U-nut, 10-24
(Superseded to 712-05009)

$

$

Not available

19

Cub Cadet 02000024

Switch, Safety N.O./N.C.
(Superseded to 925-3164A)

$37.99

$

In Stock, Qty 16

0

20

Cub Cadet 02001134

Gromment, 1.5 ID x 2.13 OD

$

$

Not available

22

Cub Cadet 02003038

Electrical Conduit Clip, 3/8

$

$

Not available

23

Cub Cadet 02003567

Brake Switch Mounting Bracket
(Superseded to 02003596-0637)

$

$

Not available

24

Cub Cadet 02003926

Bracket, Safety Switch, Right Hand

$33.99

$

In Stock, only 1 left!

0

25

Cub Cadet 02003927

Bracket, Safety Switch, Left Hand

$21.99

$

In Stock, only 1 left!

0

Cub Cadet 02002990

Harness Assembly

Note: not shown

$254.99

$

Usually ships in 3-6 days

0
