Z-Force 44 (53AA5B6L710) - Cub Cadet 44" Z-Force Zero-Turn Mower, Kohler Frame Assembly Parts Diagram

44" Z-Force Zero-Turn Mower, Kohler

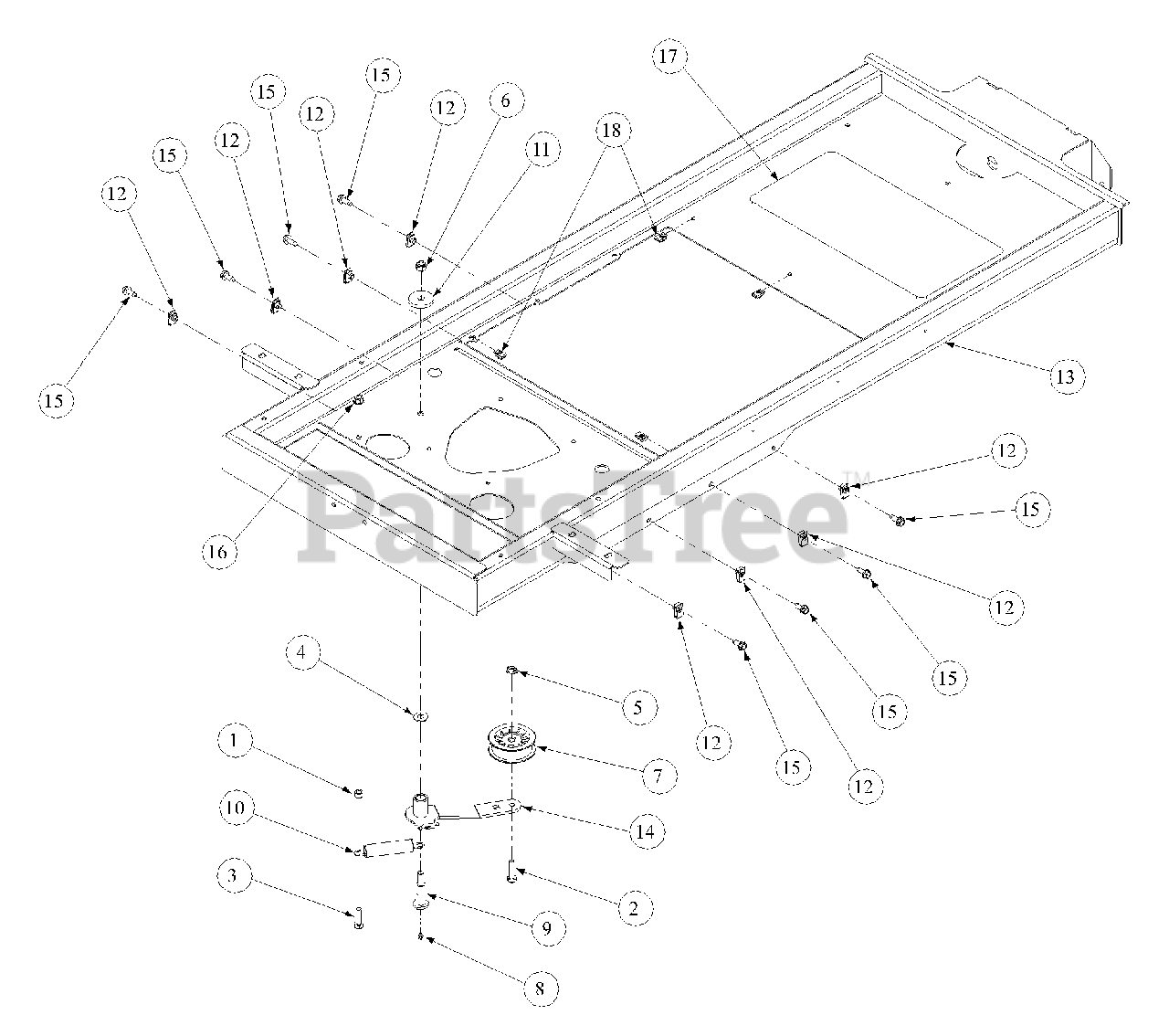

Frame Assembly Parts Diagram

  • Title

1

Cub Cadet 00012166

Hex Nut, 5/16-18

$

$

Not available

2

Cub Cadet 00011438

Hex Cap Screw, 3/8-16 x 1-1/2
(Superseded to 710-06021)

$3.99

$

In Stock, only 4 left!

0

3

Cub Cadet 00013116

Hex Cap Screw, 5/16-18 x 1-1/4

$5.99

$

In Stock, only 1 left!

0

4

Cub Cadet 00006168

Flat Washer, 3/8 zinc
(Superseded to 936-3015)

$4.49

$

In Stock, Qty 14

0

5

Cub Cadet 00022560

Hex Nut, 3/8-16 Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 00027279

Nylock Nut, 7/16-14
(Superseded to 712-0290)

$4.99

$

In Stock, Qty 8

0

7

Cub Cadet 00030782

Flat Idler Pully w/ adaptor
(Superseded to 02004558)

$24.99

$

In Stock, only 2 left!

0

8

Cub Cadet 00060078

Grease Fitting, 1/4-28 x 3/16
(Superseded to 737-04345)

$4.99

$

In Stock, Qty 7

0

9

Cub Cadet 01000505

Shoulder Bolt
(Superseded to 738-05004)

$23.99

$

In Stock, Qty 5

0

10

Cub Cadet 01002874

Extension Spring, .865 OD x 4.68 lg

$12.99

$

In Stock, Qty 12

0

11

Cub Cadet 01003269

Flat Washer, 7/16 ID x 1.75 OD
(Superseded to 736-3082A)

$10.99

$

In Stock, only 3 left!

0

12

Cub Cadet 01003563

U-Nut, 5/16-18
(Superseded to 926-0211)

$4.99

$

In Stock, only 3 left!

0

13

Cub Cadet 02000615

Frame Assembly Weldment

$

$

Not available

14

Cub Cadet 01008399

Idler Arm Assembly

$115.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 01008764

Hex Washer Screw 5/16-18 x .750

$

$

Not available

16

Cub Cadet 01000635

Nut, 5/16-18, Hexflange Lock
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 01006528

Abrasive Foot Pad

$

$

Not available

18

Cub Cadet 01008539

U-Nut, 1/4-20
(Superseded to 726-3054)

$4.99

$

In Stock, only 2 left!

0
