Z-Force 44 (53AA5B6L710) - Cub Cadet 44" Z-Force Zero-Turn Mower, Kohler Steering Assembly Parts Diagram

44" Z-Force Zero-Turn Mower, Kohler

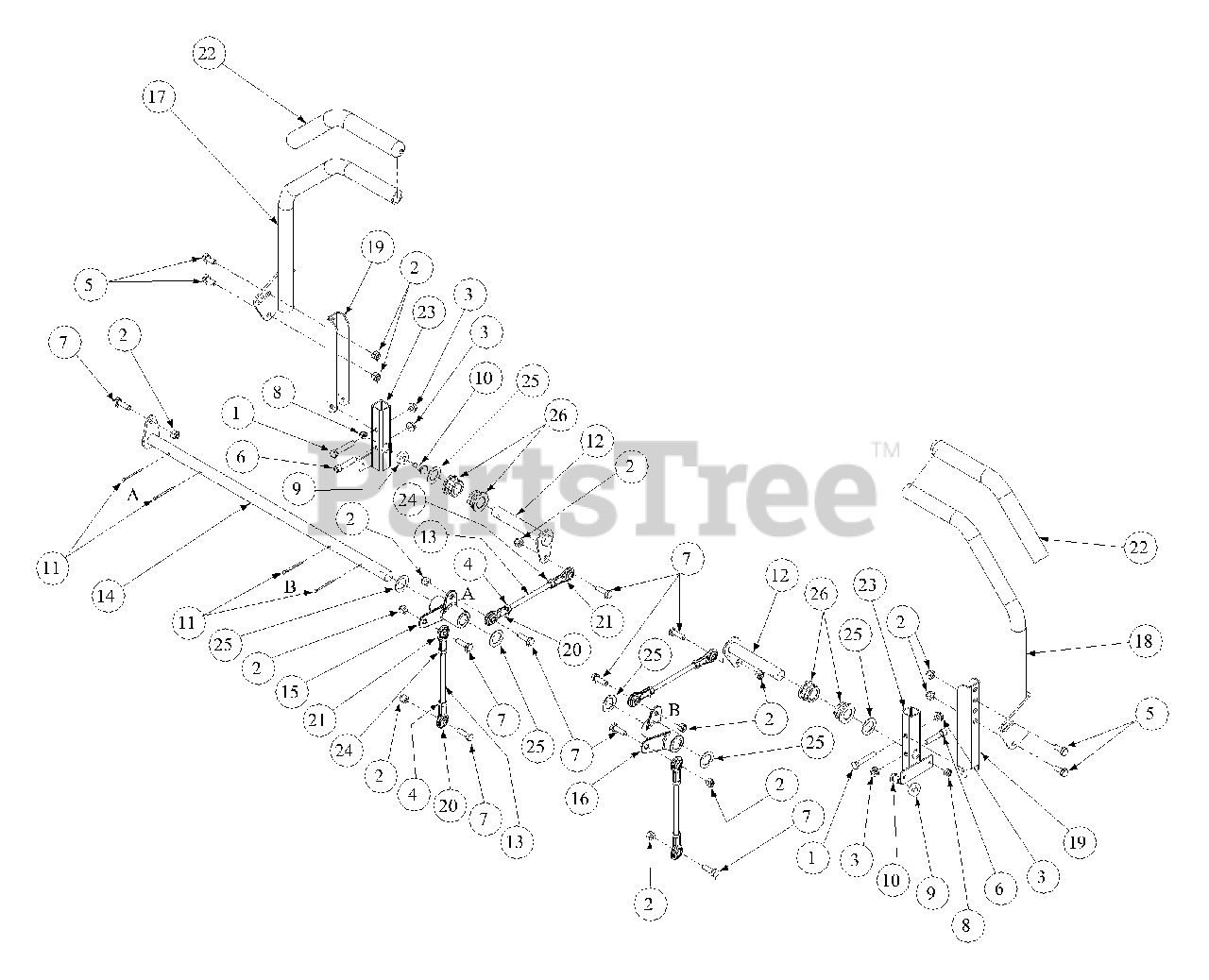

Steering Assembly Parts Diagram

  • Title

1

Cub Cadet 00006129

Hex Cap Screw, 5/16-18 x 1-3/4

$7.49

$

Usually ships in 3-6 days

0

2

Cub Cadet 00012165

Nut, 5/16-18, Nylock

$4.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 01000635

Nut, 5/16-18, Lock
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 00012167

Hex Nut, 5/16-24
(Superseded to 912-3057)

$7.49

$

In Stock, Qty 8

0

5

Cub Cadet 00012179

Hex Cap Screw, 5/16-18 x 3/4

$3.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 01008600

Capscrew, 5/16-18 x 1.50, Socket Head
(Superseded to 710-3250)

$

$

Not available

7

Cub Cadet 00013092

Hex Cap Screw, 5/16-18 x 1.0
(Superseded to 710-0376)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 00014081

Nut, 1/4-28, SS, Nylon Insert
(Superseded to 712-04177)

$7.49

$

In Stock, only 4 left!

0

9

Cub Cadet 00071691

Control Rod Spacer

$12.99

$

In Stock, only 2 left!

0

10

Cub Cadet 01001919

Shoulder Screw, 1/4-28
(Superseded to 738-0826)

$13.99

$

In Stock, only 1 left!

0

11

Cub Cadet 00003107

Cotter Pin, .125 Dia. x 1.0
(Superseded to 914-0115)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 01008433

Steering Input Shaft Assembly
(Superseded to 01008433P)

$81.99

$

In Stock, only 1 left!

0

13

Cub Cadet 01008149

Steering Link Rod
(Superseded to 01008149P)

$

$

Not available

14

Cub Cadet 01008432

Bellcrank Steering Shaft Assembly
(Superseded to 01008432P)

$118.99

$

In Stock, only 4 left!

0

15

Cub Cadet 01008840

Steering Bellcrank Assembly Left Hand

$83.99

$

In Stock, Qty 9

0

16

Cub Cadet 01008841

Steering Bellcrank Assembly Right Hand

$80.99

$

In Stock, only 3 left!

0

17

Cub Cadet 01008425

Steering Handle Assembly Left Hand

$

$

Not available

18

Cub Cadet 01008426

Steering Handle Assembly Right Hand

$

$

Not available

19

Cub Cadet 01008165

Steering Pivot Bracket
(Superseded to 01008165P)

$

$

Not available

20

Cub Cadet 01008410

Rod End, 5/16, Right Hand
(Superseded to 723-04039)

$60.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 01008551

Rod End, 5/16, Left Hand
(Superseded to 01008551P)

$53.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 01008552

Lap Bar Grip
(Superseded to 01008552P)

$24.99

$

In Stock, only 1 left!

0

23

Cub Cadet 01008458

Pivot Bracket Weldment

$75.99

$

In Stock, only 3 left!

0

24

Cub Cadet 01008576

Hex Nut, 5/16-24, Left Hand
(Superseded to 01008576P)

$10.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 736-0287

Flat Washer, .793 ID x 1.24 OD x .060

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 741-0598

Hex Flange Bearing, .752 ID
(Superseded to 941-0598)

$13.99

$

In Stock, Qty 20+

0
