Z-Force 44 (53AA5B6L712) - Cub Cadet 44" Z-Force Zero-Turn Mower, Kohler Lift Assembly Parts Diagram

44" Z-Force Zero-Turn Mower, Kohler

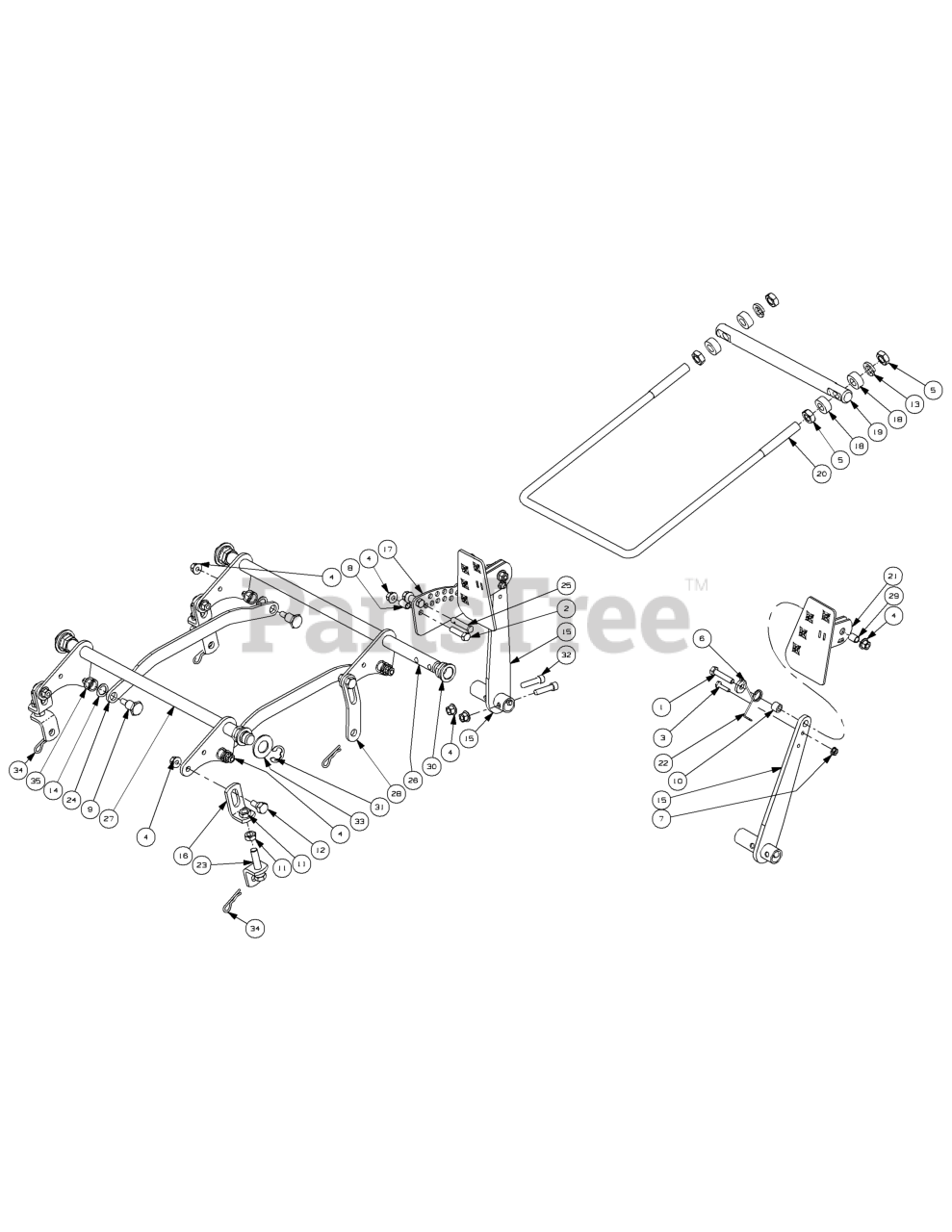

Lift Assembly Parts Diagram

  • Title

1

Cub Cadet 00008495

Capscrew, 3/8-16 x 1-3/4

Note:

$7.49

$

In Stock, Qty 6

0

2

Cub Cadet 00011438

Hex Cap Screw, 3/8-16 x 1-1/2
(Superseded to 710-06021)

Note:

$3.99

$

In Stock, Qty 10

0

3

Cub Cadet 00013416

Hex Cap Screw, 1/4-20 x 1.00
(Superseded to 710-0597)

Note:

$4.49

$

In Stock, Qty 11

0

4

Cub Cadet 00022560

Nut, 3/8-16, Hex Flange Lock
(Superseded to 712-05007)

Note:

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 00035632

Jam Nut, 5/8-11
(Superseded to 912-3015)

Note:

$4.99

$

In Stock, Qty 19

0

6

Cub Cadet 00083192

Idler Washer
(Superseded to 736-0258)

Note:

$4.99

$

In Stock, Qty 20+

0

7

Cub Cadet 01002766

Nut, 1/4-20, Hex Flange Lock Nut
(Superseded to 912-3027)

Note:

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 01003468

Spacer, .375 x .50 x .75 Lg

Note:

$

$

Not available

9

Cub Cadet 01003536

Shoulder Screw, 0.625 OD x .830 Lg.
(Superseded to 738-05007)

Note:

$9.49

$

In Stock, Qty 20+

0

10

Cub Cadet 01007312

Spacer, .625 OD x .385 ID x 1/2

Note:

$24.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 01008658

Jam Nut, 1/2-20
(Superseded to 712-3029)

Note:

$7.49

$

In Stock, Qty 13

0

12

Cub Cadet 02000393

Shoulder Screw, 3/8-16, .56 x .27
(Superseded to 738-05008)

Note:

$8.99

$

In Stock, Qty 19

0

13

Cub Cadet 02000671

Lock Washer, 5/8
(Superseded to 936-0158)

Note:

$4.99

$

In Stock, Qty 11

0

14

Cub Cadet 02001891

Washer, 1.00 OD x .625 ID x .048

Note:

$7.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 02002377

Foot Lift Pivot Assembly
(Superseded to 02002374)

Note:

$110.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 02002382

Deck Lift Bracket

Note:

$14.99

$

In Stock, Qty 9

0

17

Cub Cadet 02002612

Index Plate

Note:

$

$

Not available

18

Cub Cadet 02002875

Spacer, .635 ID x 1.188 OD x .500

Note:

$

$

Not available

19

Cub Cadet 02002876

Trail Link Pivot Rod

Note:

$

$

Not available

20

Cub Cadet 02002879

Front Lift Rod

Note:

$40.99

$

In Stock, Qty 8

0

21

Cub Cadet 02002881

Foot Pedal Assembly
(Superseded to 02002880-0637)

Note:

$

$

Not available

22

Cub Cadet 02002882

Foot Lift Torsion Spring

Note:

$10.99

$

In Stock, only 1 left!

0

23

Cub Cadet 02002890

Lower Lift Bracket Assembly

Note:

$38.99

$

In Stock, only 2 left!

0

24

Cub Cadet 02002893

Lift Link

Note:

$27.99

$

In Stock, only 1 left!

0

25

Cub Cadet 02002907

Clevis Pin, .375 x 1.89 x 2.125
(Superseded to 711-06098)

Note:

$4.49

$

In Stock, only 2 left!

0

26

Cub Cadet 02002915

Front Shaft Assembly

Note:

$

$

Not available

27

Cub Cadet 02002916

Rear Shaft Assembly

Note:

$121.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 02002979

Link Plate

Note:

$24.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 02003436

Spacer, .380 ID x .500 OD x .605

Note:

$7.49

$

Usually ships in 3-6 days

0

30

Cub Cadet 02003685

Hex Flange Bearing, .875 ID

Note:

$9.49

$

In Stock, Qty 7

0

31

Cub Cadet 02003716

E Clip, .875 Dia.
(Superseded to 716-0136)

Note:

$9.49

$

In Stock, Qty 10

0

32

Cub Cadet 02003717

Sockethead Capscrew, 3/8-16 x 1.50
(Superseded to 710-06024)

Note:

$4.49

$

Usually ships in 3-6 days

0

33

Cub Cadet 02003720

Flat Washer, .94 x 1.75 x .11
(Superseded to 736-05011)

Note:

$

$

Not available

34

Cub Cadet 02000673

Hair Pin
(Superseded to 914-0209)

Note:

$3.99

$

In Stock, only 1 left!

0

35

Cub Cadet 750-0547

Spacer, .628 ID x .875 OD x .500

Note:

$5.99

$

In Stock, only 1 left!

0
