Z-Force 48 (17AF3AGV009) - Cub Cadet 48" Z-Force Zero-Turn Mower, Kohler Seat Assembly Parts Diagram

48" Z-Force Zero-Turn Mower, Kohler

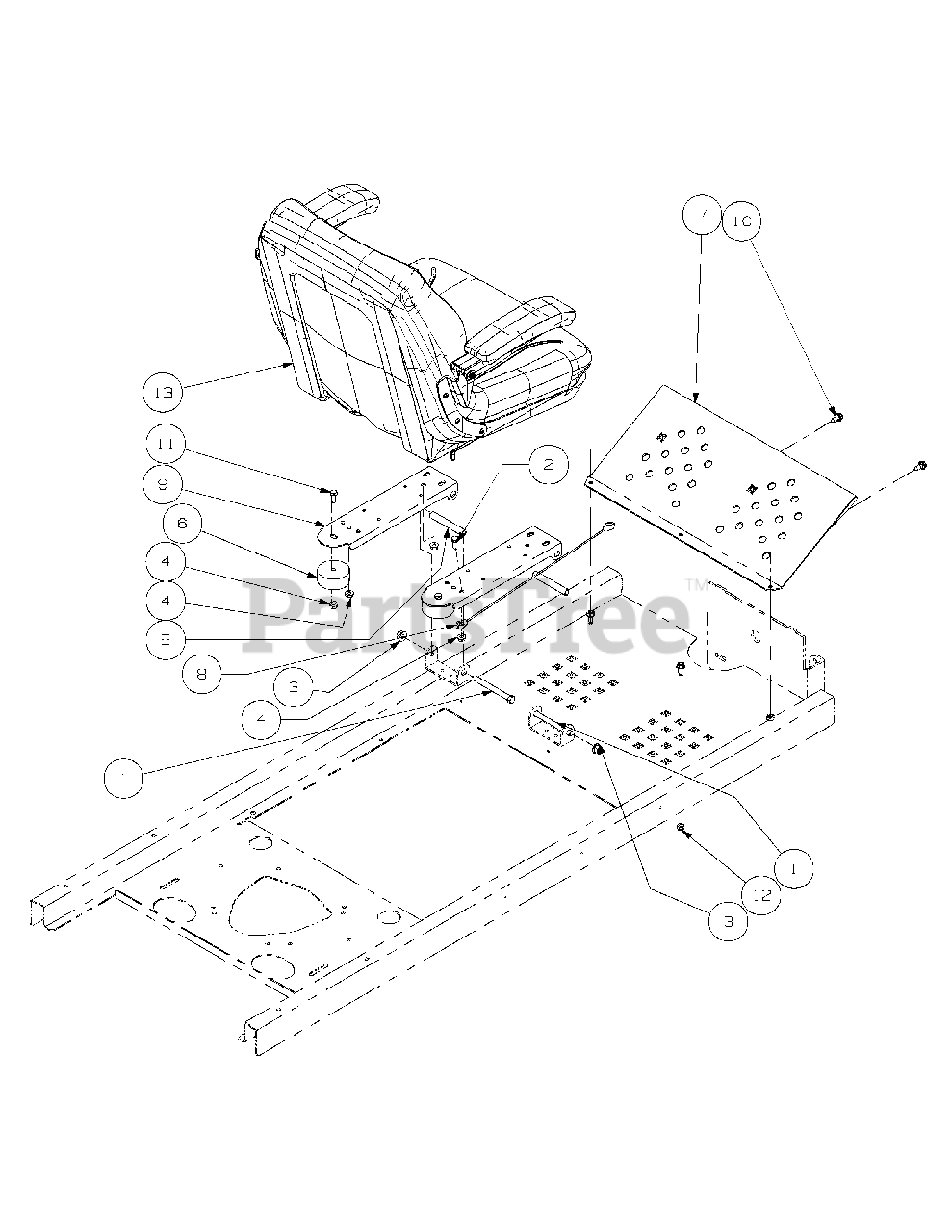

Seat Assembly Parts Diagram

  • Title

1

Cub Cadet 00011925

Hex Cap Screw, 3/8-16, 4.00
(Superseded to 710-0411)

$8.99

$

In Stock, Qty 20+

0

2

Cub Cadet 00013406

Hex Cap Screw, 5/16-18 x 3/4
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 00022560

Flange Lock Hex Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 01000635

Nut, 5/16-18, Hex Flange Lock
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 01009872

Spacer, .370 ID x .500 OD x 3.45

$17.99

$

In Stock, only 2 left!

0

6

Cub Cadet 02002952

Bumper, 2.50 OD x 1.13 Long

$49.99

$

In Stock, only 2 left!

0

7

Cub Cadet 02002960

Foot Rest Bracket
(Superseded to 02002960-0637)

Variations

Cub Cadet 02002960-0637

BRACKET-FOOT REST - POWDER BLACK (0637)

$

$

Not available

$

$

8

Cub Cadet 02004062

Lift Cable
(Superseded to 02004062P)

$20.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-06691

Seat Mounting Bracket

Variations

Cub Cadet 703-06691-0637

Seat Mounting Bracket - POWDER BLACK (0637)

$15.99

$

In Stock, only 1 left!

0

$13.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-04484

Self Tapping Screw 5/16-18 x .750

Note: replaces 01008620

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3008

Hex Cap Screw, 5/16-18 x .75

Note: replaces 00013406

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 712-0429

Nylock Nut, 5/16-18

Note: replaces 00012165

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 757-04070

Seat
(Superseded to 757-04115)

$

$

Not available

13

Cub Cadet 02002255

Armrest Kit

Note: not shown

$298.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-3256

Screw, Button Head 1/4-20 x .50

Note: not shown

$11.99

$

Usually ships in 3-6 days

0
