Z-Force 48 (17BF3AGV010) - Cub Cadet 48" Z-Force Zero-Turn Mower, Kohler (2010) Kohler SV715-3025 Fuel System Parts Diagram

48" Z-Force Zero-Turn Mower, Kohler

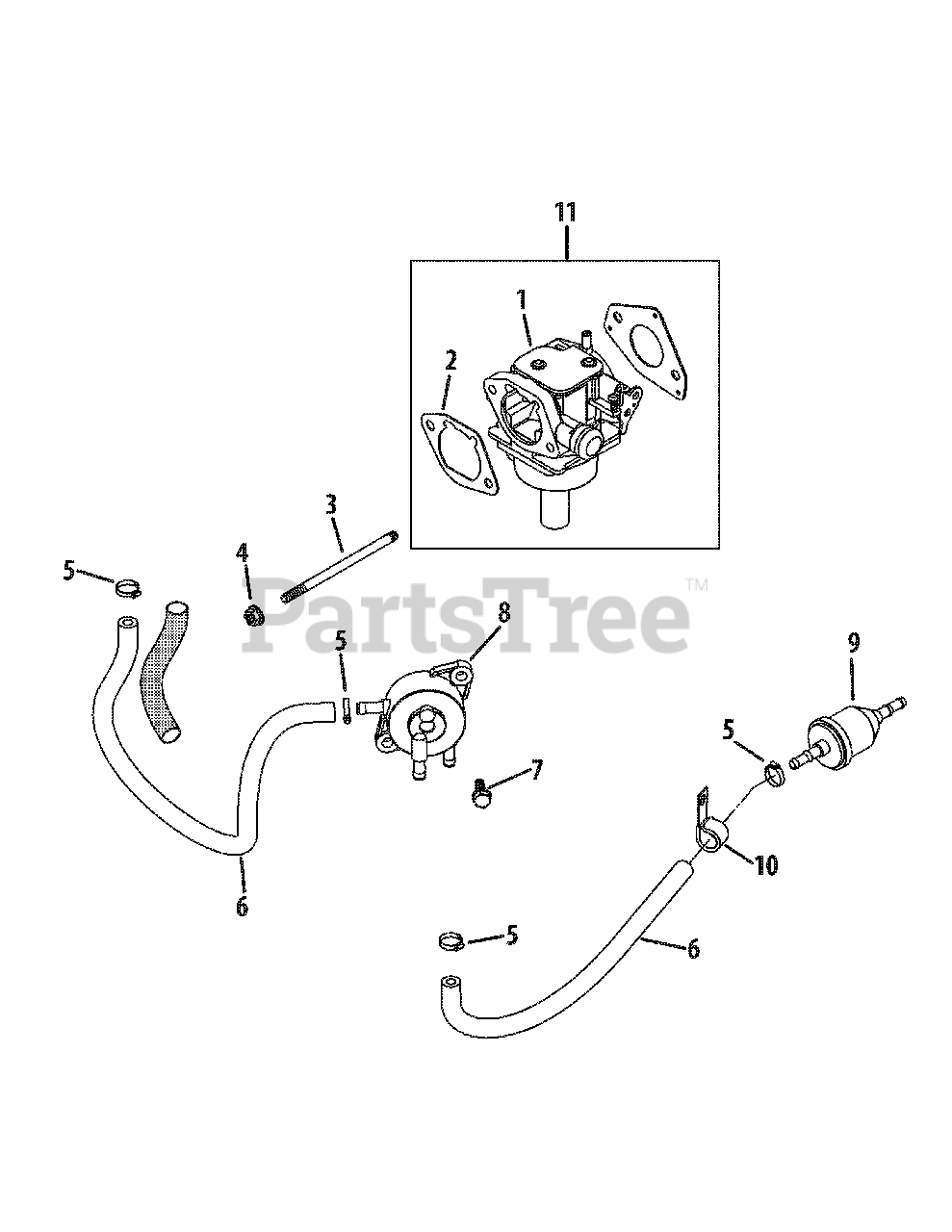

Kohler SV715-3025 Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-24-041-52-S

Carburetor Gasket
(Superseded to KH-24-041-91-S)

$5.49

$

Usually ships in 3-6 days

0

2

Cub Cadet KH-24-041-14

Air Cleaner Base Gasket

$

$

Not available

3

Cub Cadet KH-M-629105-S

Stud, M6 x 1.0 x 106
(Superseded to KH-25-072-25-S)

$14.99

$

In Stock, only 2 left!

0

4

Cub Cadet KH-M-641060-S

Flange Nut, M6 x 1.0

$4.49

$

In Stock, Qty 14

0

5

Cub Cadet KH-25-237-14-S

Hose Clamp, 1.2
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, Qty 6

0

6

Cub Cadet KH-25-111-34-S

Fuel Line
(Superseded to KH-25-111-81-S)

$17.99

$

In Stock, Qty 5

0

7

Cub Cadet KH-24-086-12

Tap Screw, M6 x 1.7 x 18

$

$

Not available

8

Cub Cadet KH-24-393-16

Fuel Pump

$

$

Not available

9

Cub Cadet KH-25-050-22-S1

Fuel Filter

$9.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-47-154-01-S

Cable Clip

$4.99

$

In Stock, Qty 7

0

11

Cub Cadet KH-32-853-11-S

Carburetor Kit, 19mm KEIHIN (Inc.#2 & 3)

$351.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-757-36-S

Choke Repair Service Kit (Inc. #2 & 3)

Note: Not shown

$116.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-757-38-S

Gasket Repair Service Kit (Inc. #2 & 3)

Note: Not shown

$32.99

$

In Stock, Qty 10

0

Cub Cadet KH-24-757-44-S

Float Kit (Inc. #2 & 3)

Note: Not shown

$93.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-757-45-S

Solenoid Valve Repair Kit (Inc. #2 & 3)

Note: Not shown

$246.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-757-46-S

Repair Overhaul Kit (Inc. #2 & 3)

Note: Not shown

$137.99

$

In Stock, only 1 left!

0
