Z-Force 48 (17BF3AGV010) - Cub Cadet 48" Z-Force Zero-Turn Mower, Kohler (2010) Kohler SV715-3025 Ignition & Electrical Parts Diagram

48" Z-Force Zero-Turn Mower, Kohler

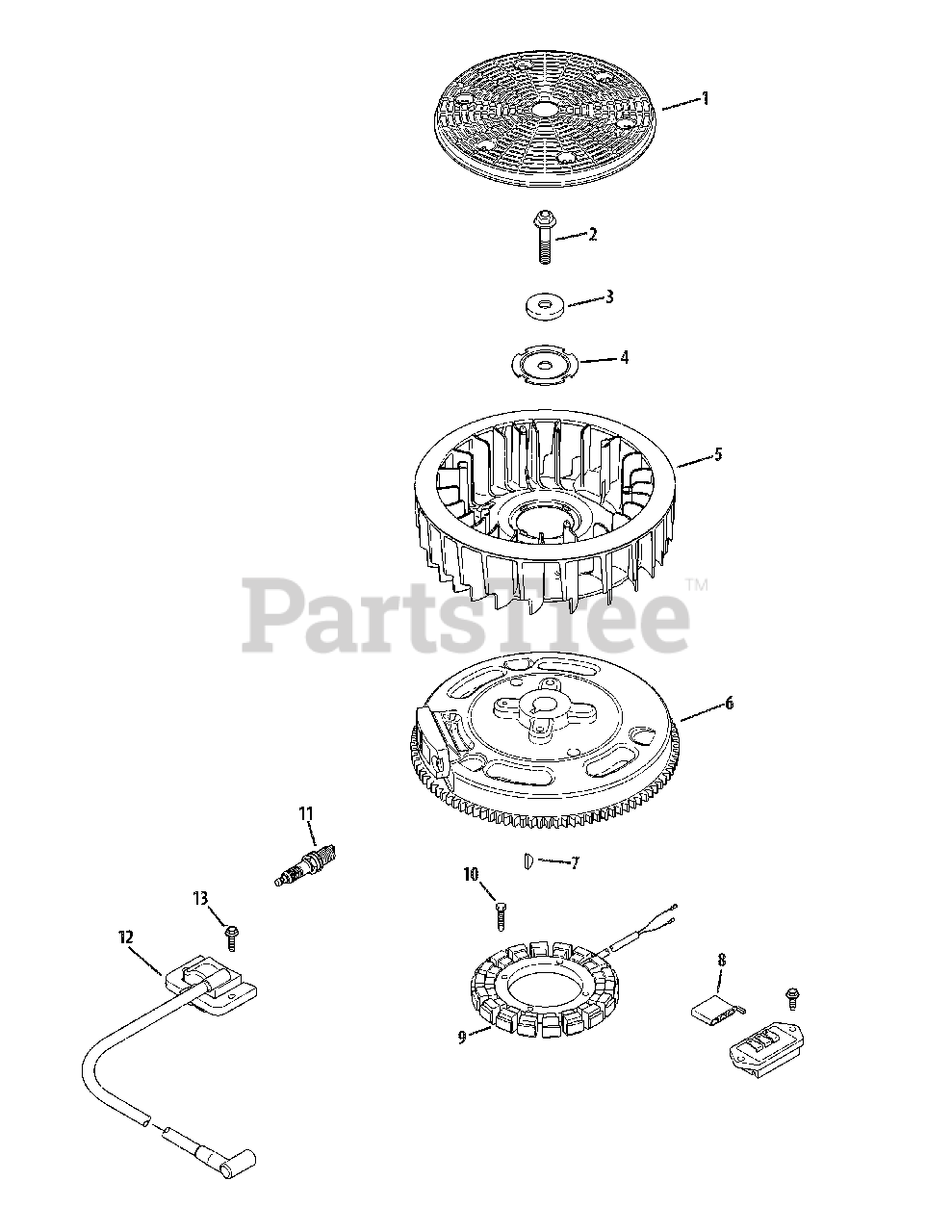

Kohler SV715-3025 Ignition & Electrical Parts Diagram

  • Title

1

Cub Cadet KH-32-162-03-S

Grass Screen

$4.99

$

In Stock, Qty 10

0

2

Cub Cadet KH-12-086-14

Flange Screw, M10 X 1.5 X 45
(Superseded to KH-25-086-361-S)

$3.49

$

In Stock, only 1 left!

0

3

Cub Cadet KH-12-468-03

Flat Washer, 13.32

$

$

Not available

4

Cub Cadet KH-20-146-05-S

Fan Mounting Plate

$2.99

$

In Stock, only 1 left!

0

5

Cub Cadet KH-32-157-01-S

15 Amp Stator Kit (Inc. KH-25-452-01-S)
(Superseded to KH-32-755-38-S)

$21.99

$

In Stock, Qty 7

0

6

Cub Cadet KH-32-025-16-S

Flywheel Assembly
(Superseded to KH-32-025-22-S)

$346.99

$

In Stock, only 4 left!

0

7

Cub Cadet KH-X-42-15

Key, 3.16 X 5.8

$

$

Not available

8

Cub Cadet KH-25-155-41-S

Connector

$7.99

$

In Stock, Qty 11

0

9

Cub Cadet KH-237878

15 Amp Stator Kit

$149.99

$

In Stock, Qty 10

0

10

Cub Cadet KH-M-548025-S

Screw, M5 X 0.8 X 25
(Superseded to KH-25-086-402-S)

$2.49

$

In Stock, only 2 left!

0

11

Cub Cadet 759-3336

Spark Plug
(Superseded to RC12YC)

$3.49

$

In Stock, Qty 20+

0

12

Cub Cadet KH-24-584-45-S

Module Ignition Kit
(Superseded to KH-24-584-201-S)

$102.99

$

Usually ships in 3-6 days

0

13

Cub Cadet KH-M-545020-S

Screw, M5 X .8 X 20
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 17

0

Cub Cadet KH-25-454-03-S

Wire Tie

Note: Not shown

$2.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-32-176-24-S

Wiring Harness

Note: Not shown

$31.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-452-01-S

Terminal

Note: Not shown

$5.49

$

Usually ships in 2-5 days

0
