Z-Force 48 (17BF3AGV010) - Cub Cadet 48" Z-Force Zero-Turn Mower, Kohler (2012) Electrical Parts Diagram

48" Z-Force Zero-Turn Mower, Kohler

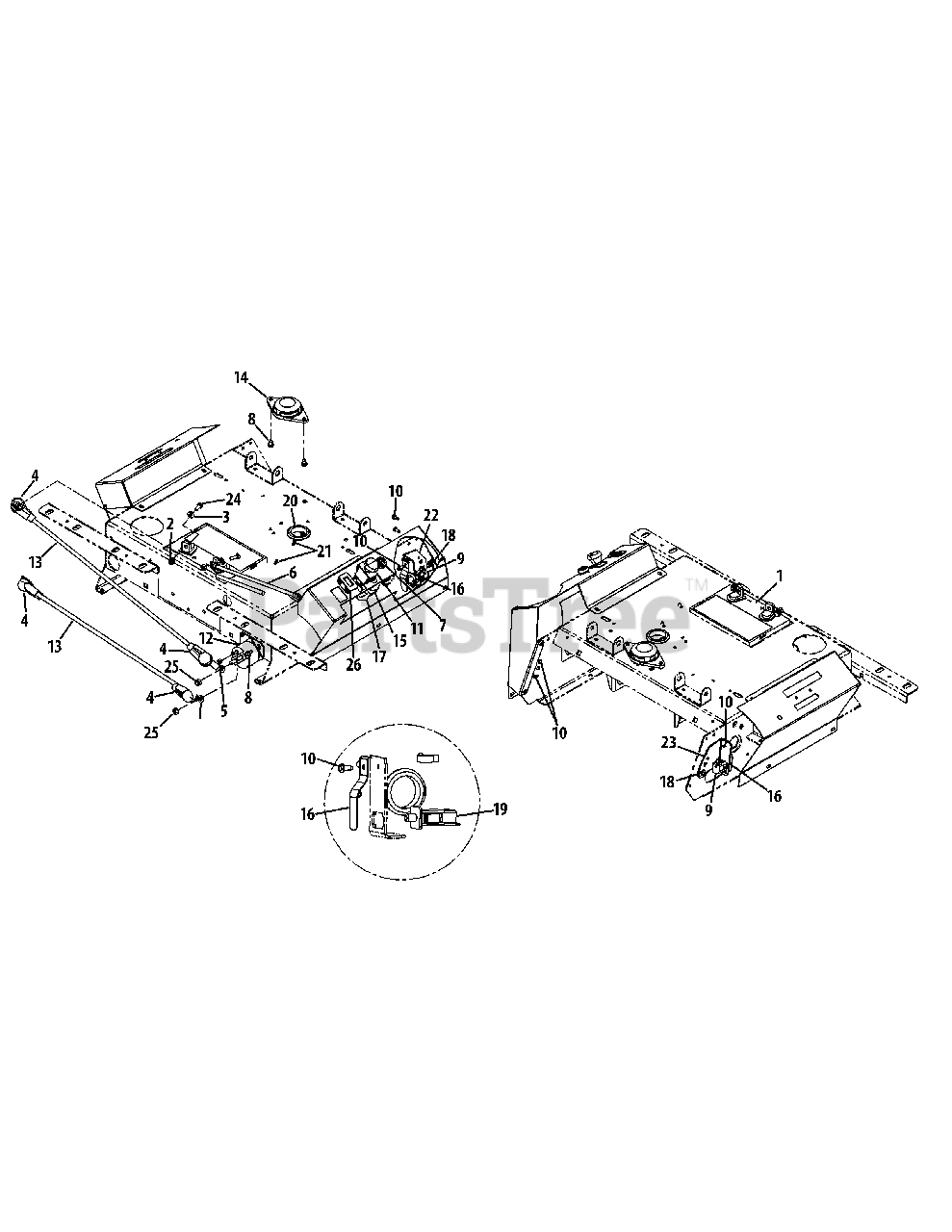

Electrical Parts Diagram

  • Title

1

Cub Cadet 925-1707D

Battery

$

$

Not available

2

Cub Cadet 00012152

Nylock Nut, 1/4-20

$4.49

$

In Stock, only 1 left!

0

3

Cub Cadet 00012154

Washer, .281 x .625 x .063
(Superseded to 936-3020)

$

$

Not available

4

Cub Cadet 00013258

Boot Terminal, 1.00 x 2.50

$9.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 00014608

Nylock Nut, #10-32
(Superseded to 712-05003)

$3.49

$

In Stock, only 2 left!

0

6

Cub Cadet 00024233

Battery Cable

$41.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 00032097

Nut, 5/8-32
(Superseded to 00032097P)

$

$

Not available

8

Cub Cadet 710-0599

Hex Flange Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 01001717

Switch
(Superseded to 925-3166)

$17.99

$

In Stock, Qty 20+

0

10

Cub Cadet 01001864

Flange Screw, #10-24 x .500
(Superseded to 1767754)

$

$

Not available

11

Cub Cadet 01002111

PTO Switch
(Superseded to 925-1716A)

$77.99

$

In Stock, Qty 13

0

12

Cub Cadet 925-3001

Solenoid

$62.99

$

In Stock, Qty 16

0

13

Cub Cadet 01002252

Battery Cable

$40.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 01003277

Seat Switch

$41.99

$

In Stock, only 1 left!

0

15

Cub Cadet 01003581P

Ignition Switch

$74.99

$

In Stock, Qty 9

0

16

Cub Cadet 732-04200

Renovator Spring

$10.99

$

In Stock, only 3 left!

0

17

Cub Cadet 01009905

PTO Bracket

$28.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 01009931

Nut, #10-24
(Superseded to 712-05009)

$

$

Not available

19

Cub Cadet 02000024P

Delta Switch
(Superseded to 925-3164A)

$42.99

$

In Stock, Qty 12

0

20

Cub Cadet 02001134

Grommet, 1/8 x 1.5 x 2.13

$

$

Not available

21

Cub Cadet 02003037

Electric CDT Clip

$3.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 02003926

RH Deck Switch Mount Bracket

$36.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 02003927

LH Deck Switch Mount Bracket

$21.99

$

In Stock, only 1 left!

0

24

Cub Cadet 710-3015

Hex Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 912-0429

Hex Lock Nut, 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 925-05120A

Hour Meter

$101.99

$

Usually ships in 3-6 days

0

Cub Cadet 02002990

Wiring Harness

Note: Not Shown

$289.99

$

Usually ships in 3-6 days

0

Cub Cadet 02005213

Harness Assembly

Note: Not Shown

$41.99

$

Usually ships in 3-6 days

0
