Z-Force 48 (17BF3AGV010) - Cub Cadet 48" Z-Force Zero-Turn Mower, Kohler (2012) Kohler SV715-3030 Blower Housing & Baffles Parts Diagram

48" Z-Force Zero-Turn Mower, Kohler

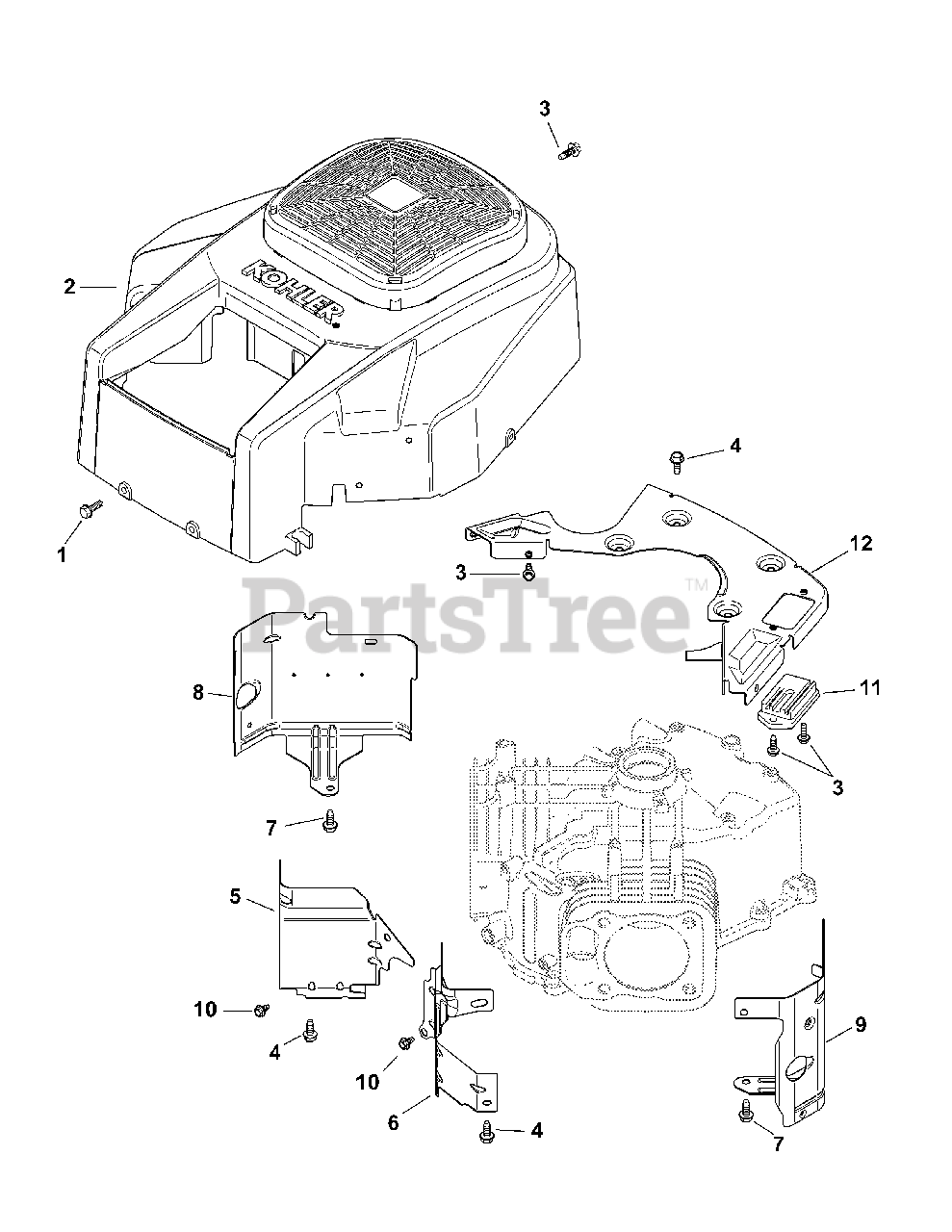

Kohler SV715-3030 Blower Housing & Baffles Parts Diagram

  • Title

1

Cub Cadet KH-24-086-12

Screw, M6 x 1.7 x 18

$

$

Not available

2

Cub Cadet KH-32-027-08-S

Blower Housing Kit

$

$

Not available

3

Cub Cadet KH-M-545016-S

Flange Screw, M5 x .8 x 16
(Superseded to KH-25-086-398-S)

$3.99

$

In Stock, Qty 13

0

4

Cub Cadet KH-M-645016-S

Flange Screw, M6 x 1.0 x 16

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet KH-24-063-93-S

Valley Baffle, #1 Cylinder

$

$

Not available

6

Cub Cadet KH-24-063-94-S

Valley Baffle, #2 Cylinder

$9.49

$

In Stock, only 1 left!

0

7

Cub Cadet KH-25-086-158-S

Flange Screw, M6 x 1.0 x 10
(Superseded to KH-25-086-406-S)

$2.49

$

In Stock, only 3 left!

0

8

Cub Cadet KH-32-063-10-S

Cylinder Barrel Baffle, #1 Side

$14.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-32-063-12-S

Cylinder Barrel Baffle, #2 Side

$19.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-M-0545010

Flange Screw, M5 x .8 x 10

$

$

Not available

11

Cub Cadet KH-41-403-10-S

Regulator/Rectifier
(Superseded to KH-25-403-37-S)

$105.99

$

In Stock, only 2 left!

0

12

Cub Cadet KH-32-146-05-S

Backing Plate Kit

$

$

Not available

Cub Cadet KH-32-113-53-S

Fixed Guard Decal

Note: Not shown

$3.49

$

Usually ships in 2-5 days

0
