Z-Force 48 (17BF3AGV010) - Cub Cadet 48" Z-Force Zero-Turn Mower, Kohler (2013) Body Assembly Parts Diagram

48" Z-Force Zero-Turn Mower, Kohler

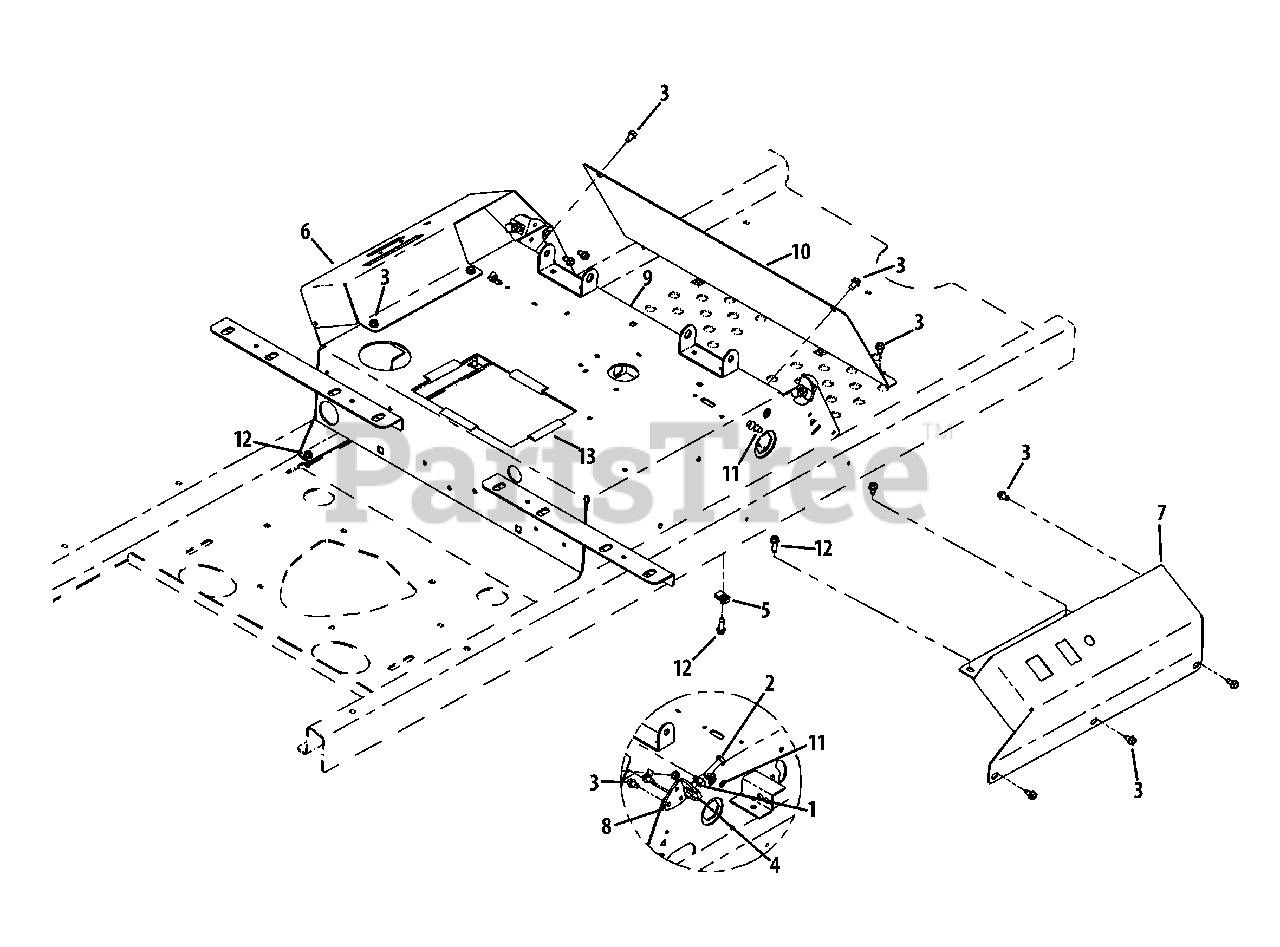

Body Assembly Parts Diagram

  • Title

1

Cub Cadet 912-3010

Hex Nut, 5/16-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 710-0528

HHCS, 5/16-18 x 1-1/4

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0599

Screw, 1/4-20 x 1/2

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 926-0211

U-Nut, 5/16-18
(Superseded to 726-0211)

$4.49

$

In Stock, only 3 left!

0

5

Cub Cadet 712-04092

U-Nut, 1/4-20

$5.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 02002735

Left Hand Control Console

Variations

Cub Cadet 02002735-0637

CONSOLE-CONTROL LH - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 02002735-0638

CONSOLE-CONTROL LH - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 02002735-4021

CONSOLE-CONTROL LH - CUB YELLOW 2 (4021)

$

$

Not available

$

$

7

Cub Cadet 02002736

Right Hand Control Console

Variations

Cub Cadet 02002736-0637

CONSOLE-CONTROL RH - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 02002736-0638

CONSOLE-CONTROL RH - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 02002736-4021

CONSOLE-CONTROL RH - CUB YELLOW 2 (4021)

$

$

Not available

$

$

8

Cub Cadet 02002761

Forward/Reverse Stop Bracket

$4.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 680-00048-4021

Control Housing Weldment

$442.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-07000-4021

Front Panel

$55.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-04484

Self-Tapping Screw 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0642

Self-Tapping Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 735-04130

Battery Edge Trim

$8.49

$

Usually ships in 3-6 days

0
