Z-Force 48 (17BF3AGV010) - Cub Cadet 48" Z-Force Zero-Turn Mower, Kohler (2013) Deck Assembly 48-Inch Parts Diagram

48" Z-Force Zero-Turn Mower, Kohler

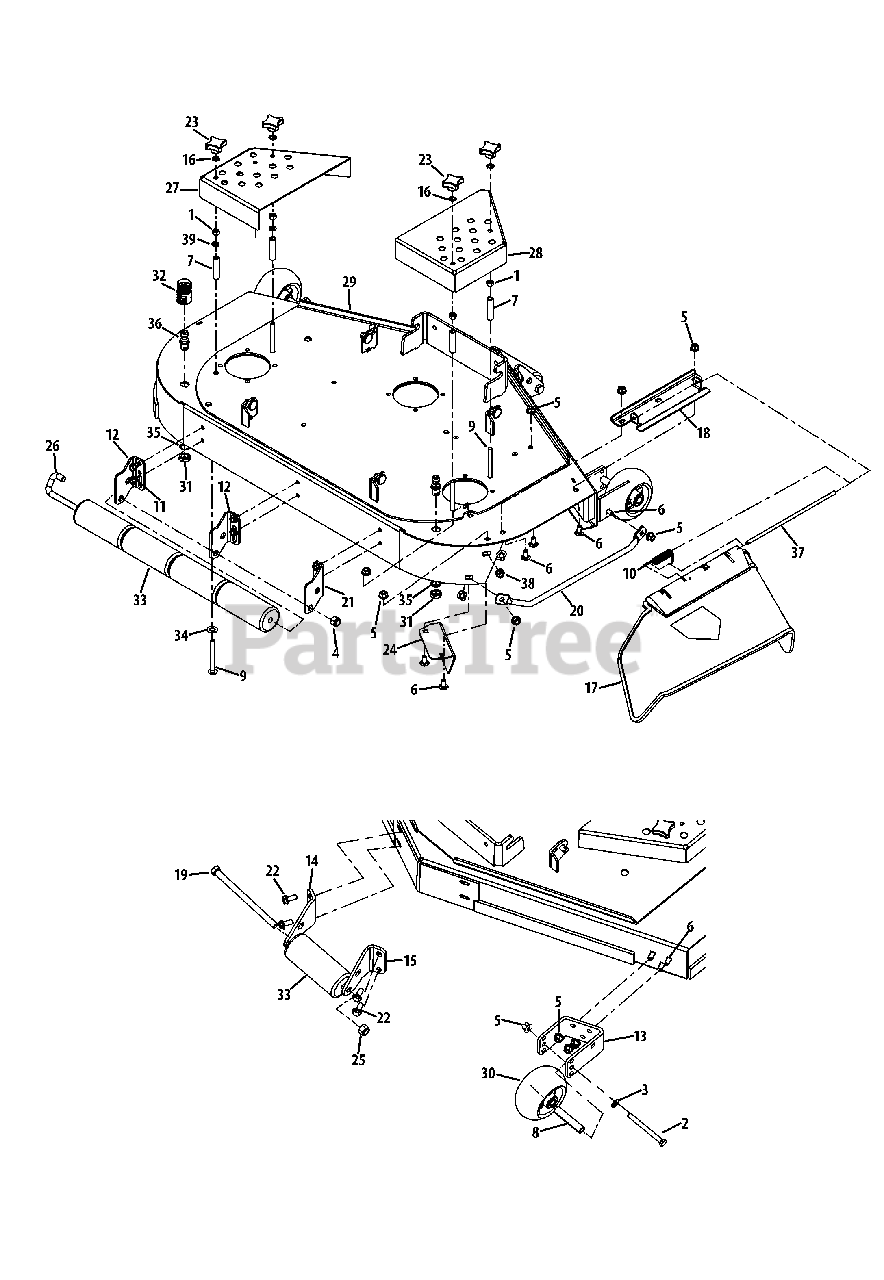

Deck Assembly 48-Inch Parts Diagram

  • Title

1

Cub Cadet 912-3017

Nut, 3/8-16
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 710-0411

Hex Screw, 3/8-16 x 4.00

$8.49

$

In Stock, Qty 20+

0

3

Cub Cadet 736-3050

Flat Washer, .406 x .812 x .051

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 712-3083

Hex Lock Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 712-05007

Counterlock Flange Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 01000395

Spacer, .400 x .560 x 2.45

$

$

Not available

8

Cub Cadet 750-3193

Spacer, .390 x .620 x 3.04

$18.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-1813

Carriage Bolt, 3/8-16 x 3.50

$

$

Not available

10

Cub Cadet 732-04797

Torsion Spring, .639 x 2.16 x .12

$11.99

$

In Stock, Qty 11

0

11

Cub Cadet 710-0773

Flange Screw, 3/8-16 x .500

$7.49

$

In Stock, Qty 5

0

12

Cub Cadet 01004707

Roller Mount Bracket

Variations

Cub Cadet 01004707-0637

Roller Mounting Bracket, Black - POWDER BLACK (0637)

$23.99

$

In Stock, Qty 20+

0

Cub Cadet 01004707-4021

Roller Mounting Bracket - CUB YELLOW 2 (4021)

$23.99

$

In Stock, Qty 5

0

$17.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 01005243

Anit-Scalp Front Mount Bracket

Variations

Cub Cadet 01005243-0637

Front Wheel Bracket - POWDER BLACK (0637)

$57.99

$

In Stock, only 2 left!

0

Cub Cadet 01005243-4021

Front Wheel Bracket - CUB YELLOW 2 (4021)

$57.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 02004497

LH Front Roller Mount Bracket

Variations

Cub Cadet 02004497-0637

BRACKET-FRNT ROLLER - POWDER BLACK (0637)

$32.99

$

In Stock, only 1 left!

0

Cub Cadet 02004497-4021

BRACKET-FRNT ROLLER - CUB YELLOW 2 (4021)

$32.99

$

In Stock, only 1 left!

0

$26.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 02004500

RH Front Roller Mount Bracket

Variations

Cub Cadet 02004500-0637

BRACKET-FRNT ROLLER - POWDER BLACK (0637)

$19.99

$

Usually ships in 3-6 days

0

Cub Cadet 02004500-4021

BRACKET-FRNT ROLLER - CUB YELLOW 2 (4021)

$19.99

$

Usually ships in 3-6 days

0

$15.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 736-0148

Lock Washer, 3/8

$3.99

$

In Stock, Qty 12

0

17

Cub Cadet 01006693P

Chute Deflector

$68.99

$

In Stock, Qty 20+

0

18

Cub Cadet 01006748-0637

Chute Deflector Bracket

$35.99

$

In Stock, Qty 5

0

19

Cub Cadet 710-05385

Hex Screw, 1/2-20 x 7.50

$11.99

$

In Stock, Qty 20+

0

20

Cub Cadet 01008644

Finger Guard

$36.99

$

In Stock, Qty 5

0

21

Cub Cadet 01008790

RH Roller Mt. Brkt.

Variations

Cub Cadet 01008790-0637

Roller Mounting Bracket, Black - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

Cub Cadet 01008790-4021

Roller Mounting Bracket - CUB YELLOW 2 (4021)

$37.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 710-04683A

Screw, 3/8-16 x 1.00
(Superseded to 710-04683C)

$6.49

$

In Stock, Qty 15

0

23

Cub Cadet 02000040

Plastic Knob, 3/8-16

$20.99

$

In Stock, Qty 8

0

24

Cub Cadet 02001235-0637

Micro Chute Baffle

$31.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 712-04316

Nut, 1/2-20

$3.99

$

In Stock, Qty 8

0

26

Cub Cadet 711-05664

J-Hook w/ Threaded Roller

$22.99

$

In Stock, Qty 6

0

27

Cub Cadet 02003605

LH Belt Cover

Variations

Cub Cadet 02003605-4021

COVER-BELT LH 48" - CUB YELLOW 2 (4021)

$66.99

$

Usually ships in 3-6 days

0

Cub Cadet 02003605-0637

Belt Cover, LH 48" Black - POWDER BLACK (0637)

$

$

Not available

$66.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 02003606

RH Belt Cover

Variations

Cub Cadet 02003606-0637

Belt Cover, RH 48" Black - POWDER BLACK (0637)

$118.99

$

Usually ships in 3-6 days

0

Cub Cadet 02003606-4021

COVER-BELT RH 48" - CUB YELLOW 2 (4021)

$

$

Not available

$110.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 02005231

Deck

Variations

Cub Cadet 02005231-0637

DECK ASM - 48" FAB - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 02005231-4021

DECK ASSY - 48" FAB - CUB YELLOW 2 (4021)

$

$

Not available

$

$

30

Cub Cadet 634-3159

Wheel

$34.99

$

In Stock, Qty 20+

0

31

Cub Cadet 912-0641

Hex Nut
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 20+

0

32

Cub Cadet 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0

33

Cub Cadet 731-3005

Front Roller

$28.99

$

In Stock, Qty 20+

0

34

Cub Cadet 936-0272

Flat Washer, .510 x 1.00 x .060
(Superseded to 736-0272)

$4.99

$

In Stock, Qty 20+

0

35

Cub Cadet 936-0760

Lock Washer, 17 x 23.8 x 1.95

$4.49

$

In Stock, Qty 14

0

36

Cub Cadet 737-04003D

Water Deck Nozzle

$23.99

$

In Stock, Qty 18

0

37

Cub Cadet 747-3384

Chute Deflector Rod

$27.99

$

In Stock, Qty 6

0

38

Cub Cadet 712-04065

Nut, Flange Lock, 3/8-16, Grf,

$3.99

$

In Stock, Qty 20+

0

39

Cub Cadet 936-0169

Washer, Lock, 3/8 , Regular Duty
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0
