Z-Force 48 (17BF3AGV010) - Cub Cadet 48" Z-Force Zero-Turn Mower, Kohler (2013) Frame Parts Diagram

48" Z-Force Zero-Turn Mower, Kohler

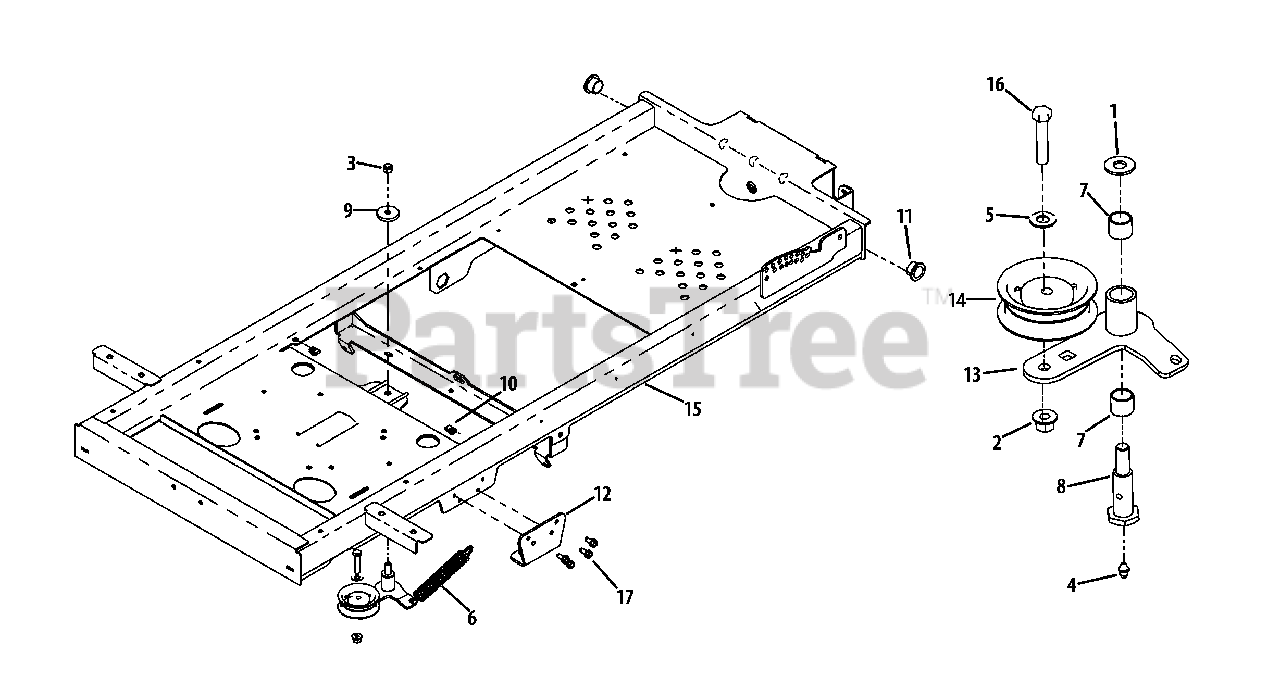

Frame Parts Diagram

  • Title

1

Cub Cadet 936-3015

Flat Washer, .469 x .875 x .105

$3.99

$

In Stock, only 3 left!

0

2

Cub Cadet 712-05007

Counterlock Flange Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 712-05025

Nylock Nut, 7/16-14

$

$

Not available

4

Cub Cadet 737-04345

Straight Grease Fitting, 1/4-28

$4.49

$

In Stock, Qty 16

0

5

Cub Cadet 936-0300

Flat Washer, .406 x .875 x .059
(Superseded to 736-0300)

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 01000199

Extension Spring, 1.00 x 5.00

$16.99

$

In Stock, Qty 20+

0

7

Cub Cadet 741-04555

Bearing Sleeve

$15.99

$

In Stock, Qty 10

0

8

Cub Cadet 738-05004

Shoulder Bolt

$20.99

$

In Stock, Qty 7

0

9

Cub Cadet 736-3082A

Flat Washer, .45 x 1.5 x .172

$9.49

$

In Stock, Qty 17

0

10

Cub Cadet 712-04092

Speed Nut, U-Type 1/4-20

$5.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 741-04552

Bushing, 1.00 x 1.50 x .750

$8.99

$

In Stock, Qty 8

0

12

Cub Cadet 02002641-0637

Transmission Mounting Bracket

$22.99

$

In Stock, only 1 left!

0

13

Cub Cadet 02003641

Idler Arm

$127.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 02004558

Flat Idler Pully

$21.99

$

In Stock, Qty 14

0

15

Cub Cadet 02004865-0637

Frame Assembly

$

$

Not available

16

Cub Cadet 710-0347

Hex Cap Screw, 3/8-16 x 1-3/4

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet 710-04484

Self Tapping Screw, 5/16-18 x .750

$3.49

$

In Stock, Qty 20+

0
