Z-Force 48 (17BF3AGV010) - Cub Cadet 48" Z-Force Zero-Turn Mower, Kohler (2013) Lift Assembly Parts Diagram

48" Z-Force Zero-Turn Mower, Kohler

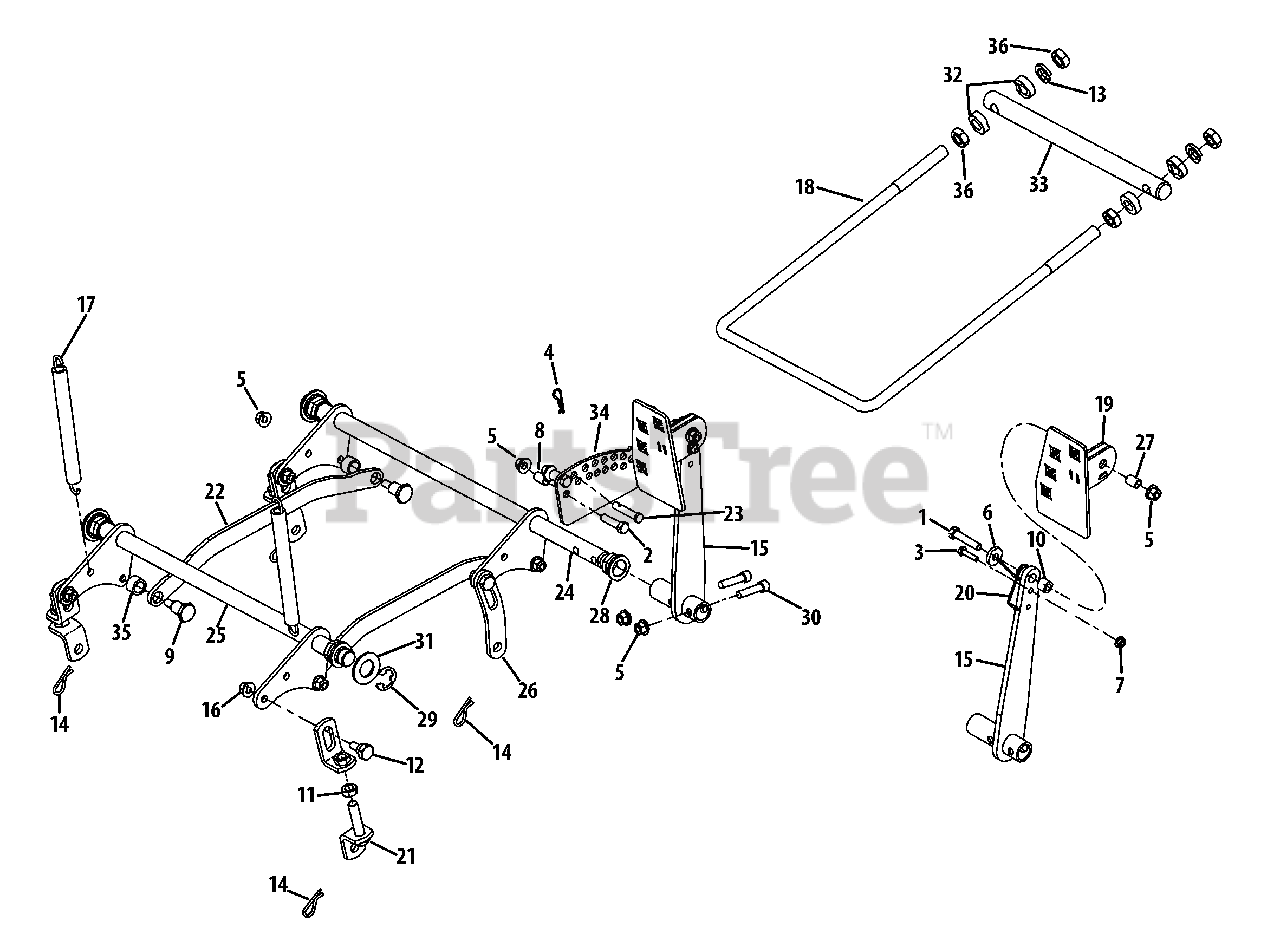

Lift Assembly Parts Diagram

  • Title

1

Cub Cadet 710-0347

Hex Screw, 3/8-16 x 1.75

$4.99

$

In Stock, Qty 20+

0

2

Cub Cadet 710-04321

Hex Screw, 3/8-16 x 1.50

$

$

Not available

3

Cub Cadet 710-0597

Hex Screw, 1/4-20 x 1.00

$3.99

$

In Stock, Qty 18

0

4

Cub Cadet 914-04023

Pin, Internal Cotter, .08 x 1.56
(Superseded to 714-04023)

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 712-05007

Counterlock Flange Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 736-0258

Flat Washer, .385 x 1.0 x .135

$4.49

$

In Stock, Qty 11

0

7

Cub Cadet 912-3027

Flange Toplock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 01003468

Spacer, .375 x .500 x .750

$

$

Not available

9

Cub Cadet 738-05007

Shoulder Bolt, 3/8-16 x .625 x .830

$8.49

$

In Stock, Qty 5

0

10

Cub Cadet 750-05563

Spacer, .385 x .625 x .500

$6.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 712-3029

Jam Nut, 1/2-20

$6.49

$

In Stock, Qty 6

0

12

Cub Cadet 738-05008

Shoulder Bolt, 3/8-16 x .56 x .27

$7.99

$

In Stock, Qty 6

0

13

Cub Cadet 936-0158

Lock Washer, 5/8

$4.49

$

In Stock, Qty 15

0

14

Cub Cadet 914-0209

Cotter Pin, Internal, .125 Dia.

$3.49

$

In Stock, only 1 left!

0

15

Cub Cadet 02002374

Foot Lift Pivot Assembly

Variations

Cub Cadet 02002374-0637

USE 02002374 PIVOT ASM - FOOT - POWDER BLACK (0637)

$96.99

$

Usually ships in 3-6 days

0

$96.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 02002382

Adjustable Deck Lift Bracket

$12.99

$

In Stock, Qty 11

0

17

Cub Cadet 02002629

Extension Spring, .75 x 7.89 x .14

$16.99

$

In Stock, only 2 left!

0

18

Cub Cadet 02002879

Front Lift Rod

$35.99

$

In Stock, only 4 left!

0

19

Cub Cadet 02002880-0637

Foot Pedal Assembly

$

$

Not available

20

Cub Cadet 02002882

Torsion Spring, .900 x 2.3 x .09

$9.99

$

In Stock, only 1 left!

0

21

Cub Cadet 02002890

Lower Bracket Assembly

$33.99

$

In Stock, only 2 left!

0

22

Cub Cadet 02002893

Lift Connecting Link

$27.99

$

In Stock, only 1 left!

0

23

Cub Cadet 711-06098

Clevis Pin, 3/8 x 2.00

$3.99

$

In Stock, only 3 left!

0

24

Cub Cadet 02002915

Front Shaft Assembly

$

$

Not available

25

Cub Cadet 02002916

Rear Shaft Assembly

$106.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 02002979

Curved Link Plate

$21.99

$

In Stock, only 3 left!

0

27

Cub Cadet 02003436

Spacer, .380 x .500 x .667

$6.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 02003685

Hex Flange Bearing, 7/8

$8.99

$

In Stock, Qty 5

0

29

Cub Cadet 716-0136

Ring, E-Type, .875

$8.49

$

In Stock, Qty 9

0

30

Cub Cadet 710-06024

Sockt Cap Screw, 3/8-16 x 1.50

$3.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 736-05011

Washer, .940 x 1.75 x .105

$4.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 02003751

Spacer, .635 x 1.2 x .41
(Superseded to 750-05621)

$3.99

$

In Stock, Qty 14

0

33

Cub Cadet 02004227

Trailing Link Pivot Rod

$52.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 02004694-0637

Index Plate

$

$

Not available

35

Cub Cadet 02005535

Spacer, 632 x .877 x .548

$5.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 912-3015

Jam Nut, 5/8-11
(Superseded to 712-3015)

$4.49

$

In Stock, Qty 15

0
