Z-Force 48 (17BF3AGV010) - Cub Cadet 48" Z-Force Zero-Turn Mower, Kohler (2013) Seat Assembly Parts Diagram

48" Z-Force Zero-Turn Mower, Kohler

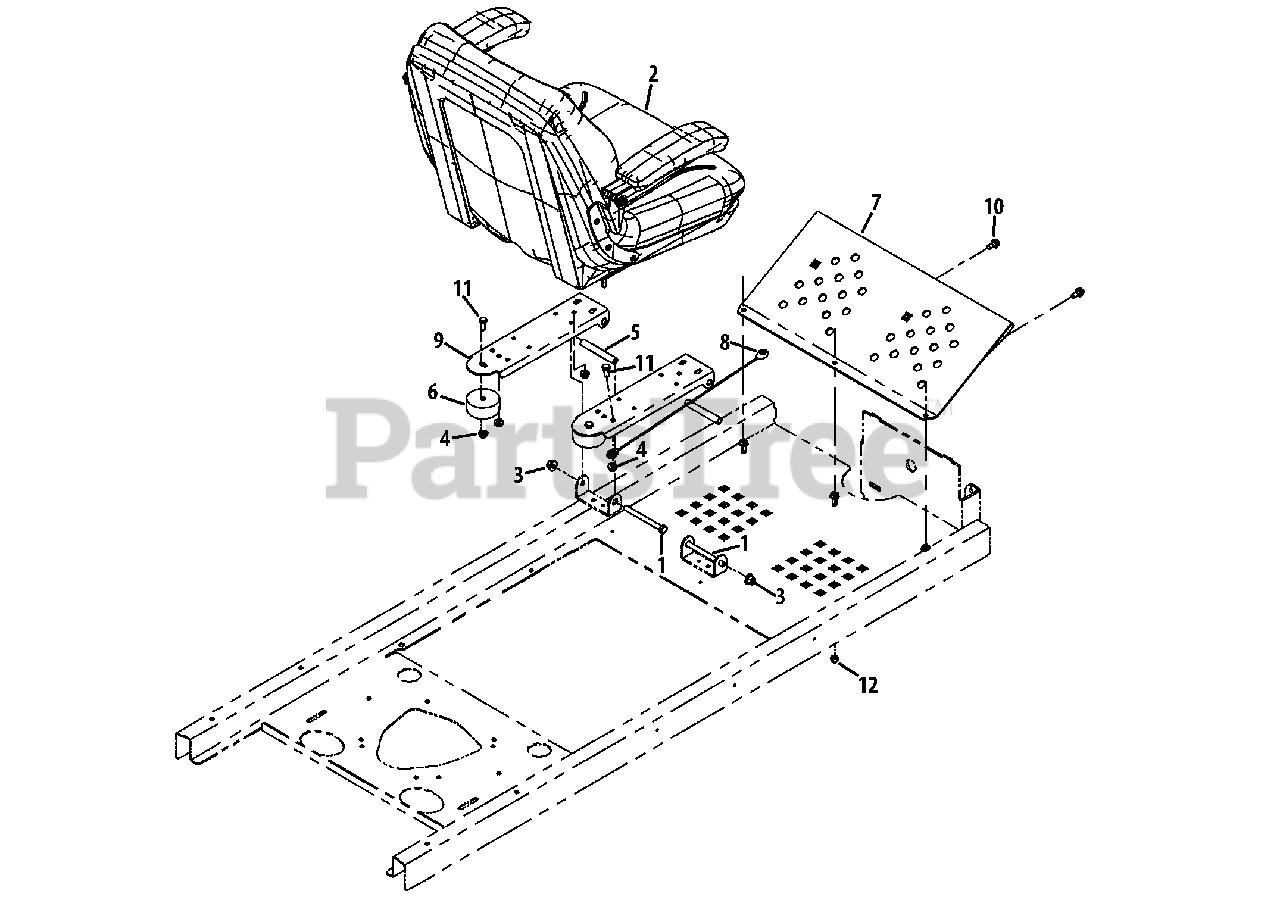

Seat Assembly Parts Diagram

  • Title

1

Cub Cadet 710-0411

Hex Cap Screw, 3/8-16 x 4.00

$8.49

$

In Stock, Qty 20+

0

2

Cub Cadet 757-04070

Seat
(Superseded to 757-04115)

$

$

Not available

2

Cub Cadet 02002255

Armrest Kit

Note: (not shown)

$281.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-3256

Screw, Button Head 1/4-20 x .50

Note: (not shown)

$10.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 712-05007

Counterlock Flange Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 712-04339

Nut, 5/16-18, Centerlock

$3.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 01009872

Spacer, .370 ID x .500 x 3.45

$17.99

$

In Stock, only 2 left!

0

6

Cub Cadet 02002952

Bumper, 2.50 x 1.13

$46.99

$

In Stock, only 4 left!

0

7

Cub Cadet 02002960-0637

Foot Rest Bracket

$

$

Not available

8

Cub Cadet 02004062P

Lift Cable

$19.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-06691-0637

Seat Mounting Bracket

$15.99

$

In Stock, only 1 left!

0

10

Cub Cadet 710-04484

Self Tapping Screw 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3008

Hex Cap Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 912-0429

Nylock Nut, 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0
