Z-Force 48 (53AA5A7M712) - Cub Cadet 48" Z-Force Zero-Turn Mower, Briggs & Stratton Intek Engine Cylinder Assembly Parts Diagram

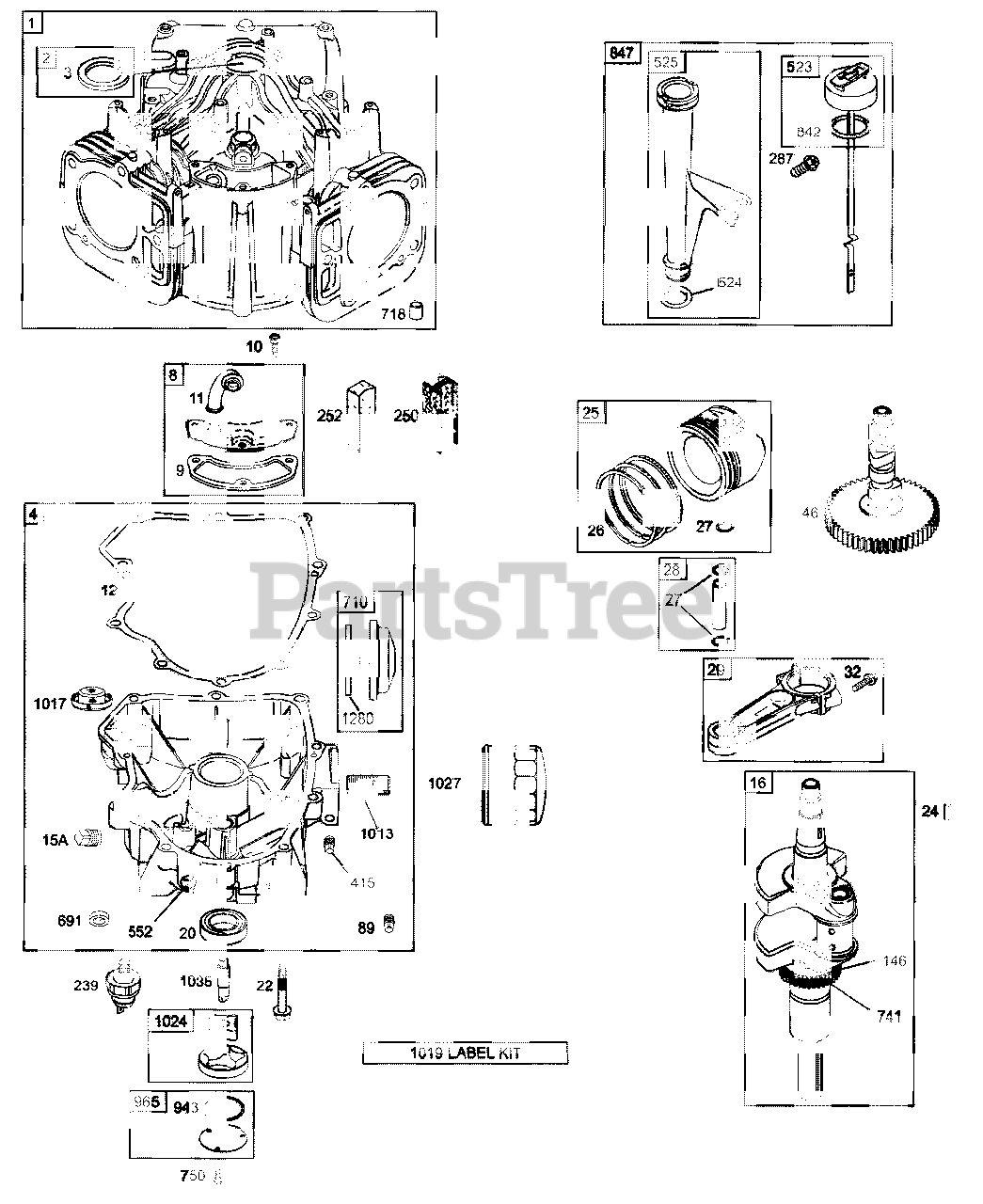

48" Z-Force Zero-Turn Mower, Briggs & Stratton Intek

Engine Cylinder Assembly Parts Diagram

  • Title

1

Cub Cadet BS-699751

Cylinder Assembly

$

$

Not available

2

Cub Cadet BS-499585

Kit-Bushing/Seal (Magneto Side)

$19.99

$

In Stock, Qty 10

0

3

Cub Cadet BS-391086S

Seal-Oil (Magneto Side)

$6.49

$

In Stock, Qty 20+

0

4

Cub Cadet BS-699747

Sump-Engine
(Superseded to BS-796307)

$306.99

$

In Stock, only 1 left!

0

8

Cub Cadet BS-499601

Breather Assembly
(Superseded to BS-792185)

$

$

Not available

9

Cub Cadet BS-690937

Gasket-Breather

$8.99

$

In Stock, only 2 left!

0

10

Cub Cadet BS-691108

Screw (Breather Assembly)

$3.49

$

In Stock, Qty 20+

0

11

Cub Cadet BS-690942

Tube-Breather
(Superseded to BS-792184)

$

$

Not available

12

Cub Cadet BS-697227

Gasket-Crankcase
(Superseded to BS-594195)

$39.99

$

In Stock, Qty 20+

0

15A

Cub Cadet BS-690946

Plug-Oil Drain (3/8² Standard)

$6.49

$

In Stock, only 2 left!

0

16

Cub Cadet BS-691046

Crankshaft
(Superseded to BS-699701)

$

$

Not available

20

Cub Cadet BS-690947

Seal-Oil (PTO Side)
(Superseded to BS-795387)

$7.99

$

In Stock, Qty 20+

0

22

Cub Cadet BS-694966

Screw (Crankcase Cover/ Sump)

$5.99

$

Usually ships in 2-12 days

0

24

Cub Cadet BS-222698S

Key-Flywheel

$2.99

$

In Stock, Qty 20+

0

25

Cub Cadet BS-499588

Piston Assembly (Standard)
(Superseded to BS-793647)

$150.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-499590

Piston Assembly (.020²)
(Superseded to BS-793648)

$175.99

$

In Stock, only 1 left!

0

26

Cub Cadet BS-499604

Ring Set (Standard)

$63.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-499606

Ring Set (.020²)

$

$

Not available

27

Cub Cadet BS-690975

Lock-Piston Pin

$4.49

$

In Stock, Qty 18

0

28

Cub Cadet BS-690229

Pin-Piston (Standard)

$19.99

$

In Stock, only 2 left!

0

29

Cub Cadet BS-499583

Rod-Connecting (Standard)

$

$

Not available

Cub Cadet BS-697253

Rod-Connecting (.020²)

$

$

Not available

32

Cub Cadet BS-690976

Screw (Connecting Rod)

$4.49

$

In Stock, Qty 18

0

46

Cub Cadet BS-699748

Camshaft
(Superseded to BS-790562)

$

$

Not available

89

Cub Cadet BS-690946

Plug-Oil

$6.49

$

In Stock, only 2 left!

0

146

Cub Cadet BS-690979

Key-Timing

$3.49

$

In Stock, Qty 20+

0

239

Cub Cadet BS-491657S

Switch-Oil Pressure

$35.99

$

In Stock, only 3 left!

0

250

Cub Cadet BS-690957

Retainer-Breather

$7.99

$

In Stock, Qty 13

0

252

Cub Cadet BS-690956

Collector-Oil
(Superseded to BS-794389)

$

$

Not available

287

Cub Cadet BS-691108

Screw (Dipstick Tube)

$3.49

$

In Stock, Qty 20+

0

415

Cub Cadet BS-690283

Plug
(Superseded to BS-794903)

$5.99

$

In Stock, Qty 7

0

523

Cub Cadet BS-691036

Dipstick
(Superseded to BS-594528)

$20.99

$

In Stock, Qty 8

0

524

Cub Cadet BS-691032

Seal-Dipstick Tube

$5.99

$

In Stock, Qty 20+

0

525

Cub Cadet BS-691037

Tube-Dipstick

$

$

Not available

552

Cub Cadet BS-690552

Bushing-Governor Crank

$8.99

$

In Stock, only 4 left!

0

691

Cub Cadet BS-690657

Seal-Governor Shaft
(Superseded to BS-790574)

$6.49

$

In Stock, Qty 20+

0

710

Cub Cadet BS-697474

Cover-Oil Filter

$

$

Not available

718

Cub Cadet BS-690959

Pin-Locating

$7.49

$

In Stock, Qty 5

0

741

Cub Cadet BS-690980

Gear-Timing

$16.99

$

In Stock, only 2 left!

0

750

Cub Cadet BS-696999

Screw (Oil Pump Cover)

$31.99

$

Usually ships in 2-12 days

0

842

Cub Cadet BS-691031

Seal-O Ring (Dipstick)

$5.99

$

In Stock, Qty 20+

0

847

Cub Cadet BS-499602

Dipstick/Tube Assembly

$

$

Not available

943

Cub Cadet BS-690589

Seal-O Ring (Oil Pump Cover)

$9.49

$

In Stock, Qty 20+

0

965

Cub Cadet BS-499613

Cover-Oil Pump

$14.99

$

In Stock, Qty 20+

0

1013

Cub Cadet BS-231573

Nipple-Oil Filter
(Superseded to BS-690954)

$7.99

$

In Stock, Qty 5

0

1017

Cub Cadet BS-690770

Screen-Oil Pump

$

$

Not available

1019

Cub Cadet BS-790094

Kit-Label

$

$

Not available

1024

Cub Cadet BS-499054

Pump-Oil
(Superseded to BS-795259)

$33.99

$

Usually ships in 2-12 days

0

1027

Cub Cadet BS-492932

Filter-Oil
(Superseded to BS-492932S)

$12.99

$

In Stock, Qty 20+

0

1035

Cub Cadet BS-691042

Shaft-Pump
(Superseded to BS-794644)

$38.99

$

In Stock, Qty 11

0

1280

Cub Cadet BS-697475

Seal-O Ring (Oil Filter Cover)

$7.99

$

Usually ships in 2-12 days

0

N/S

Cub Cadet 01009769P

Complete Engine
(Superseded to BS-44S977-0032)

$2330.99

$

Usually ships in 3-6 days

0

N/S

Cub Cadet BS-692714

Short Block
(Superseded to BS-698172)

$

$

Not available
