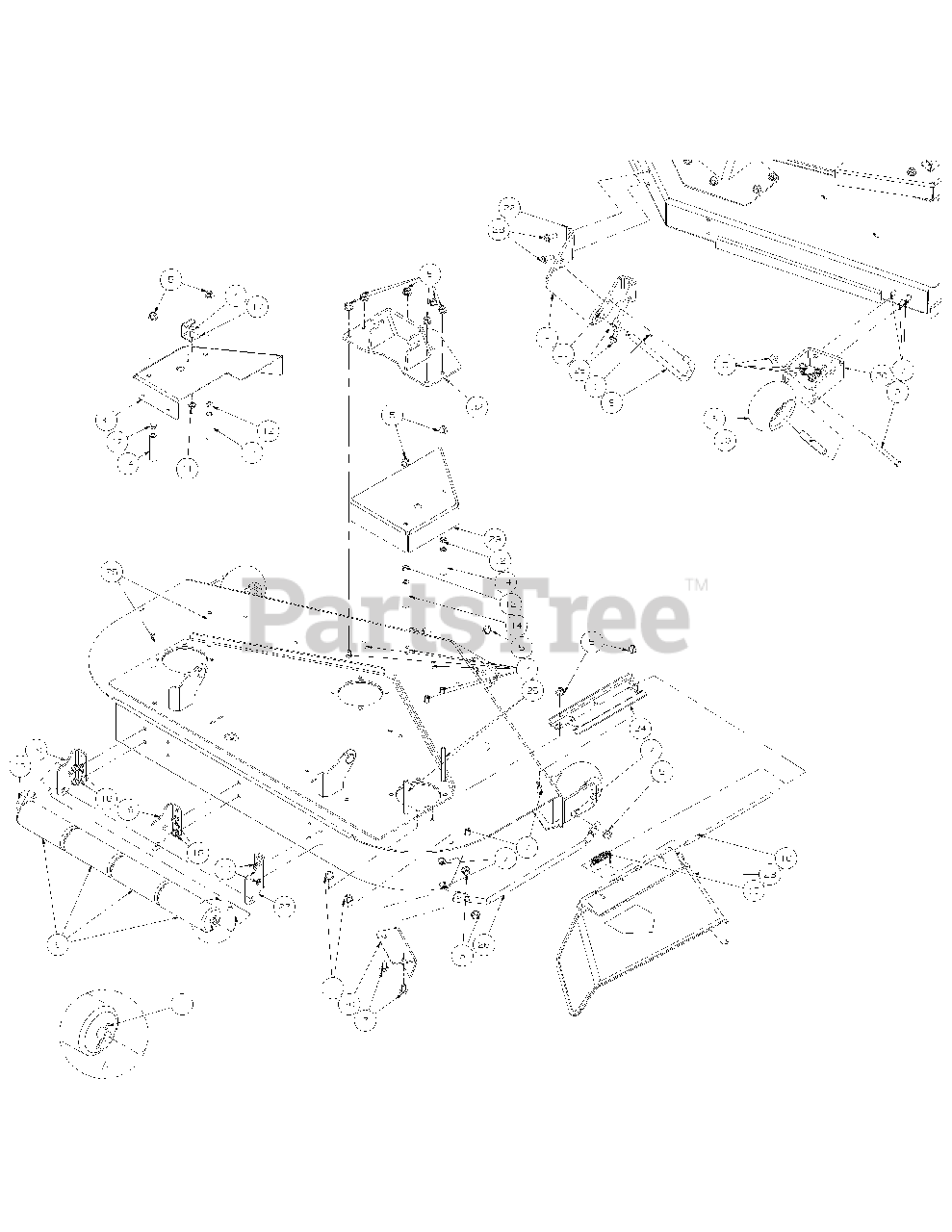

Z-Force 48 (53AA5B6V710) - Cub Cadet 48" Z-Force Zero-Turn Mower, Kohler Fabricated Cutter Deck Parts Diagram

48" Z-Force Zero-Turn Mower, Kohler

Fabricated Cutter Deck Parts Diagram

  • Title

No

Part No.

Description

$

$

Not available

1

Cub Cadet 00003107

Cotter Pin, .125 Dia. x 1.0
(Superseded to 914-0115)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 00005765

Carriage Bolt, 3/8-16 x 1.25

$

$

Not available

3

Cub Cadet 00011925

Hex Cap Screw, 3/8-16, 3.75
(Superseded to 710-0411)

$8.99

$

In Stock, Qty 20+

0

4

Cub Cadet 00013406

Hex Head Cap Screw, 5/16-18 x .75
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 00022560

Hex Nut, 3/8-16 Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 01000343

Complete Wheel, 5.00 Dia
(Superseded to 634-3159)

$36.99

$

In Stock, Qty 20+

0

7

Cub Cadet 01000372

Carriage Bolt 3/8-16 x .75
(Superseded to 710-3178)

$4.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 01000375

Roller Pin 1/2 x 7.31
(Superseded to 711-3314A)

$27.99

$

In Stock, Qty 17

0

9

Cub Cadet 01000385

Front Roller
(Superseded to 731-3005)

$30.99

$

In Stock, Qty 20+

0

10

Cub Cadet 01000398

Wheel Spacer
(Superseded to 750-3193)

$19.99

$

In Stock, Qty 20+

0

11

Cub Cadet 01000635

Hex Nut, 5/16-18 Flange Lock
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 01002511

Nut, 3/8-16, Jam

$

$

Not available

13

Cub Cadet 01002635

Roller Pin
(Superseded to 711-05664)

$23.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 01003245

Spacer, .39 ID x .625 OD x 2.75

$19.99

$

In Stock, only 2 left!

0

15

Cub Cadet 01003253

Torsion Spring
(Superseded to 732-04797)

$12.99

$

In Stock, only 4 left!

0

16

Cub Cadet 01003254

Chute Deflector Rod
(Superseded to 747-3384)

$29.99

$

In Stock, only 4 left!

0

17

Cub Cadet 01004109

Stop Bracket

$12.99

$

In Stock, only 1 left!

0

18

Cub Cadet 01004304

Self Tapping Screw, 5/16-18 x 1/2
(Superseded to 710-0773)

$7.99

$

In Stock, Qty 18

0

19

Cub Cadet 01005366

Fabricted Deck Roller Mount Bracket
(Superseded to 01004707-4021)

$24.99

$

In Stock, only 4 left!

0

20

Cub Cadet 01005367

Front Anti-Scalp Wheel Mount Bracket
(Superseded to 01005243-4021)

$57.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 01005368

Left Hand Front Roller Mount Bracket
(Superseded to 01005244-4021)

$

$

Not available

22

Cub Cadet 01005369

Right Hand Front Roller Mount Bracket
(Superseded to 01005245-4021)

$39.99

$

In Stock, only 2 left!

0

23

Cub Cadet 01006693

Deflector Chute
(Superseded to 01006693P)

$73.99

$

In Stock, Qty 11

0

24

Cub Cadet 01008226

Deflector Chute Bracket
(Superseded to 01006748-0637)

$37.99

$

In Stock, only 4 left!

0

25

Cub Cadet 01008049

Carriage Bolt, 3/8-16 x 4.00
(Superseded to 710-05384)

$5.99

$

In Stock, Qty 17

0

26

Cub Cadet 01008644

Fabricated Deck Finger Guard

$38.99

$

In Stock, only 1 left!

0

27

Cub Cadet 02002169

Grass Catcher Roller Bracket

$

$

Currently unavailable

28

Cub Cadet 01009243

Self Tapping Screw, 3/8-16 x 0.875

$15.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 02002171

Belt Cover, RH

$

$

Currently unavailable

30

Cub Cadet 02001236

Fabricated Deck, Chute Bracket
(Superseded to 02001235-0637)

$33.99

$

In Stock, only 2 left!

0

31

Cub Cadet 02002170

Belt Cover, LH

$

$

Currently unavailable

32

Cub Cadet 02002173

Front Lift Bracket Weldment

$

$

Currently unavailable
