Z-Force 54 (17BF3AGX010) - Cub Cadet 54" Z-Force Zero-Turn Mower, Kohler (2011 & Before) Kohler SV720-3044 Fuel System Parts Diagram

54" Z-Force Zero-Turn Mower, Kohler

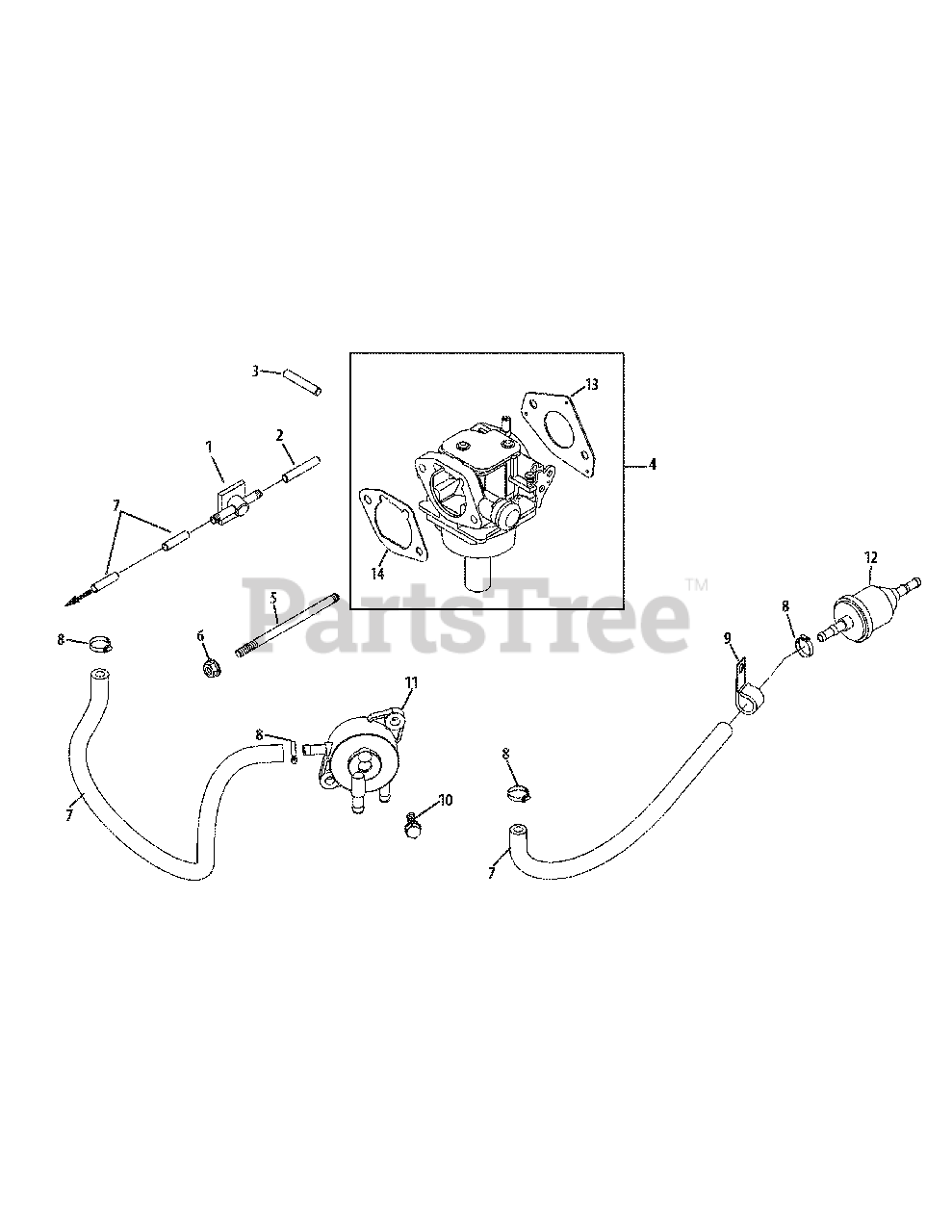

Kohler SV720-3044 Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-25-155-40-S

SAI Connector
(Superseded to KH-25-155-51-S)

$13.99

$

In Stock, only 2 left!

0

2

Cub Cadet KH-25-173-23-S

Masking Cap

$

$

Not available

3

Cub Cadet KH-25-173-25-S

Masking Cap

$

$

Not available

4

Cub Cadet KH-32-853-17-S

Carburetor Kit (Inc. #13 & 14)

$479.99

$

Usually ships in 2-5 days

0

5

Cub Cadet KH-M-629105-S

Stud, M6 x 1.0 x 106
(Superseded to KH-25-072-25-S)

$18.99

$

In Stock, only 2 left!

0

6

Cub Cadet KH-M-641060-S

Flange Nut, M6 x 1.0

$4.49

$

In Stock, Qty 5

0

7

Cub Cadet KH-25-111-34-S

Fuel Line
(Superseded to KH-25-111-81-S)

$17.99

$

In Stock, Qty 20+

0

8

Cub Cadet KH-25-237-14-S

Hose Clamp, 1.2
(Superseded to KH-25-237-31-S)

$5.99

$

In Stock, Qty 12

0

9

Cub Cadet KH-47-154-01-S

Cable Clip

$5.49

$

In Stock, only 2 left!

0

10

Cub Cadet KH-24-086-12

Screw, M6 x 1.7 x 18

$

$

Not available

11

Cub Cadet KH-24-393-16

Fuel Pump

$

$

Not available

12

Cub Cadet KH-25-050-22-S1

Fuel Filter

$9.99

$

Usually ships in 2-5 days

0

13

Cub Cadet KH-24-041-52-S

Carburetor Gasket
(Superseded to KH-24-041-91-S)

$5.99

$

Usually ships in 3-6 days

0

14

Cub Cadet KH-24-041-14

Air Cleaner Base Gasket

$

$

Not available
