Z-Force 54 (17BF3AGX010) - Cub Cadet 54" Z-Force Zero-Turn Mower, Kohler (2011 & Before) Kohler SV720-3044 Head,Valve & Breather Parts Diagram

54" Z-Force Zero-Turn Mower, Kohler

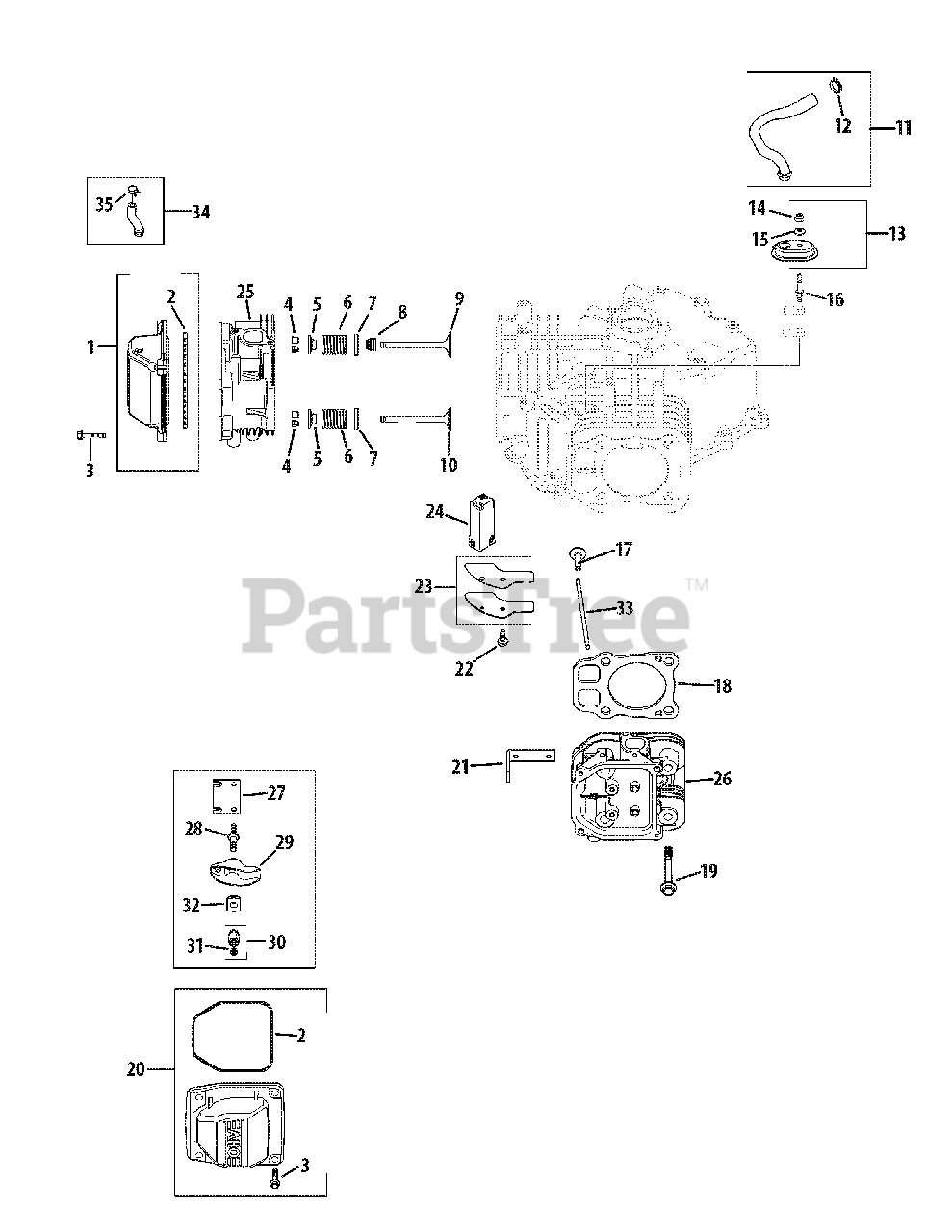

Kohler SV720-3044 Head,Valve & Breather Parts Diagram

  • Title

1

Cub Cadet KH-32-096-06-S

Breather Valve Cover Kit (Inc. #2)

$29.99

$

In Stock, only 3 left!

0

2

Cub Cadet KH-24-153-30-S

Valve Cover O-Ring

$11.99

$

In Stock, Qty 20+

0

3

Cub Cadet KH-M-651030-S

Flange Screw, M6 x 1.0 x 30
(Superseded to KH-25-086-797-S)

$2.99

$

Usually ships in 3-6 days

0

4

Cub Cadet KH-12-755-03

Retainer Kit

$5.99

$

In Stock, Qty 8

0

5

Cub Cadet KH-12-173-01

Valve Spring Cap
(Superseded to KH-25-173-28-S)

$8.49

$

In Stock, Qty 7

0

6

Cub Cadet KH-24-089-02

Valve Spring

$

$

Not available

7

Cub Cadet KH-235011-S

Spring Retainer

$6.49

$

In Stock, Qty 14

0

8

Cub Cadet KH-66-032-05-S

Valve Stem Seal
(Superseded to KH-25-032-14-S)

$11.99

$

In Stock, Qty 20+

0

9

Cub Cadet KH-24-017-01

Intake Valve (STD)

$

$

Not available

10

Cub Cadet KH-24-016-01

Exhaust Valve (STD)
(Superseded to KH-32-016-01-S)

$14.99

$

In Stock, Qty 6

0

11

Cub Cadet KH-32-326-06-S

Breather Hose Kit (Inc. #13)

$17.99

$

In Stock, only 1 left!

0

12

Cub Cadet KH-25-237-14-S

Hose Clamp, 1.2
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, Qty 7

0

13

Cub Cadet KH-32-081-02-S

Breather Housing Kit (Inc. #15 & 16)

$2.49

$

In Stock, only 1 left!

0

14

Cub Cadet KH-M-547050-S

Lock Nut, M5 x .8

$2.49

$

In Stock, Qty 6

0

15

Cub Cadet KH-32-468-01-S

Sealing Washer

$2.99

$

In Stock, only 1 left!

0

16

Cub Cadet KH-32-072-03-S

Breather Cover Stud

$2.99

$

Usually ships in 2-5 days

0

17

Cub Cadet KH-32-019-02-S

Tappet

$13.99

$

In Stock, Qty 11

0

18

Cub Cadet KH-32-841-01-S

Cylinder Head Gasket Kit
(Superseded to KH-32-841-02-S)

$19.99

$

In Stock, Qty 20+

0

19

Cub Cadet KH-62-086-08-S

Flange Screw, M10 x 1.5 x 90

$5.49

$

In Stock, Qty 5

0

20

Cub Cadet KH-24-755-141-S

Breather Valve Cover Kit (Inc. #2 & 3)

$35.99

$

In Stock, Qty 6

0

21

Cub Cadet KH-25-445-01-S

Lifting Strap
(Superseded to KH-25-445-03-S)

$2.49

$

In Stock, only 1 left!

0

22

Cub Cadet KH-M-645016-S

Flange Screw, M6 x 1.0 x 16

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet KH-32-096-04-S

Breather Cover Kit (Inc. #32)

$2.99

$

Usually ships in 2-5 days

0

24

Cub Cadet KH-32-050-01-S

Breather Filter

$2.99

$

In Stock, only 1 left!

0

25

Cub Cadet KH-32-318-13-S

#1 Cylinder Head Assembly Kit
(Superseded to KH-32-755-39-S)

Note: (Inc. Exhaust Mounting Hardware)

$179.99

$

In Stock, only 4 left!

0

26

Cub Cadet KH-32-318-14-S

#2 Cylinder Head Assembly Kit
(Superseded to KH-32-318-22-S)

Note: (Inc. Exhaust Mounting Hardware)

$

$

Not available

27

Cub Cadet KH-32-146-09-S

Guide Plate

$2.49

$

In Stock, Qty 9

0

28

Cub Cadet KH-32-072-04-S

Rocker Stud

$4.99

$

In Stock, Qty 9

0

29

Cub Cadet KH-32-186-03-S

Rocker Arm

$6.49

$

In Stock, Qty 15

0

30

Cub Cadet KH-32-100-05-S

Hex Nut Assembly (Inc. #39)

$3.99

$

In Stock, Qty 10

0

31

Cub Cadet KH-25-086-168-S

Set Screw

$4.49

$

In Stock, Qty 9

0

32

Cub Cadet KH-25-599-01-S

Rocker Arm Pivot

$2.49

$

In Stock, Qty 10

0

33

Cub Cadet KH-32-411-04-S

Push Rod

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet KH-32-326-07-S

Fuel Pump Hose w/ Clamp Kit (Inc. #44)

$4.49

$

In Stock, Qty 10

0

35

Cub Cadet KH-25-237-01-S

Hose Clamp

$3.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-32-755-03-S

Cylinder Head Hardware Kit

Note: (Inc. #5-11, 19, 22, 25 & 34), Not shown

$69.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-041-49-S

Exhaust Gasket

Note: Not shown

$

$

Not available

Cub Cadet KH-24-153-27-S

Intake Port O-Ring

Note: Not shown

$3.49

$

In Stock, Qty 7

0
