Z-Force 60 (53AA5BBJ710) - Cub Cadet 60" Z-Force Zero-Turn Mower, Kohler Electrical Engine Assembly 23 HP Parts Diagram

60" Z-Force Zero-Turn Mower, Kohler

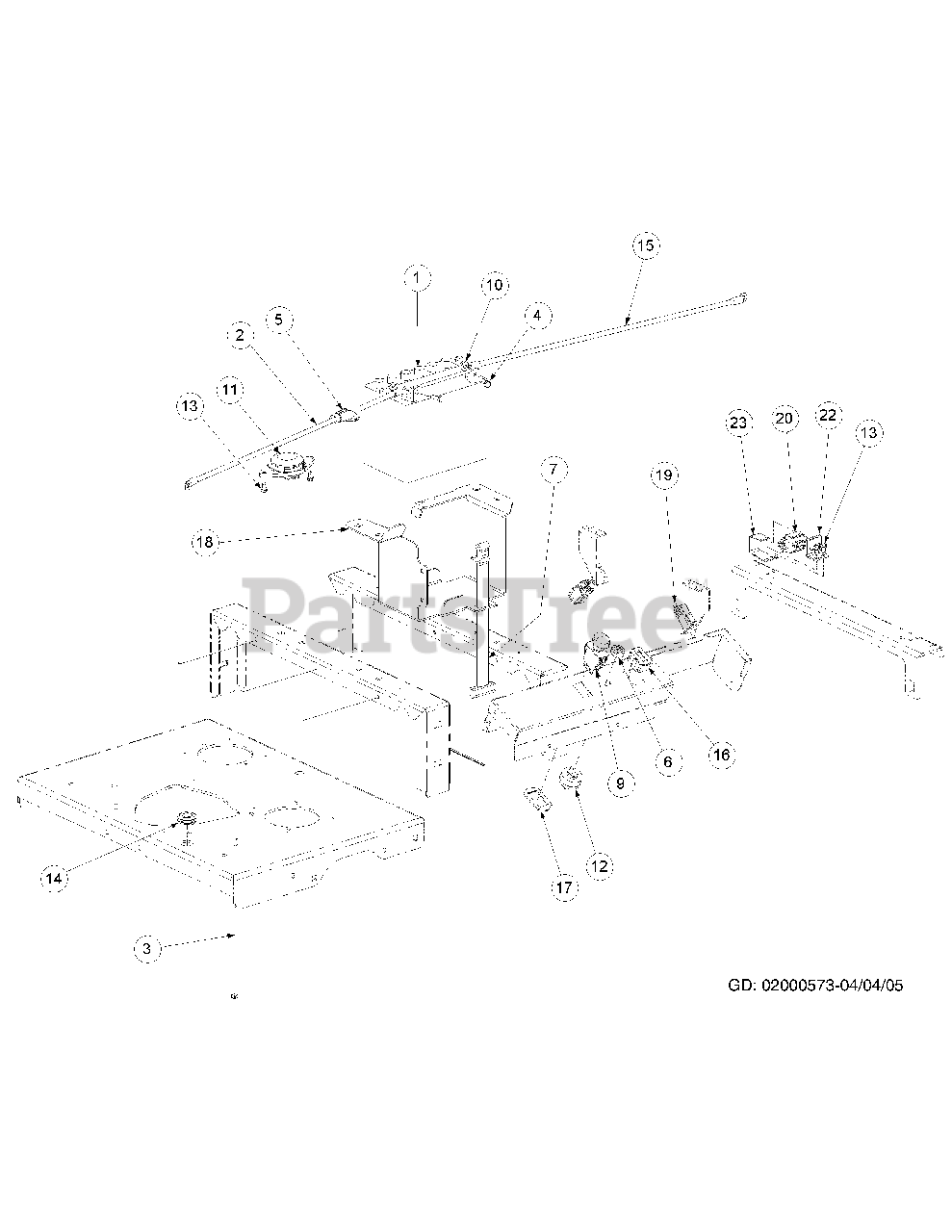

Electrical Engine Assembly 23 HP Parts Diagram

  • Title

1

Cub Cadet 00012032

Battery
(Superseded to 925-1707D)

$

$

Not available

2

Cub Cadet 00012289

Cable, Battery, Red, 36"

$

$

Not available

3

Cub Cadet 00012470

Tie, Cable, 3/16 x .05 x 7.4"
(Superseded to 725-0157)

$3.99

$

In Stock, only 4 left!

0

4

Cub Cadet 00013131

Screw, Hex, Cap, 1/4-20 x .75

$6.49

$

In Stock, only 1 left!

0

5

Cub Cadet 00013258

Boot, 1" OD Rubber Battery-PST, Red

$9.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 00032097

Nut, W/Cap, 5/8-32 Ignition
(Superseded to 00032097P)

$

$

Not available

7

Cub Cadet 723-3064

Strap, Battery

$29.99

$

In Stock, only 4 left!

0

8

Cub Cadet 01001811

Hourmeter, Harness (not shown)
(Superseded to 929-04195)

$8.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 01002111

Switch, Electric, PTO
(Superseded to 925-1716A)

$73.99

$

In Stock, Qty 20+

0

10

Cub Cadet 01002766

Nut, 1/4-20, Hex Flange Lock Nut
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 01003277

Switch, Seat N/C

$39.99

$

In Stock, only 4 left!

0

12

Cub Cadet 01003581

Switch, Ignition, 6 Pin
(Superseded to 01003581P)

$69.99

$

In Stock, Qty 20+

0

12

Cub Cadet 725-1341B

Key, Ignition

Note: Not Shown

$10.99

$

In Stock, only 2 left!

0

13

Cub Cadet 01000628

Screw, TT, 1/4-20 x .5, Hex Index Washer
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 01004040

Grommet, .75 ID
(Superseded to 735-04285)

$3.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 01004078

Cable, Battery Black, 28"

$38.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 01005389

Meter, Hour
(Superseded to 925-04893A)

$165.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 01009905

Bracket, PTO Switch Retainer

$27.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 02000909

Mount Bracket, Battery
(Superseded to 02000897-0637)

$

$

Not available

19

Cub Cadet 02000024

Switch, Safety
(Superseded to 925-3164A)

$40.99

$

In Stock, Qty 13

0

20

Cub Cadet 02000165

Switch, Plunger
(Superseded to 725-04232)

$49.99

$

In Stock, Qty 10

0

22

Cub Cadet 02000349

Switch Bracket Mount

$

$

Not available

23

Cub Cadet 02000348

Switch Clamp

$

$

Not available

Cub Cadet 02000167

Harness Assembly, Kohler

Note: Not Shown

$

$

Not available
