Z-Force 60 (53AA5BBJ710) - Cub Cadet 60" Z-Force Zero-Turn Mower, Kohler Kohler Engine Assembly 23 HP Parts Diagram

60" Z-Force Zero-Turn Mower, Kohler

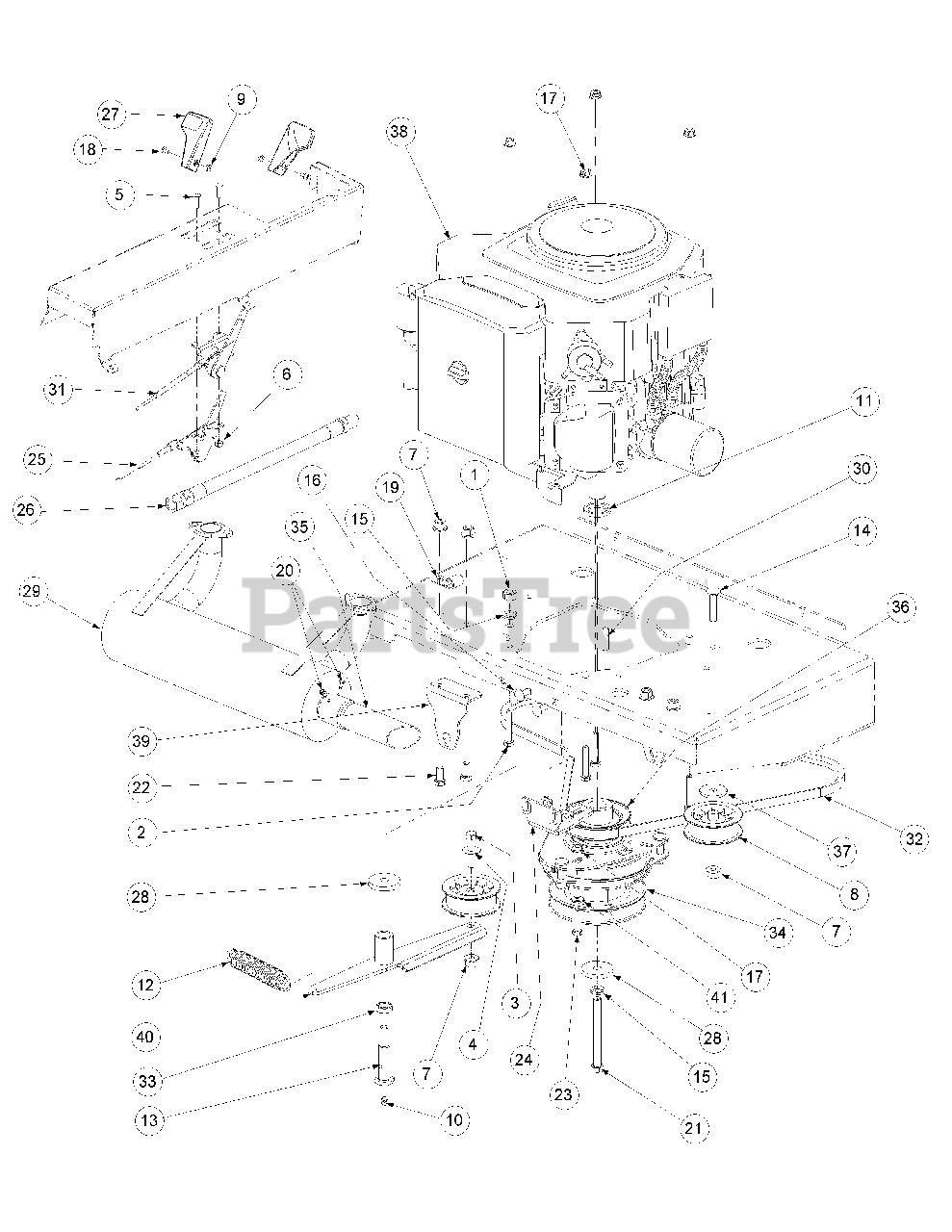

Kohler Engine Assembly 23 HP Parts Diagram

  • Title

1

Cub Cadet 00005763

Hex Nut, 7/16-14
(Superseded to 912-3019)

$6.49

$

In Stock, only 2 left!

0

2

Cub Cadet 00006129

HHCS, 5/16-18, 1-3/4

$6.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 00008495

Capscrew, 3/8-16 x 1-3/4

$6.49

$

In Stock, Qty 9

0

4

Cub Cadet 00012158

Washer

$4.49

$

In Stock, Qty 10

0

5

Cub Cadet 00014602

Round Hd. Machine Screw, 10-32 x 3/4

$

$

Not available

6

Cub Cadet 00014608

Lock Nut, Nylon Insert, 10-32
(Superseded to 712-05003)

$2.99

$

In Stock, only 3 left!

0

7

Cub Cadet 00022560

Flange Lock, Hex Nut, 3/8-16
(Superseded to 712-05007)

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 00030782

Idler Pulley w/ Adaptor
(Superseded to 02004558)

$21.99

$

In Stock, Qty 15

0

9

Cub Cadet 00060056

Nut Washer, W/Star, 8-32

$6.49

$

In Stock, only 1 left!

0

10

Cub Cadet 00060078

Grease Fitting, 1/4-28 x 3/16
(Superseded to 737-04345)

$4.49

$

In Stock, Qty 16

0

11

Cub Cadet 00073094

Engine Spacer

$13.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 01000199

Extension Spring, 1.0 OD x 5.00

$16.99

$

In Stock, Qty 20+

0

13

Cub Cadet 01000302

Shoulder Screw, 7/16-14
(Superseded to 738-3102)

$19.99

$

In Stock, Qty 12

0

14

Cub Cadet 01000364

Hex Carriage Screw, 3/8-16, 1.75
(Superseded to 710-0560)

$6.49

$

In Stock, Qty 17

0

15

Cub Cadet 01000389

Lock Washer, 7/16
(Superseded to 936-0171)

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 00020508

Carriage Bolt:5/16-18 x 3/4

$6.49

$

In Stock, only 3 left!

0

17

Cub Cadet 01000635

Hexflange Lock Nut, 5/16-18
(Superseded to 712-3004A)

$3.49

$

In Stock, Qty 20+

0

18

Cub Cadet 01000721

Machine Screw, 8-32, .375
(Superseded to 710-3217)

$6.49

$

In Stock, Qty 10

0

19

Cub Cadet 01000728

Clip, Heat Shield Cable
(Superseded to 726-04124)

$3.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 01000811

Tube Clamp, 1.375
(Superseded to 710-0148)

$3.99

$

In Stock, Qty 16

0

21

Cub Cadet 01008637

HHCS, 7/16-20 x 4.00
(Superseded to 710-04248)

$10.99

$

In Stock, only 1 left!

0

22

Cub Cadet 01002601

Hex Cap Screw, 3/8-16, .750
(Superseded to 710-0216)

$3.99

$

In Stock, Qty 17

0

23

Cub Cadet 00013116

Hex Cap Screw:5/16-18 x 1-1/4

$5.49

$

In Stock, only 1 left!

0

24

Cub Cadet 02001994

Retainer Clutch Assembly, Ogura
(Superseded to 02001992-0637)

$28.99

$

In Stock, only 1 left!

0

25

Cub Cadet 01003273

Throttle, Control Cable, 45.0
(Superseded to 01003273P)

$

$

Not available

26

Cub Cadet 01003283

Oil Drain Hose

$78.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 737-0103

Oil Drain Plug
(Superseded to 737-04202)

Note: not shown

$6.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 01004004

Control Throttle Knob
(Superseded to 731-04914)

$12.99

$

In Stock, only 3 left!

0

28

Cub Cadet 01005314

Flat Washer, 7/16 IDx 1.750 OD x .250T
(Superseded to 736-04131)

$14.99

$

In Stock, only 4 left!

0

29

Cub Cadet 01006566

23HP Kohler Exhaust
(Superseded to 01006566P)

$

$

Not available

30

Cub Cadet 00033670

Key, 1/4 x 1/4 x 1.25

$

$

Not available

31

Cub Cadet 01008256

Choke, Control Cable, 38.0

$

$

Not available

32

Cub Cadet 01008349

V-Belt, 56.00
(Superseded to 01008349P)

$31.99

$

In Stock, Qty 20+

0

33

Cub Cadet 01008404

Spacer, .635 ID x .28

$14.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 759-04211

Electric Clutch OGURA

Note: Replaces 717-04183 In This Application

$

$

Not available

35

Cub Cadet 01008623

Muffler Accessory Exhaust Tube

$

$

Not available

36

Cub Cadet 01008808

Transmission Drive Pulley
(Superseded to 02003417)

$57.99

$

In Stock, Qty 11

0

37

Cub Cadet 01009253

Washer, 5/16-18
(Superseded to 936-0227)

$

$

Not available

38

Cub Cadet KH-PA-75592

23HP Kohler Engine
(Superseded to KH-CV680-3034)

Note: use 10W40 engine oil

$

$

Not available

39

Cub Cadet 02001545

Neutral Lock Mounting Bracket

$

$

Not available

40

Cub Cadet 02001596

Engine Idler Arm Assembly Includes:

$173.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 01000308

Bearing
(Superseded to 741-04555)

Note: not shown

$15.99

$

In Stock, Qty 10

0

41

Cub Cadet 00009812

Flat Washer, 5/16

$

$

Not available

Cub Cadet KH-24-083-03-S

Air Filter
(Superseded to KH-24-883-03-S1)

Note: not shown

$27.99

$

In Stock, Qty 19

0

Cub Cadet KH-24-083-05-S

Pre Filter
(Superseded to KH-24-883-03-S1)

Note: not shown

$27.99

$

In Stock, Qty 19

0

Cub Cadet KH-24-050-10-S

Fuel Filter
(Superseded to 2405013S1C)

Note: not shown

$12.99

$

In Stock, Qty 20+

0

Cub Cadet KH-12-050-08

Oil Filter
(Superseded to KH-12-050-01-S)

Note: not shown

$13.99

$

In Stock, Qty 20+

0

Cub Cadet 759-3336

Spark Plug
(Superseded to RC12YC)

Note: not shown

$3.49

$

In Stock, Qty 20+

0
