Z-Force 60 (53AA5DBJ709) - Cub Cadet 60" Z-Force Zero-Turn Mower, Kawasaki Floor Panel Assembly Parts Diagram

60" Z-Force Zero-Turn Mower, Kawasaki

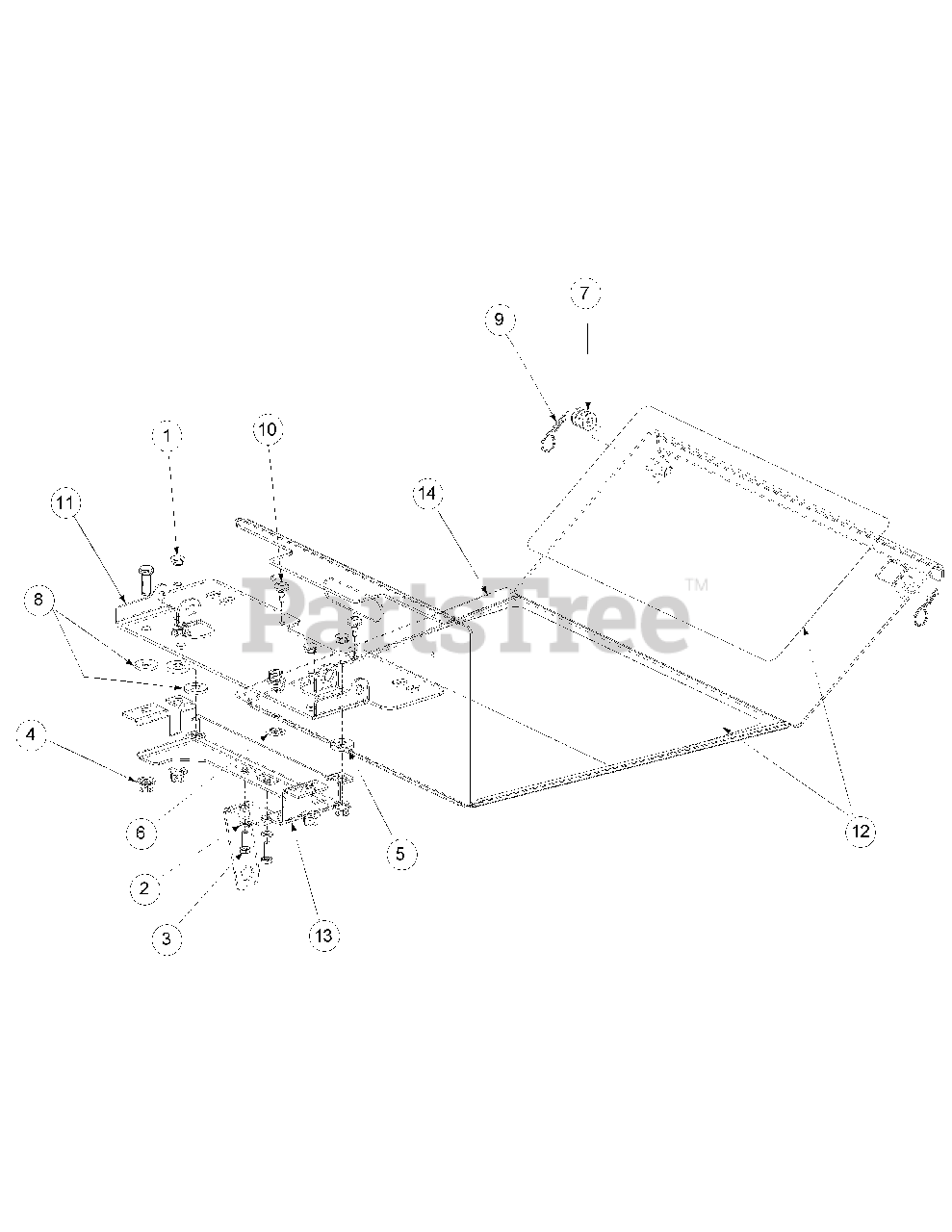

Floor Panel Assembly Parts Diagram

  • Title

1

Cub Cadet 00006144

Hex Cap Screw, 3/8-16, x 1

$6.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 00012132

Lock Washer, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

3

Cub Cadet 00013131

Hex Cap Screw, 1/4-20, .75

$6.49

$

In Stock, only 1 left!

0

4

Cub Cadet 00022560

Hex Nut, Flange Lock, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 00083192

Washer
(Superseded to 736-0258)

$4.49

$

In Stock, only 2 left!

0

6

Cub Cadet 01000372

Carriage Bolt, 3/8-16 x .75 Long
(Superseded to 710-3178)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 00012158

Flat Washer, 3/8

$4.49

$

In Stock, Qty 10

0

8

Cub Cadet 01000723

Flat Washer, .406 ID, 1.0 OD, .105
(Superseded to 736-3052)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 00021956

Hair Pin
(Superseded to 914-04023)

$4.49

$

In Stock, Qty 18

0

10

Cub Cadet 01001170

Rubber Bumper, .62 OD x .22 Thick
(Superseded to 935-0199A)

$7.99

$

In Stock, Qty 15

0

11

Cub Cadet 01004905

Panel Seat

$

$

Not available

12

Cub Cadet 01006528

Foot Abrasive Pad

$

$

Not available

13

Cub Cadet 02001956

Support, Seat Bracket

$

$

Not available

14

Cub Cadet 02001598

Floor Panel Assembly

$

$

Not available
