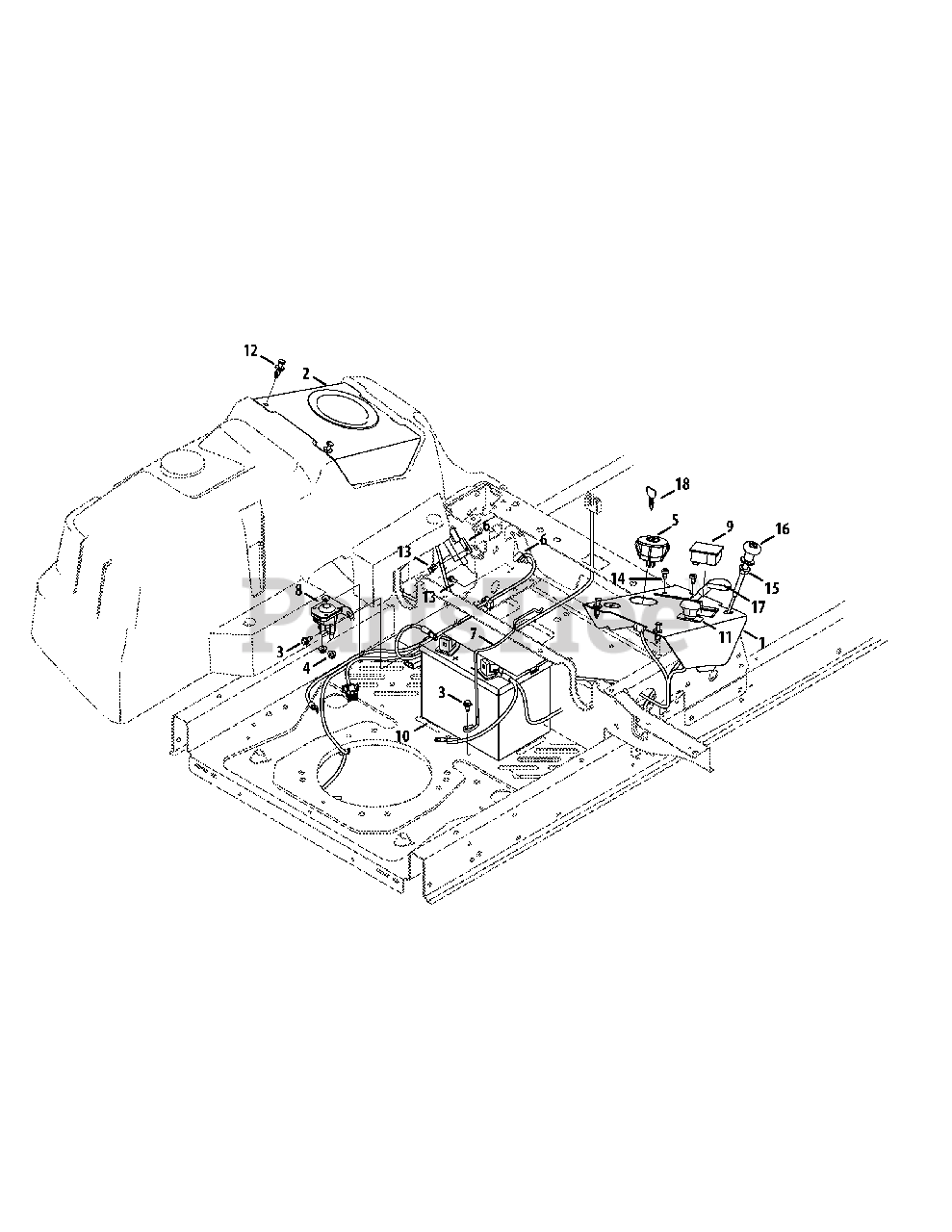

Z-Force L48 (17ASDALB010) - Cub Cadet 48" Z-Force Zero-Turn Mower (2014) Electrical Parts Diagram

48" Z-Force Zero-Turn Mower

Electrical Parts Diagram

  • Title

1

Cub Cadet 703-09337A-4021

Console Cover, RH

$49.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-09338A-4021

Console Cover, LH

$47.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-1652

Hex Washer Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 925-04228

Key Switch

$39.99

$

In Stock, Qty 20+

0

6

Cub Cadet 725-04363

Interlock Switch

$15.99

$

In Stock, Qty 20+

0

7

Cub Cadet 747-05685-0637

Battery Rod

$18.99

$

In Stock, only 4 left!

0

8

Cub Cadet 725-06153

Solenoid
(Superseded to 725-06153A)

$42.99

$

In Stock, Qty 20+

0

9

Cub Cadet 925-06154

Hour Meter/Service Minder
(Superseded to 925-06170B)

$70.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 925-1707D

Battery

$

$

Not available

11

Cub Cadet 925-3233

Electric PTO Switch
(Superseded to 925-3233A)

$51.99

$

In Stock, Qty 20+

0

12

Cub Cadet 728-0199

Plastic Rivet

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 738-04237A

Shoulder Screw, #10-32 x .500

$6.49

$

In Stock, Qty 20+

0

14

Cub Cadet 710-05070

Screw, 1/4-20 x .50
(Superseded to 710-05070A)

$6.99

$

In Stock, Qty 12

0

15

Cub Cadet 912-3005

Flange Lock Nut, 3/8-16
(Superseded to 712-3005)

$6.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 946-04214

Choke Cable

$47.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 946-05133

Throttle Cable

$47.99

$

In Stock, Qty 5

0

18

Cub Cadet 625-05000

Key, Assembly
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

Cub Cadet 925-06000A

Harness Assembly
(Superseded to 925-06000B)

Note: (not shown)

$203.99

$

Usually ships in 3-6 days

0
