Z-Force L48 (17ASDALB010) - Cub Cadet 48" Z-Force Zero-Turn Mower (2014) Operators Platform Parts Diagram

48" Z-Force Zero-Turn Mower

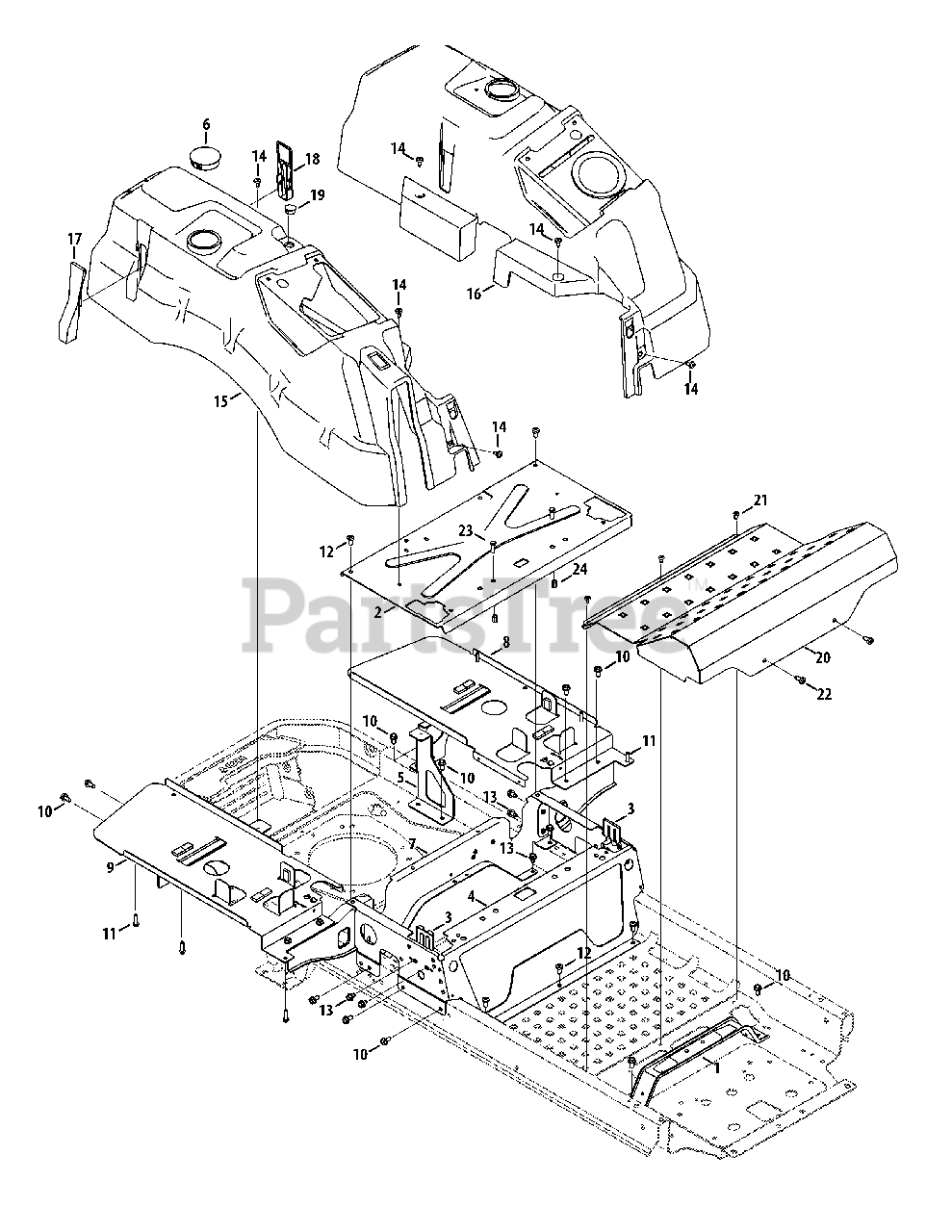

Operators Platform Parts Diagram

  • Title

1

Cub Cadet 703-08620A-4021

Steering Support Bracket

$36.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-09045B-0637

Seatbox Plate
(Superseded to 703-09045J-0637)

$47.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-09211A-0637

Lapbar Brace Bracket

$8.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-09320-0637

Seat Frame
(Superseded to 703-09320F-0637)

$100.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-09326-4021

Rear Support Bracket, LH
(Superseded to 703-09326A-4021)

$37.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-09330-4021

Rear Support Bracket, RH
(Superseded to 703-09330A-4021)

$37.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 731-10097

Plug, 2.50 Dia.

$8.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-09332A-0637

Rear Seatbox Brace
(Superseded to 703-11179)

$49.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-09404A-0637

Tank Support Plate, LH

$82.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-09775-0637

Tank Support Plate, RH

$82.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-05109

Hex Washer Screw, 5/16-14 x 1.00

$3.99

$

In Stock, Qty 12

0

12

Cub Cadet 710-05424

Self Tapping Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0607

Hex Washer Screw, 5/16-18 x .50

$6.99

$

In Stock, Qty 11

0

14

Cub Cadet 738-04549A

Shoulder Screw, 1/4-20

$7.99

$

In Stock, Qty 5

0

15

Cub Cadet 931-09529

RH Console

$123.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 931-09543

LH Console

$123.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 731-10094

Outer Pod Plug
(Superseded to 731-10094A)

$8.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 731-10095

Inner Pod Plug
(Superseded to 731-10095A)

$7.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 731-10096

Plug, .875 Dia.

$3.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 603-05094-0637

Floor Board, Fab
(Superseded to 603-05094A-0637)

$177.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 710-05070

Screw, 1/4-20 x .50
(Superseded to 710-05070A)

$7.49

$

In Stock, only 2 left!

0

22

Cub Cadet 710-06096

Screw, 5/16-18 x .75

$7.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 710-0376

Hex Cap Screw, 5/16-18 x 1.00

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 728-05012

Nut, 5/16-18

$5.99

$

Usually ships in 3-6 days

0
