Z-Force L48 Camo (17CSDALB056) - Cub Cadet 48" Z-Force Zero-Turn Mower, Camo (2016) Consoles Parts Diagram

48" Z-Force Zero-Turn Mower, Camo

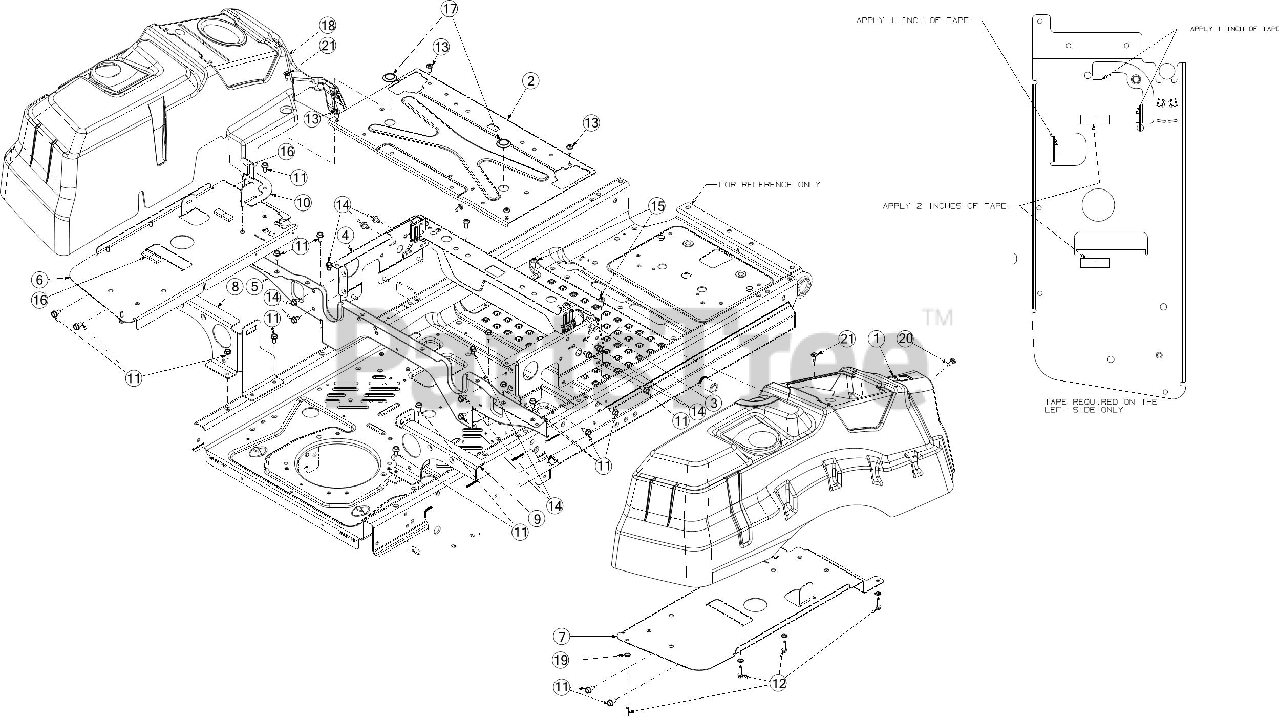

Consoles Parts Diagram

  • Title

1

Cub Cadet 731-10094A

CONSOLE PLUG (RH) OUTER

Note: (Not Shown)

$8.49

$

Usually ships in 3-6 days

0

1

Cub Cadet 731-10095A

CONSOLE PLUG (RH) INNER

Note: (Not Shown)

$7.49

$

Usually ships in 3-6 days

0

1

Cub Cadet 731-10096

CONSOLE PLUG (RH)

Note: (Not Shown)

$3.49

$

Usually ships in 3-6 days

0

1

Cub Cadet 731-10097

FUEL NECK PLUG

Note: (Not Shown)

$8.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 931-05340

CONSOLE ASSEMBLY (RH) (CAMO)

$711.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-09045F-0637

SEATBOX TOP PLATE
(Superseded to 703-09045J-0637)

$47.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-09211A-0637

LAPBAR BRACE BRACKET

$8.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-09320A-0637

SEAT FRAME
(Superseded to 703-09320F-0637)

$100.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-09332A-0637

REAR SEATBOX BRACE
(Superseded to 703-11179)

$49.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-10142A-0637

TANK SUPPORT PLATE (LH)
(Superseded to 703-10142B-0637)

$99.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-10143A-0637

TANK SUPPORT PLATE (RH)

$113.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-10312-0637

REAR BRACKET SUPPORT (LH)

$55.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-10313-0637

REAR BRACKET SUPPORT (RH)

$51.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-10388A-0637

REAR TANK BRACKET

$11.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 710-05109

SCREW 5/16-14 x 1

$3.99

$

In Stock, only 2 left!

0

13

Cub Cadet 710-05424

SCREW 5/16-18 x .750

$3.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-0607

SCREW 5/16-18 x .500

$6.99

$

In Stock, Qty 20+

0

15

Cub Cadet 710-06096

SCREW 5/16-18 X.75

$7.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 722-3022A

FOAM TAPE .625 WIDE x .25 THK BULK

$19.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 726-3045A

PLUG

$4.99

$

In Stock, Qty 15

0

18

Cub Cadet 931-11614

CONSOLE ASSEMBLY (LH) (CAMO)

$703.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 736-0607

WASHER

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 738-04549A

TORX SHOULDER SCREW 1/4-20

$7.99

$

In Stock, Qty 12

0

21

Cub Cadet 738-05090

SHOULDER SCREW M6-1 .368 X.115

$3.49

$

In Stock, Qty 6

0
