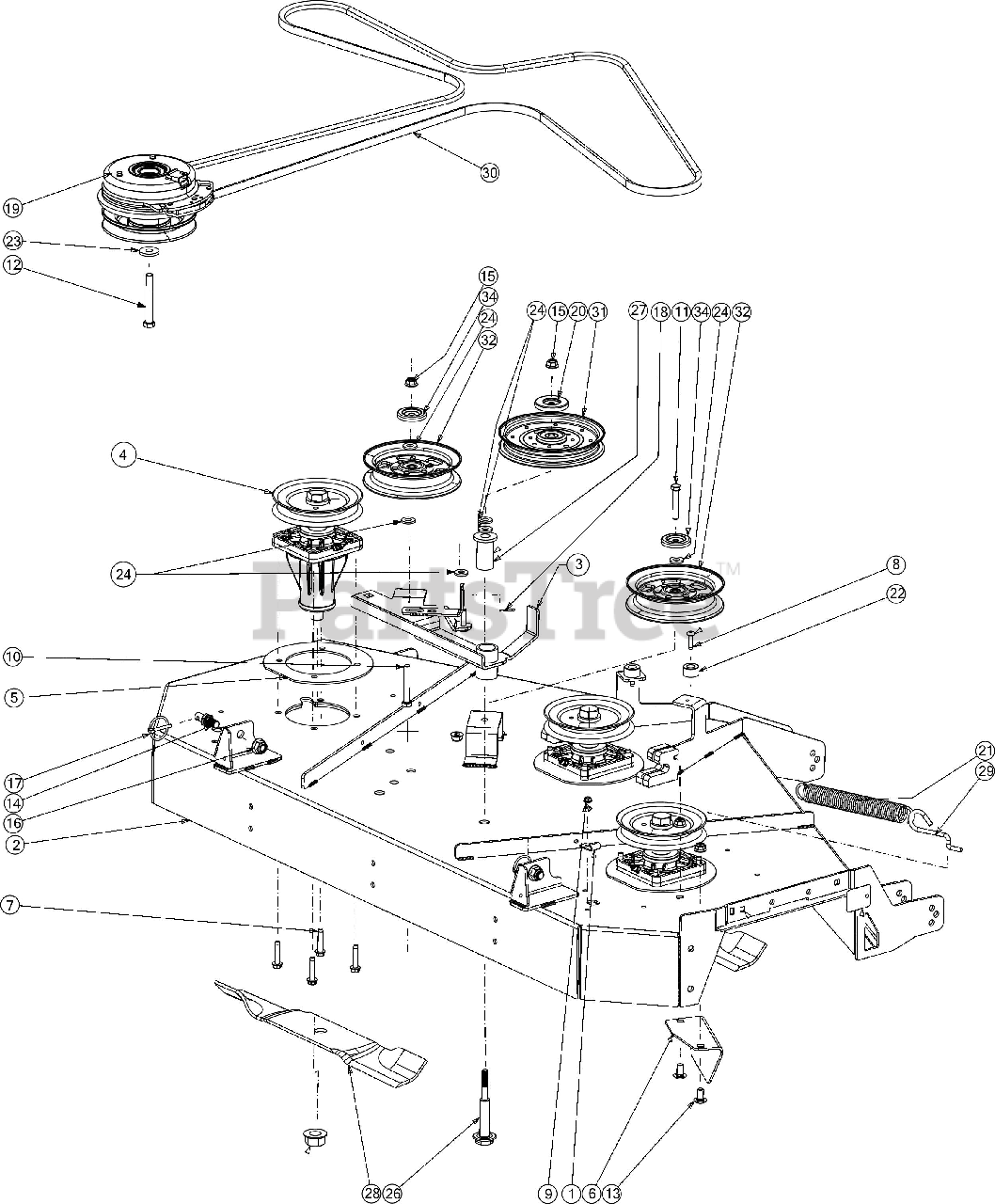

Z-Force L54 (17CSDALC010) - Cub Cadet 54" Z-Force Zero-Turn Mower (2016) Deck Assembly Parts Diagram

54" Z-Force Zero-Turn Mower

Deck Assembly Parts Diagram

  • Title

1

Cub Cadet 96606

HOOK RETAINING BRACKET

$7.49

$

In Stock, Qty 12

0

2

Cub Cadet 603-05096A

54" FAB DECK SHELL
(Superseded to 903-05096B)

$1502.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 603-05266

54/60" DECK IDLER ASSEMBLY
(Superseded to 903-05266)

$146.99

$

In Stock, only 2 left!

0

3

Cub Cadet 703-09583-0637

BELT GUARD BRACKET

Note: Not Shown

$13.99

$

In Stock, only 3 left!

0

4

Cub Cadet 710-06120

SCREW 3/4-16 X 8.25 GR5

Note: Not Shown

$17.99

$

In Stock, only 4 left!

0

4

Cub Cadet 712-3078

HEX FLANGE NUT 3/4

Note: Not Shown

$9.99

$

In Stock, Qty 20+

0

4

Cub Cadet 748-3065A

DECK SPINDLE SPACER

Note: Not Shown

$13.99

$

In Stock, Qty 20+

0

4

Cub Cadet 750-05553

SPACER .812 ID X .218 LG

Note: Not Shown

$9.99

$

In Stock, Qty 20+

0

4

Cub Cadet 750-06139

SPACER

Note: Not Shown

$11.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 750-06145

SPACER

Note: Not Shown

$6.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 756-04459A

V-PULLEY 5.768 DIA

Note: Not Shown

$33.99

$

In Stock, Qty 5

0

4

Cub Cadet 918-06993A

BLADE SPINDLE ASSEMBLY (W/PULLEY)

$195.99

$

In Stock, Qty 9

0

4

Cub Cadet 921-3018A

SINGLE LIP SEAL

Note: Not Shown

$8.49

$

In Stock, Qty 20+

0

4

Cub Cadet 937-3000

GREASE FITTING

Note: Not Shown

$4.99

$

In Stock, Qty 20+

0

4

Cub Cadet 941-04089

BEARING CONE
(Superseded to 941-04298)

Note: Not Shown

$16.99

$

In Stock, Qty 20+

0

4

Cub Cadet 941-04091

BEARING CUP
(Superseded to 941-04299)

Note: Not Shown

$6.99

$

In Stock, Qty 20+

0

5

Cub Cadet 703-07787-4021

SPINDLE REINFORCEMENT PLATE
(Superseded to 703-07787-0637)

$33.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-09593-0637

DECK CHUTE BAFFLE
(Superseded to 703-09593A-0637)

$28.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-04605A

SCREW 5/16-18 X 1.50
(Superseded to 710-04605B)

$6.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-05074

SCREW 1/4-20 X 1.0

$3.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0859

HEX SCREW-3/8-16X2.5 GR5

$6.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3144

SCREW 3/8-16 X 2.0 GR5

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-3157A

SCREW 7/16-20 x 3.25 GR5

$10.99

$

In Stock, Qty 10

0

13

Cub Cadet 710-3178

CARRIAGE BOLT 3/8-16 X .75

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 711-06200A

DECK PIN
(Superseded to 711-06200B)

$6.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-04150

NUT

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 753-04070

LYNCH PIN

$9.99

$

In Stock, Qty 20+

0

18

Cub Cadet 914-0507

COTTER PIN 3/32

$4.49

$

In Stock, Qty 19

0

19

Cub Cadet 917-05192

ELECTRIC PTO CLUTCH

$623.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 721-04516

PULLEY CAP

$14.99

$

In Stock, only 1 left!

0

21

Cub Cadet 732-04927

EXTENSION SPRING

$22.99

$

In Stock, Qty 5

0

22

Cub Cadet 735-05147

BUMPER

$5.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 736-0322

FLAT WASHER .445 X 1.248 X .170

$9.49

$

In Stock, Qty 20+

0

24

Cub Cadet 936-3004

FLAT WASHER
(Superseded to 736-3004)

$

$

Not available

26

Cub Cadet 738-05049A

SHOULDER BOLT

$13.99

$

In Stock, Qty 8

0

27

Cub Cadet 741-05056

SHOULDER SPACER

$11.99

$

In Stock, only 4 left!

0

28

Cub Cadet 942-04416

19" BLADE (HI LIFT)

$28.99

$

In Stock, Qty 20+

0

29

Cub Cadet 747-05608

DECK SPRING HOOK
(Superseded to 747-05608A)

$3.49

$

In Stock, Qty 7

0

30

Cub Cadet 954-05013

V-BELT B SEC X 154

$83.99

$

In Stock, only 2 left!

0

31

Cub Cadet 756-04487

IDLER PULLEY

$66.99

$

In Stock, only 4 left!

0

32

Cub Cadet 756-05053

IDLER PULLEY 5.0
(Superseded to 756-05053A)

$83.99

$

In Stock, only 1 left!

0

34
