Z-Force LE60 KH FAB (17ATDAGD009) - Cub Cadet 60" Z-Force Zero-Turn Mower, Fab Deck, Kohler (2016) Engine Accessories Parts Diagram

60" Z-Force Zero-Turn Mower, Fab Deck, Kohler

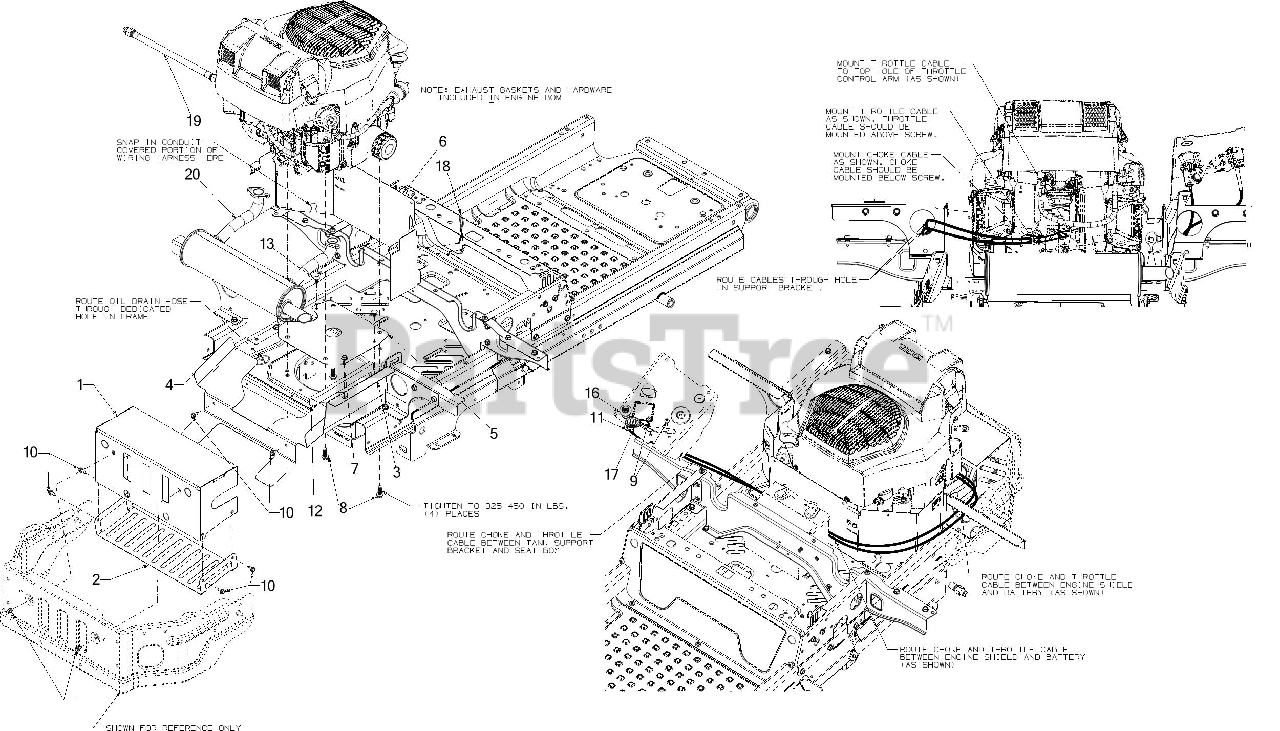

Engine Accessories Parts Diagram

  • Title

1

Cub Cadet 603-05169A

MUFFLER SHIELD BRACKET

$210.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-09700

LOWER MUFFLER BRACKET

$48.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-09706

POD SHIELD BRACKET (RH)

$39.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-09752

MUFFLER BRACKET

$69.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-09796

ENGINE SHIELD PLATE

$27.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-10278-0637

ENGINE SHIELD BRACKET

$118.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-04683C

SCREW 3/8-16 x 1

$6.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-05070A

SCREW 1/4-20 x .5

$6.99

$

In Stock, Qty 7

0

10

Cub Cadet 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 912-3005

HEX FLANGE NUT
(Superseded to 712-3005)

$6.99

$

In Stock, Qty 6

0

12

Cub Cadet 721-04713

FOAM-TAPE 1.00 x .500 x 9.375

$9.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 726-3046

RATCHET CLIP .250

$3.99

$

In Stock, Qty 15

0

16

Cub Cadet 946-04214

61" CHOKE CABLE

$47.99

$

In Stock, Qty 9

0

17

Cub Cadet 946-05133

THROTTLE CABLE 59"

$47.99

$

In Stock, Qty 5

0

18

Cub Cadet 747-06306

TANK SUPPORT ROD

$5.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 751-10291A

OIL DRAIN HOSE
(Superseded to 751-10291C)

$

$

Not available

20

Cub Cadet 751-11879B

ROUND MUFFLER

$255.99

$

Usually ships in 3-6 days

0
