Z-Force LX54 KW FAB (17AIDAUC010) - Cub Cadet 54" Z-Force Zero-Turn Mower, Fab Deck, Kawasaki (2017) Lapbar Adjustment Parts Diagram

54" Z-Force Zero-Turn Mower, Fab Deck, Kawasaki

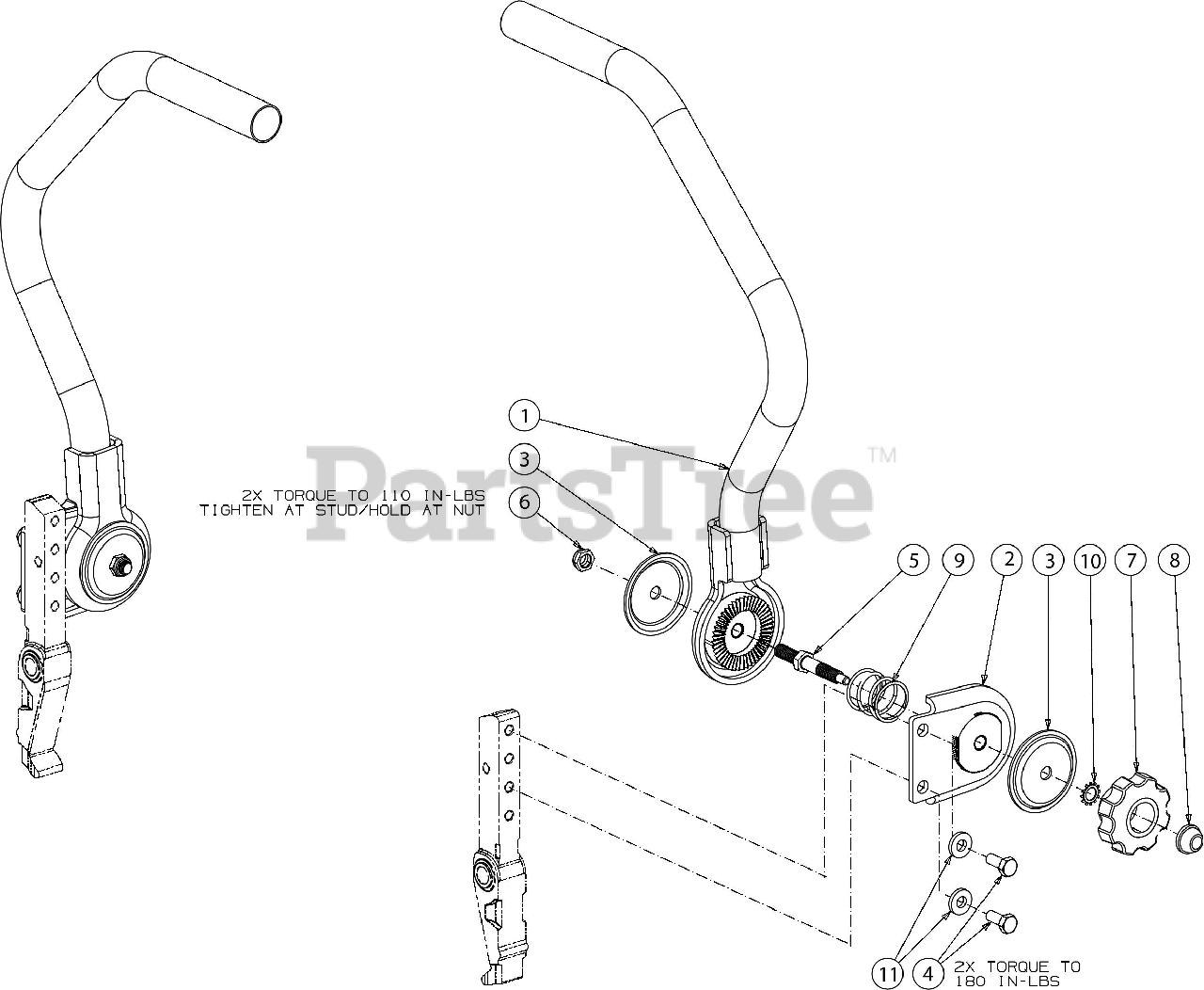

Lapbar Adjustment Parts Diagram

  • Title

1

Cub Cadet 903-05111A

ADJUSTABLE LAPBAR ASSEMBLY
(Superseded to 903-05111B)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 903-05111A-0637

LAPBAR ASM-ADJUSTA - POWDER BLACK (0637)

$105.99

$

Usually ships in 3-6 days

0

Cub Cadet 903-05111A-4021

LAPBAR ASM-ADJUSTA - CUB YELLOW 2 (4021)

$98.99

$

Usually ships in 3-6 days

0

$85.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603E05113

LAPBAR ADJUSTMENT PLATE ASSEMBLY

$61.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-09831

LAPBAR ADJUSTMENT CUP

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-09831-0637

CUP-LAPBAR ADJUSTM - POWDER BLACK (0637)

$12.99

$

Usually ships in 3-6 days

0

$10.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-1880

SCREW 5/16-18 x .750

$4.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 711-06208

LAPBAR ADJUSTMENT STUD

$11.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 912-3020

TOP LOCK NUT

$6.99

$

In Stock, Qty 9

0

7

Cub Cadet 720-05049

LAPBAR ADJUSTMENT KNOB

$10.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 726-05029

PUSH CAP .250

$3.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 732-04630

COMPRESSION SPRING

$5.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 736-0148

LOCK WASHER 3/8

$3.99

$

In Stock, Qty 19

0

11

Cub Cadet 936-3008

FLAT WASHER

$7.49

$

Usually ships in 3-6 days

0
