Z-Force LZ48 (53ATDAGB050) - Cub Cadet 48" Z-Force Zero-Turn Mower (2014) Kohler ZT730-3011 Crankcase Parts Diagram

48" Z-Force Zero-Turn Mower

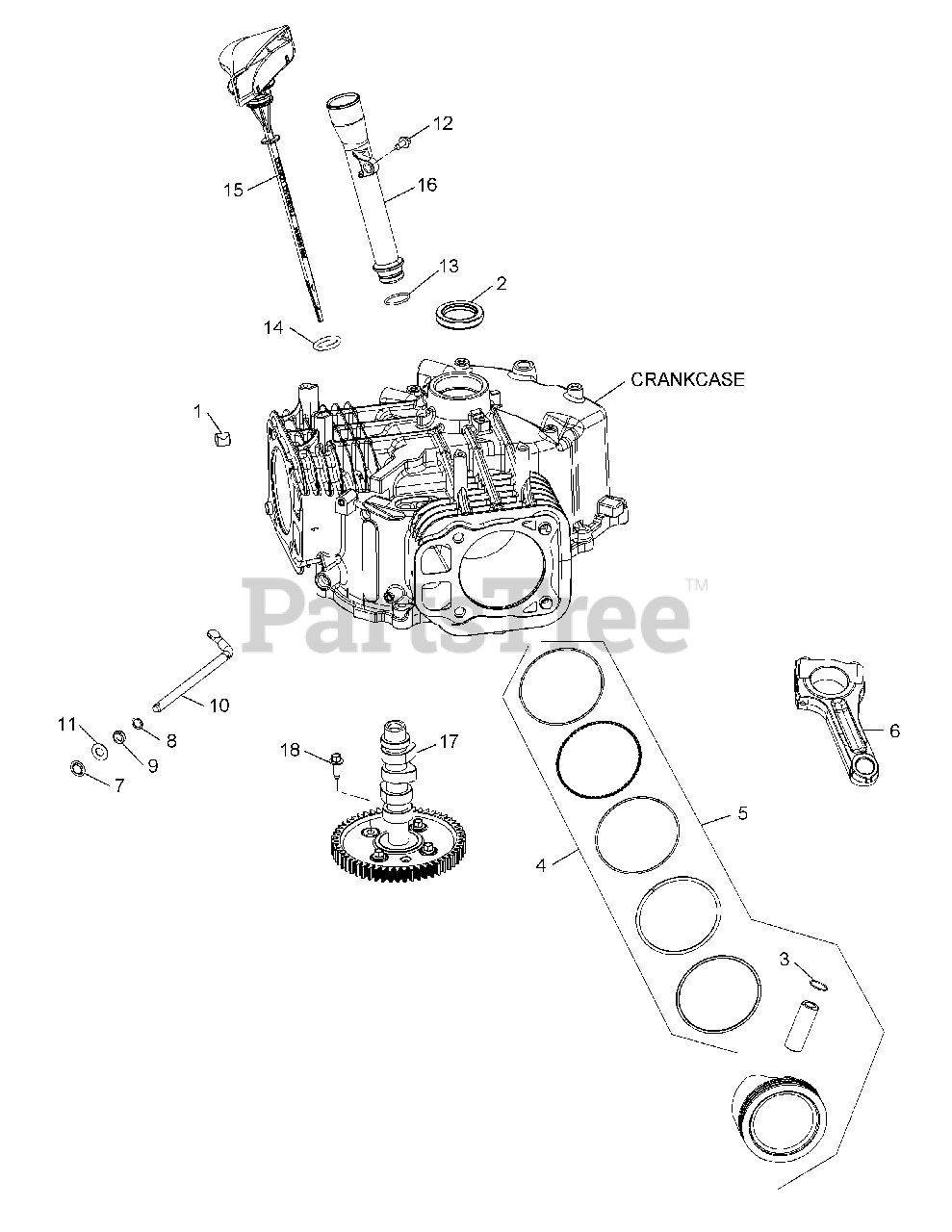

Kohler ZT730-3011 Crankcase Parts Diagram

  • Title

1

Cub Cadet KH-24-380-16-S

Locating Pin

$4.49

$

In Stock, Qty 5

0

2

Cub Cadet KH-24-032-19-S

Oil Seal

$9.49

$

In Stock, Qty 20+

0

3

Cub Cadet KH-24-018-01-S

Piston Pin Retainer

$3.49

$

In Stock, Qty 14

0

4

Cub Cadet KH-25-108-01-S

Piston Ring Set (STD)

$80.99

$

In Stock, only 2 left!

0

4

Cub Cadet KH-25-108-02-S

Piston Ring Set (.08)

$33.99

$

Usually ships in 2-5 days

0

4

Cub Cadet KH-25-108-03-S

Piston Ring Set (.25)

$33.99

$

Usually ships in 2-5 days

0

4

Cub Cadet KH-25-108-04-S

Piston Ring Set (.50)

$131.99

$

Usually ships in 2-5 days

0

5

Cub Cadet KH-25-874-14-S

Piston Kit w/ Ring (STD) (Inc. 9 & 10)

$221.99

$

In Stock, Qty 11

0

5

Cub Cadet KH-25-874-18-S

Piston Kit w/ Ring (.08)

$262.99

$

Usually ships in 2-5 days

0

5

Cub Cadet KH-25-874-19-S

Piston Kit w/ Ring (.25)

$321.99

$

Usually ships in 2-5 days

0

5

Cub Cadet KH-25-874-20-S

Piston Kit w/ Ring (.50)

$317.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-24-067-30-S

Connecting Rod Assembly (STD)
(Superseded to KH-25-067-04-S)

$75.99

$

In Stock, Qty 20+

0

6

Cub Cadet KH-24-067-31-S

Connecting Rod Assembly (.010") (25mm)

$

$

Not available

7

Cub Cadet KH-24-018-09-S

Ring Retainer

$2.49

$

In Stock, Qty 19

0

8

Cub Cadet KH-24-468-15-S

Flat Washer, 11/32"

$2.49

$

In Stock, only 2 left!

0

9

Cub Cadet KH-28-032-09-S

Governor Cross Shaft Seal

$4.49

$

In Stock, only 2 left!

0

10

Cub Cadet KH-24-144-38-S

Governor Cross Shaft
(Superseded to KH-24-144-39-S)

$52.99

$

Usually ships in 2-5 days

0

11

Cub Cadet KH-M-931010-S

Flat Washer, 9 mm

$2.49

$

In Stock, Qty 7

0

12

Cub Cadet KH-25-086-398-S

Thread Forming Screw

$4.49

$

In Stock, Qty 18

0

13

Cub Cadet KH-12-153-07

O-Ring
(Superseded to KH-12-153-07-S)

$2.99

$

Usually ships in 3-6 days

0

14

Cub Cadet KH-25-153-09-S

O-Ring

$4.99

$

In Stock, Qty 15

0

15

Cub Cadet KH-16-038-02-S

Dipstick Assembly
(Superseded to KH-32-038-14-S)

$9.49

$

In Stock, Qty 7

0

16

Cub Cadet KH-32-123-14-S

Oil Fill Assembly Tube

$6.99

$

In Stock, Qty 11

0

17

Cub Cadet KH-16-010-01-S

Camshaft Assembly
(Superseded to KH-32-010-07-S)

$83.99

$

In Stock, Qty 9

0

18

Cub Cadet KH-25-086-542-S

Hex Flange Screw

$

$

Not available
