Z-Force LZ60 (53ANDAGD050) - Cub Cadet 60" Z-Force Zero-Turn Mower (2014) Front Axle Parts Diagram

60" Z-Force Zero-Turn Mower

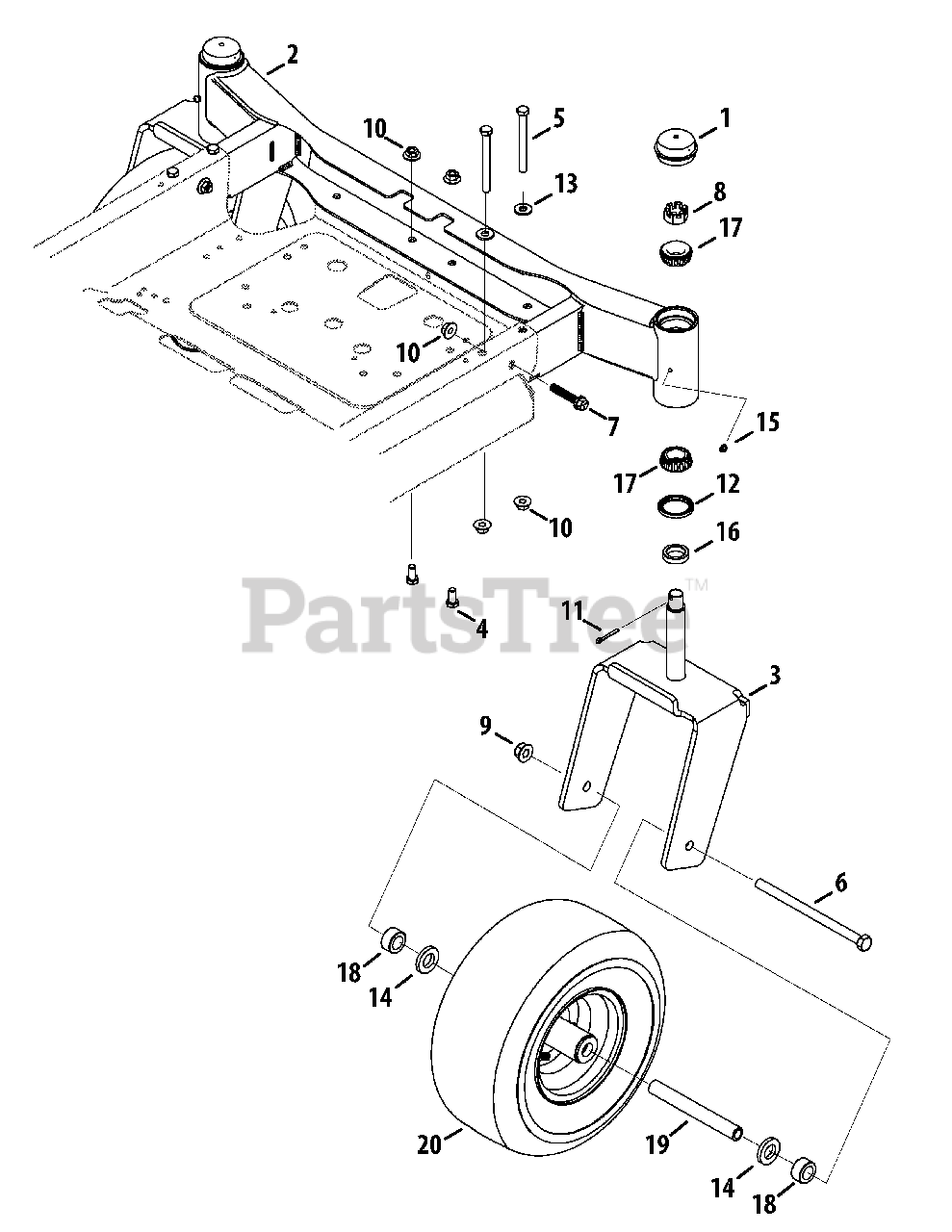

Front Axle Parts Diagram

  • Title

1

Cub Cadet 01006347

Cap
(Superseded to 703-10384)

$15.99

$

In Stock, Qty 15

0

2

Cub Cadet 603-05136-0637

Front Axle
(Superseded to 603-05278-0637)

$894.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 603-05148-0637

Caster Wheel Bracket
(Superseded to 603-05148A-0637)

$169.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0216

Hex Cap Screw, 3/8-16 x .75

$4.49

$

In Stock, Qty 17

0

5

Cub Cadet 710-04576

Hex Cap Screw, 3/8-16 x 3.75

$4.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-04999

Hex Cap Screw, 1/2-13 x 8.50

$16.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-06093

Hex Flange Screw, 3/8-16 x 2.00

$4.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 712-0359

Slotted Nut, 3/4-16

$11.99

$

In Stock, only 4 left!

0

9

Cub Cadet 712-04150

Flange Lock Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 712-04217

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 714-0162

Cotter Pin, 5.32 x 1.25

$4.99

$

In Stock, Qty 20+

0

12

Cub Cadet 721-04656

Seal, 35 x 47 x 5

$6.49

$

In Stock, Qty 8

0

13

Cub Cadet 736-0262

Flat Washer, .385 x .870 x .092

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 936-0445

Thrust Washer, .760 x 1.50 x .060
(Superseded to 736-0445)

$

$

Not available

15

Cub Cadet 937-3000

Grease Fitting, 3/16

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 750-06085

Seal, 1.378 x .984 x .329

$5.49

$

In Stock, Qty 8

0

17

Cub Cadet 741-05055

Bearing, 47mm x 25mm x 15mm

$19.99

$

In Stock, only 1 left!

0

18

Cub Cadet 748-04068

Spacer, .77 ID x 1.13 OD x .56

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 750-05351

Spacer, .51 ID x .75 OD x 7.10
(Superseded to 750-05351A)

$20.99

$

In Stock, only 2 left!

0

20

Cub Cadet 634-04750

Wheel Assembly, 13 x 6.5 x 6

$185.99

$

In Stock, only 1 left!

0
