Z-Force LZ60 (53ANDAGD050) - Cub Cadet 60" Z-Force Zero-Turn Mower (2014) Seat Assembly Parts Diagram

60" Z-Force Zero-Turn Mower

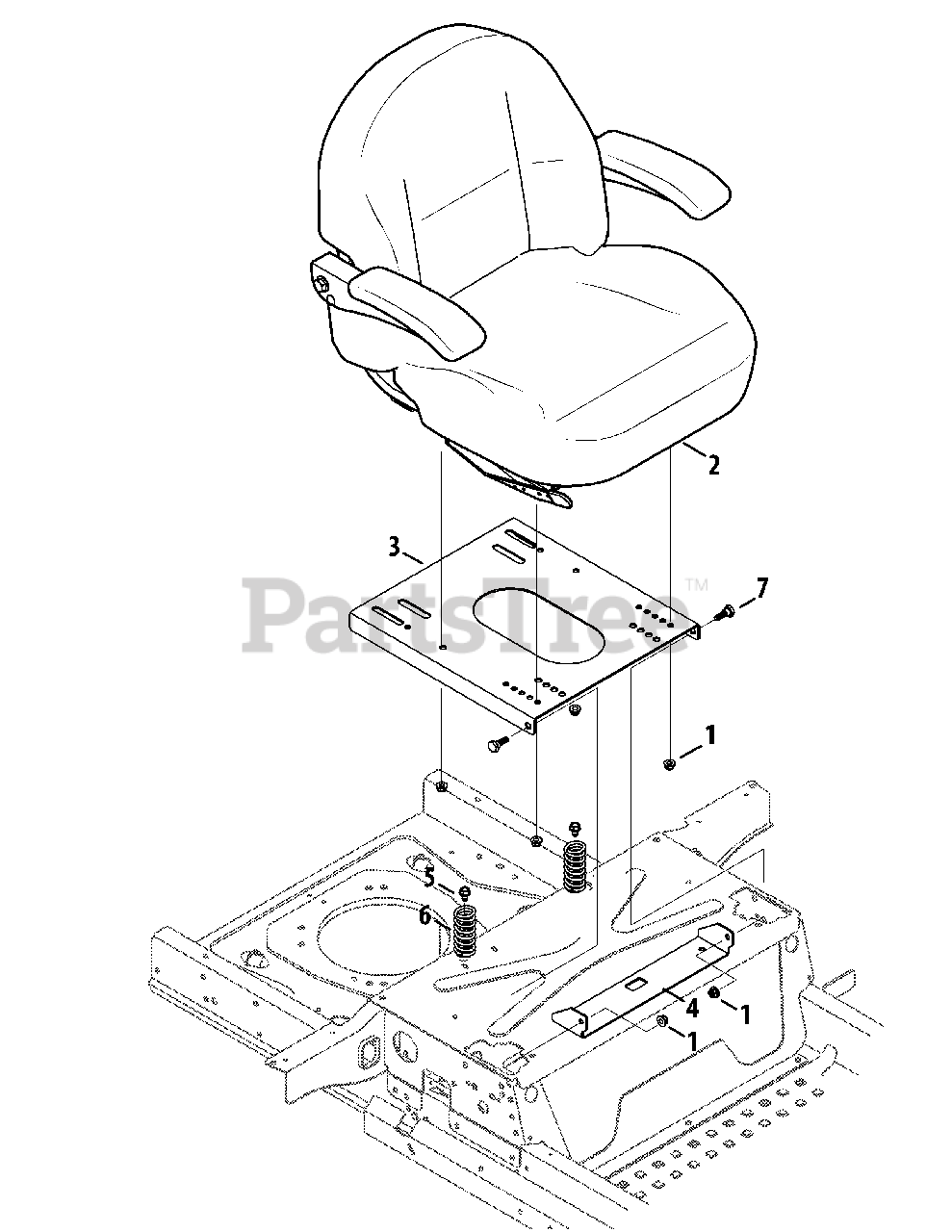

Seat Assembly Parts Diagram

  • Title

1

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 757-05005A

Seat

$944.99

$

Usually ships in 3-6 days

0

2

Cub Cadet SI-181773

Armrest Set

Note: (not shown)

$232.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-09603-0637

Seat Plate
(Superseded to 703-09603A-0637)

$89.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-09633-0637

Seat Bracket

$33.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-1260A

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 732-04035

Compression Spring, 1.28 x 3.125

$10.99

$

In Stock, Qty 12

0

7

Cub Cadet 938-0296

Shoulder Screw, 5/16-18 x .437 x .268
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0
