Z-Force S46 (17AF5BHH010) - Cub Cadet 46" Z-Force S Zero-Turn Mower (2011) Mower Deck 46-Inch Parts Diagram

46" Z-Force S Zero-Turn Mower

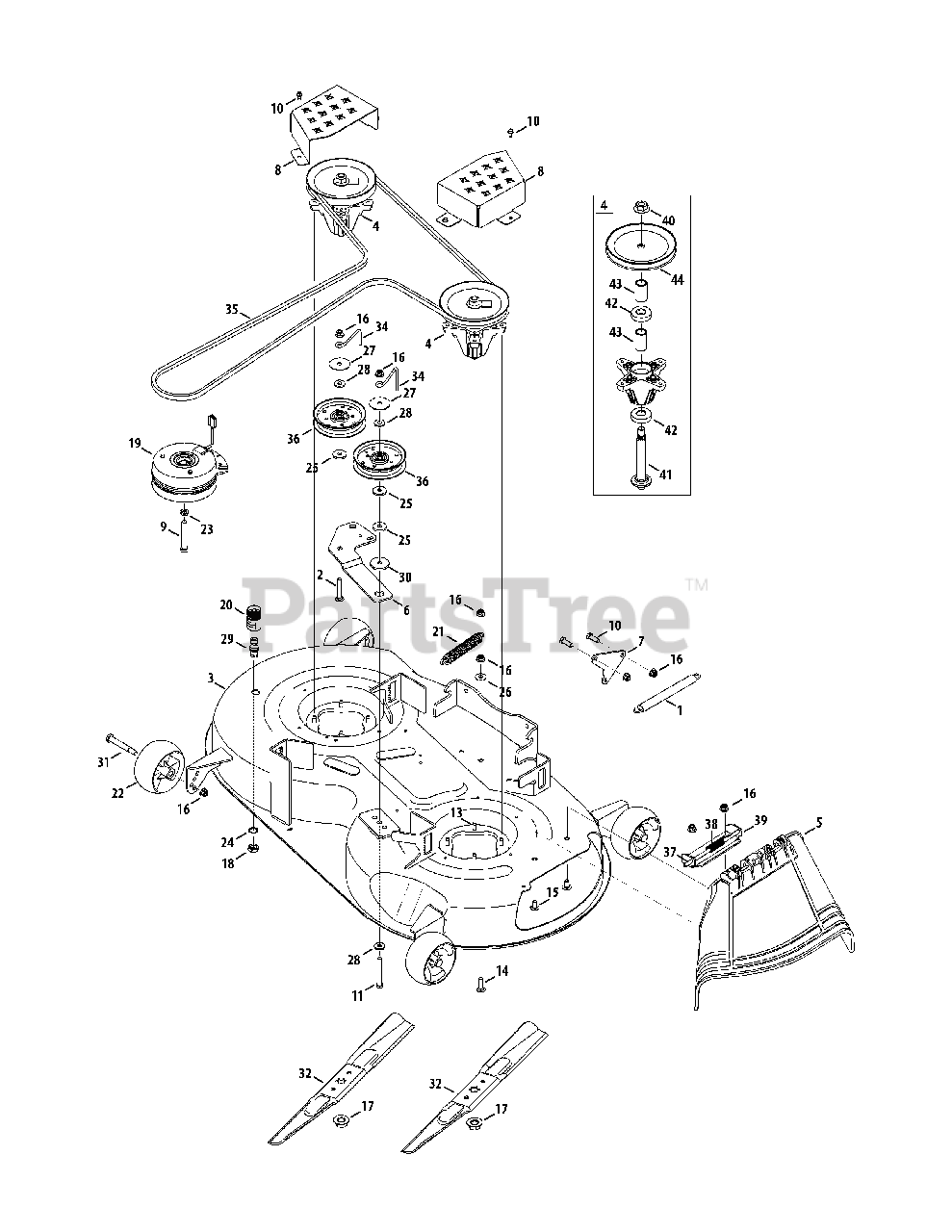

Mower Deck 46-Inch Parts Diagram

  • Title

1

Cub Cadet 02002629

Spring, Extn, Hook, .75x7.89x.14, Bz

$19.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 02005526

Carriage Bolt, 3/8-16
(Superseded to 710-06072)

$6.99

$

In Stock, only 1 left!

0

3

Cub Cadet 903-04873-4021

Deck Assembly, Sd, 46
(Superseded to 903-04873A-4021)

$945.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 918-04865A

Spindle Assembly, Pulley 6.93 Dia W/O Zerk

$156.99

$

In Stock, Qty 20+

0

5

Cub Cadet 631-04288

Chute Deflector Assembly
(Superseded to 631-05191A)

Note: (Incl Ref. 37, 38 & 39)

$60.99

$

In Stock, Qty 20+

0

6

Cub Cadet 703-07616-4021

Idler, Plate, 48
(Superseded to 703-07616A-4021)

$

$

Not available

7

Cub Cadet 703-07641-0637

Plate, Mount, Spring

$

$

Not available

8

Cub Cadet 703-08363-4021

Cover, Belt, Zforces, 46 Deck

$66.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-0510

Screw, 7/16-20, 3.00, Gr5, Std

$11.99

$

In Stock, only 2 left!

0

10

Cub Cadet 710-0514

Screw, 3/8-16, 1.00, Gr5, Std

$4.49

$

In Stock, Qty 18

0

11

Cub Cadet 710-0521

Screw, 3/8-16, 3.00, Gr8, Std

$5.49

$

In Stock, only 4 left!

0

13

Cub Cadet 710-0602

Screw, Tt, 5/16-18, 1.000, Hxindwsh

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 710-3034

Bolt, Crg, 3/8-16, 1.25, Gr1

$4.49

$

In Stock, only 3 left!

0

15

Cub Cadet 710-3178

Bolt, Crg, 3/8-16, 0.75, Gr1

$4.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 712-04065

Nut, Flglk, 3/8-16, Grf, Nylon

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 712-0417A

Nut, Flg, 5/8-18

$7.49

$

In Stock, Qty 20+

0

18

Cub Cadet 912-0641

Nut, Hex, M16-1.5 Din 936
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 6

0

19

Cub Cadet 917-04754

Clutch, Elec, Brake 125 Ft-Lbs
(Superseded to 917-04754A)

$618.99

$

In Stock, only 1 left!

0

20

Cub Cadet 921-04041

Adap, Water Nozzle

$24.99

$

In Stock, Qty 20+

0

21

Cub Cadet 932-0594A

Spring, Extn, .91 Dia X 7.33

$15.99

$

In Stock, Qty 10

0

22

Cub Cadet 734-04155

Wheel, Deck, 5.0 Dia Ball

$21.99

$

In Stock, Qty 20+

0

23

Cub Cadet 936-0171

Washer, Lock, 7/16, SPlate, Reg
(Superseded to 736-0171)

$4.99

$

In Stock, Qty 10

0

24

Cub Cadet 736-0225

Washer, Lock, 5/8, Int Tooth

$4.49

$

In Stock, only 2 left!

0

25

Cub Cadet 736-0235

Washer, Flat, .406x1.260x.170
(Superseded to 736-0247)

$10.99

$

In Stock, Qty 20+

0

26

Cub Cadet 736-0626

Washer, Flat, .58 X 1.125 X .08, Ht

$10.99

$

In Stock, only 2 left!

0

27

Cub Cadet 736-3040

Washer, Flat, .406x1.920x.060

$6.99

$

In Stock, Qty 14

0

28

Cub Cadet 736-3052

Washer, Flat, .406 X 1.00 X .105

$4.99

$

In Stock, Qty 17

0

29

Cub Cadet 737-04003D

Nozzle, Deck, Water

$24.99

$

In Stock, Qty 5

0

30

Cub Cadet 738-04392

Spacer, Shldr, .884 X .190

$14.99

$

In Stock, only 3 left!

0

31

Cub Cadet 938-3056

Bolt, Shldr, .496 X 2.50, 3/8-16

$9.99

$

In Stock, Qty 20+

0

32

Cub Cadet 942-04290

Blade, Cut, 23.25" 2-In-1
(Superseded to 942-04290A)

$36.99

$

In Stock, Qty 20+

0

34

Cub Cadet 747-04530

Rod, Keepr, Belt 42 Idler

$7.99

$

In Stock, Qty 6

0

34

Cub Cadet 747-05488

Rod, Keepr, Belt 46" Idler

$

$

Not available

35

Cub Cadet 954-04153A

Belt, V Typ, A Sec X 122.0

$89.99

$

In Stock, Qty 14

0

36

Cub Cadet 756-04129B

Pulley, Idler, 4.25"Dia
(Superseded to 753-08171)

$37.99

$

In Stock, Qty 20+

0

37

Cub Cadet 711-04847B

Hinge Pin

$9.49

$

In Stock, Qty 7

0

38

Cub Cadet 732-04372

Torsion Spring

$10.99

$

In Stock, only 1 left!

0

39

Cub Cadet 783-06074A

Chute Bracket

$34.99

$

In Stock, Qty 9

0

40

Cub Cadet 712-0417A

Flange Nut, 5/8-18

$7.49

$

In Stock, Qty 20+

0

41

Cub Cadet 738-1186A

Spindle Shaft, 6.11 Long

$52.99

$

In Stock, Qty 20+

0

42

Cub Cadet 941-0919A

Ball Bearing, .787 x 1.85 x .551
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

43

Cub Cadet 750-04936

Spacer, .792 x 1.060 x 1.860

$7.49

$

Usually ships in 3-6 days

0

44

Cub Cadet 756-04356

Deck Pulley, 6.93 dia.

$39.99

$

In Stock, Qty 10

0
