48" Z-Force S Zero-Turn Mower

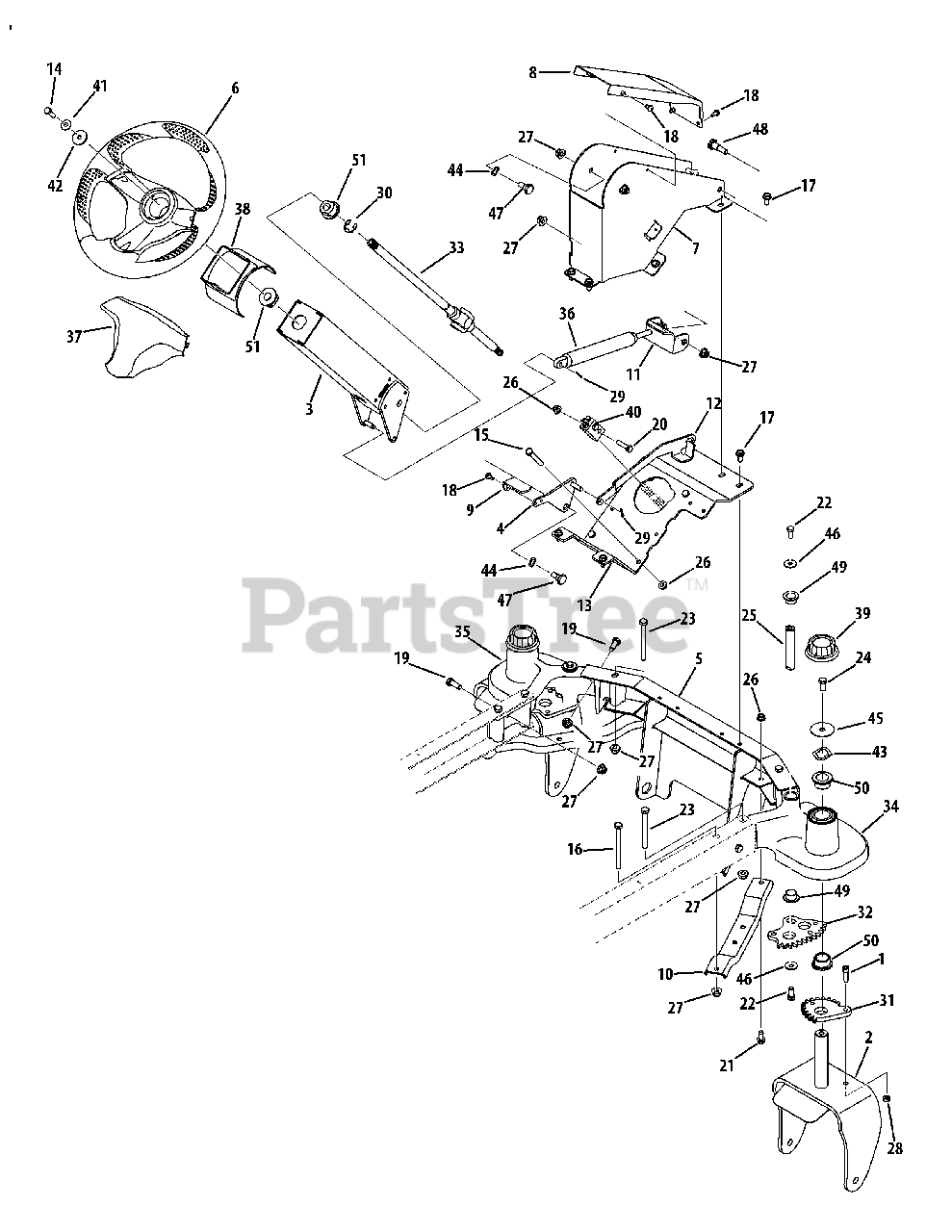

Steering Column & Axles Parts Diagram

  • Title

1

Cub Cadet 02004124

Socket Head Screw, 5/16-18 x 1.00
(Superseded to 710-05398)

$3.49

$

In Stock, only 2 left!

0

2

Cub Cadet 603-04924-0637

Caster Bracket Assembly
(Superseded to 603-04924A-0637)

$161.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 603-04949-0637

Upper Steering Column Assembly

$280.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 603-04767-0637

Tilt Release Pedal Assembly

$

$

Not available

5

Cub Cadet 603-04772-0637

Front Bumper Frame Assembly

$309.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 631-04008A

Steering Wheel Assembly
(Superseded to 631-04008B)

$100.99

$

In Stock, only 1 left!

0

7

Cub Cadet 703-07349-0637

Lower Steering Wheel Column

$

$

Not available

8

Cub Cadet 703-07352-0637

Lower Column Cover

$40.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-07424-0637

Tilt Steering Pedal

$

$

Not available

10

Cub Cadet 703-07486-0637

Front Frame Brace

$24.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 703-07611-0637

Damper Pivot Lower Bracket

$46.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 703-07613A-0637

Tilt Action Lever

$

$

Not available

13

Cub Cadet 703-07624A-0637

Steering Mount Box Plate

$

$

Not available

14

Cub Cadet 710-0376

Hex Screw, 5/16-18 x 1.00

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 710-0395

Hex Screw, 5/16-18 x 2.25

$4.99

$

In Stock, Qty 11

0

16

Cub Cadet 710-0411

Hex Screw, 3/8-16 x 4.00

$8.99

$

In Stock, Qty 20+

0

17

Cub Cadet 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 710-05070

Screw, 1/4-20 x .5
(Superseded to 710-05070A)

$7.49

$

In Stock, Qty 5

0

19

Cub Cadet 710-0514

Hex Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 710-0528

Hex Screw, 5/16-18 x 1.25

$4.99

$

In Stock, Qty 20+

0

21

Cub Cadet 710-1260A

Hex Washer Screw, 5/16-18 x 750

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 710-1880

Hex Screw, 5/16-18 x .75

$4.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 710-3085

Hex Screw, 3/8-16 x 3.50

$4.99

$

In Stock, Qty 20+

0

24

Cub Cadet 710-3119

Hex Screw, 3/8-16 x .750

$7.49

$

In Stock, Qty 20+

0

25

Cub Cadet 711-05281

Pivot Gear Steering Shaft

$

$

Not available

26

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 912-3009

Hex Lock Nut, 5/16-18
(Superseded to 712-3009)

$

$

Not available

29

Cub Cadet 914-0507

Cotter Pin, 3/32 x .750

$4.99

$

In Stock, Qty 11

0

30

Cub Cadet 916-0231

E-Ring, .750
(Superseded to 716-0231)

$

$

Not available

31

Cub Cadet 717-04692

13-Tooth Variable Spur Gear

$25.99

$

In Stock, Qty 6

0

32

Cub Cadet 717-04696

12-Tooth Variable Gear

$30.99

$

In Stock, only 2 left!

0

33

Cub Cadet 917-04998

Steering Shaft

$

$

Not available

34

Cub Cadet 719-04544

RH Flange Bearing Caster Pivot Axle

$186.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 719-04545

LH Flange Bearing Caster Pivot Axle

$208.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 927-04320

Locking Damper Cylinder, 80MM

$77.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 731-04532B

Steering Wheel Cover

$25.99

$

In Stock, Qty 9

0

38

Cub Cadet 731-07358B

Column Cover
(Superseded to 731-07358C)

$23.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 931-3020

Hubcap

$9.49

$

In Stock, Qty 20+

0

40

Cub Cadet 748-04139

Steering Shaft Block

$43.99

$

In Stock, Qty 8

0

41

Cub Cadet 736-0242

Bell Washer, .340 x .872 x .060

$4.99

$

In Stock, Qty 20+

0

42

Cub Cadet 736-0343

Flat Washer, .330 x 1.25 x .120

$4.99

$

In Stock, Qty 13

0

43

Cub Cadet 936-0447

Wave Washer, 1.5 x 1.0 x .029
(Superseded to 736-0447)

$4.49

$

In Stock, Qty 16

0

44

Cub Cadet 936-0504

Wave Washer, .510 x.750 x .017

$4.99

$

In Stock, only 2 left!

0

45

Cub Cadet 736-3040

Flat Washer, .406 x 1.92 x .060

$6.99

$

In Stock, Qty 16

0

46

Cub Cadet 736-3078

Flat Washer, .344 x 1.00 x .063

$4.99

$

In Stock, Qty 7

0

47

Cub Cadet 738-0143

Shoulder Bolt, 3/8-16 x .496 x .336

$4.49

$

In Stock, Qty 20+

0

48

Cub Cadet 938-0148

Shoulder Screw, 3/8-16 x .50 x .66

$17.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 741-0338

Flange Bearing, 3/4 x .52

$9.99

$

In Stock, Qty 20+

0

50

Cub Cadet 741-04488

Flange Bearing, 1.0001 x 1.25

$9.99

$

In Stock, Qty 20+

0

51

Cub Cadet 948-0209

Flange Bearing, .630 x 1.50

$23.99

$

Usually ships in 3-6 days
