Z-Force S48 (53BH5FJB050) - Cub Cadet 48" Z-Force S Zero-Turn Mower, Kohler (2012) Deck Lift Parts Diagram

48" Z-Force S Zero-Turn Mower, Kohler

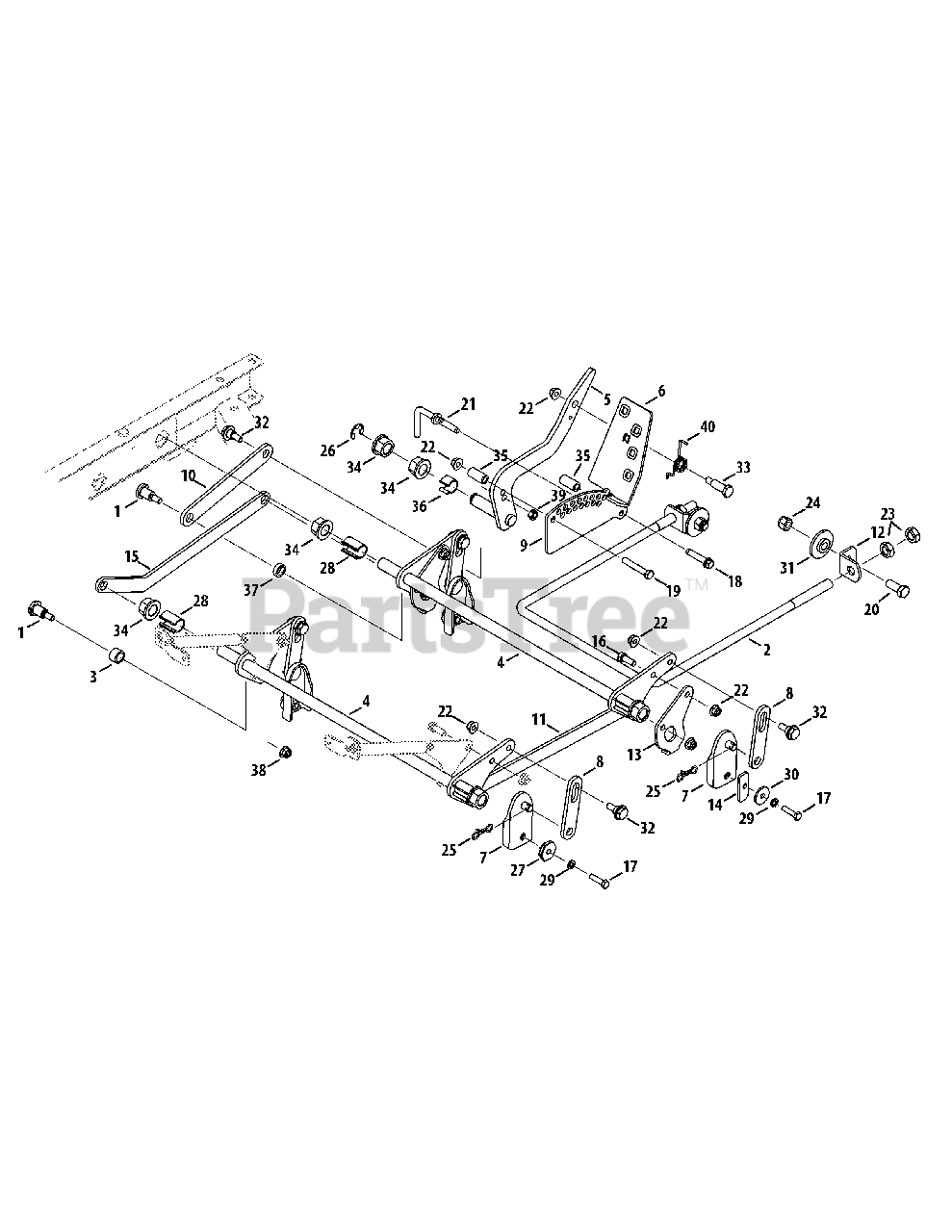

Deck Lift Parts Diagram

  • Title

1

Cub Cadet 738-04489

Shoulder Screw, .625 x .830

$

$

Not available

2

Cub Cadet 747-05353A

Lift Rod

$81.99

$

In Stock, only 1 left!

0

3

Cub Cadet 02005535

Spacer, .632 x .877 x .548

$

$

Not available

4

Cub Cadet 603-04867

Rock Shaft Assembly

$

$

Not available

5

Cub Cadet 603-04881

Foot Pivot Assembly

$80.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 603-04880-0637

Lift Pedal Assembly

$56.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 603-04771-4021

Deck Lift Adjustment Bracket
(Superseded to 603-04771)

$

$

Not available

8

Cub Cadet 703-07489A

Lift Link Bracket

$12.99

$

In Stock, only 3 left!

0

9

Cub Cadet 703-07540A-0637

Index Plate

$26.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-07552A

Pedal Link Plate

$8.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 703-07554-0637

Mid Link Plate

$

$

Not available

12

Cub Cadet 703-08215-0637

Front Hanger Rod Bracket Mount

$28.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 703-07663A-0637

Deck Up Stop Bracket

$

$

Not available

14

Cub Cadet 703-07672-4021

Deck Lift Square Spacer
(Superseded to 703-07672-0637)

$10.99

$

In Stock, Qty 9

0

15

Cub Cadet 703-07770-0637

Mid-Angled Link Plate

$36.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 710-0514

Hex Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 710-0528

Hex Screw, 5/16-18 x 1.25

$4.99

$

In Stock, Qty 20+

0

18

Cub Cadet 710-1008

Hex Washer Screw, 3/8-16 x 1.875

$5.99

$

In Stock, Qty 13

0

19

Cub Cadet 710-3011

Hex Screw, 3/8-16 x 2.25

$7.49

$

In Stock, Qty 20+

0

20

Cub Cadet 710-3032

Hex Screw, 1/2-13 x 1.25

$6.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 711-05500A

Lock Rod

$18.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 912-3048

Jam Nut, 1/2-13
(Superseded to 712-3048)

$4.99

$

In Stock, Qty 20+

0

24

Cub Cadet 712-3083

Hex Lock Nut, 1/2-13

$4.99

$

In Stock, Qty 20+

0

25

Cub Cadet 714-04043

Cotter Pin

$5.49

$

In Stock, Qty 20+

0

26

Cub Cadet 916-0231

E-Type Ring, .750
(Superseded to 716-0231)

$

$

Not available

27

Cub Cadet 917-04074

Adjustable Deck Gear

$13.99

$

In Stock, Qty 20+

0

28

Cub Cadet 731-06848

Spacer, .791 x .950 x 1.35

$8.49

$

In Stock, only 2 left!

0

29

Cub Cadet 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

30

Cub Cadet 736-0343

Flat Washer, .330 x 1.25 x .120

$4.99

$

In Stock, Qty 13

0

31

Cub Cadet 738-04337A

Shoulder Spacer, .9790 x .2025

$6.49

$

In Stock, Qty 6

0

32

Cub Cadet 738-04428

Shoulder Spacer, 3/8-16 x .562 x .360

$14.99

$

In Stock, only 2 left!

0

33

Cub Cadet 738-1014

Shoulder Screw, .500 x 1.25

$4.49

$

In Stock, only 1 left!

0

34

Cub Cadet 741-04499

Hex Flange Bearing, .752

$13.99

$

In Stock, only 2 left!

0

35

Cub Cadet 750-04584

Spacer, .375 x .625 x 1.34

$

$

Not available

36

Cub Cadet 731-08265

Spacer, .79 x .95 x .73

$3.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 750-05362

Spacer, .632 x .877 x .281

$3.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 712-0459

Flange Lock Nut, 7/16-20

$5.49

$

In Stock, Qty 20+

0

39

Cub Cadet 912-3000

Hex Lock Nut, 3/8-16
(Superseded to 712-3000)

$4.49

$

In Stock, Qty 7

0

40

Cub Cadet 732-04829

Torsion Spring

$

$

Not available
