Z-Force S48 (53BH5FJB050) - Cub Cadet 48" Z-Force S Zero-Turn Mower, Kohler (2012) Electrical Parts Diagram

48" Z-Force S Zero-Turn Mower, Kohler

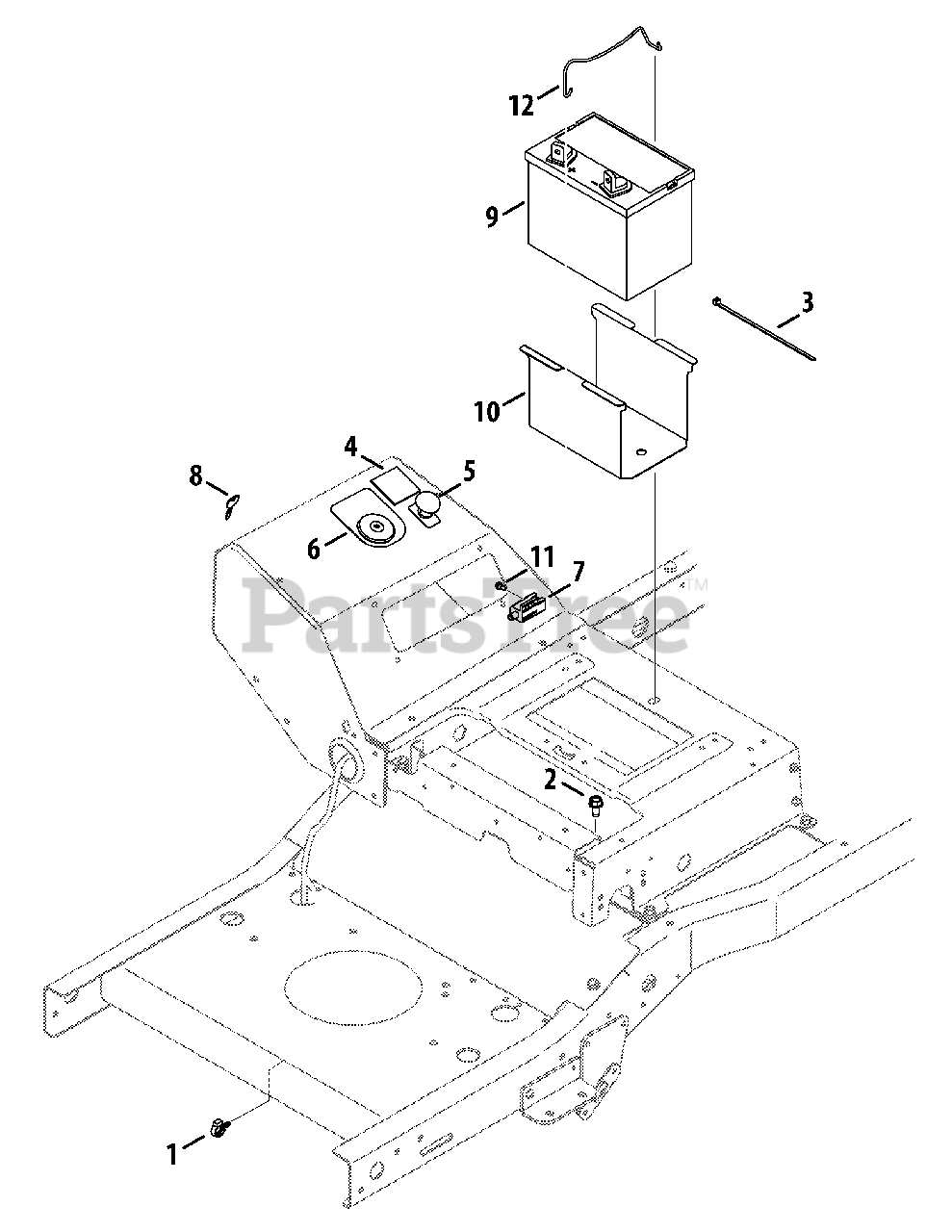

Electrical Parts Diagram

  • Title

1

Cub Cadet 02003037

Electrical Conduit Clip, 1/2

$3.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-0623

Screw, 3/8-16 x .75

$4.49

$

In Stock, only 2 left!

0

3

Cub Cadet 725-0157

Cable Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, only 2 left!

0

4

Cub Cadet 925-04022B

Hour Meter/Service Minder

$146.99

$

In Stock, only 1 left!

0

5

Cub Cadet 925-04175

Electric PTO Switch
(Superseded to 925-04175A)

$46.99

$

In Stock, only 4 left!

0

6

Cub Cadet 925-04228

Key Switch

$39.99

$

In Stock, Qty 20+

0

7

Cub Cadet 725-04363

Interlock Switch

$15.99

$

In Stock, Qty 20+

0

8

Cub Cadet 925-2054A

Universal Key
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

9

Cub Cadet 925-1707D

Battery

$

$

Not available

10

Cub Cadet 783-0349

Battery Tray

Variations

Cub Cadet 783-0349-4008

TRAY-BATTERY 400 - WINE RED (4008)

$

$

Not available

Cub Cadet 783-0349-0606

TRAY-BATTERY 400 S - MAJESTIC ORANGE (0606)

$

$

Not available

Cub Cadet 783-0349-0637

Battery Tray, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

11

Cub Cadet 738-04237A

Shoulder Screw, #10-32 x .500

$6.49

$

In Stock, Qty 7

0

12

Cub Cadet 747-05505

Battery Rod

$5.99

$

Usually ships in 3-6 days

0

Cub Cadet 725-05021

Harness Assembly

Note: Not shown

$

$

Not available
