Z-Force S48 (53BH5FJB050) - Cub Cadet 48" Z-Force S Zero-Turn Mower, Kohler (2012) Steering Assembly Parts Diagram

48" Z-Force S Zero-Turn Mower, Kohler

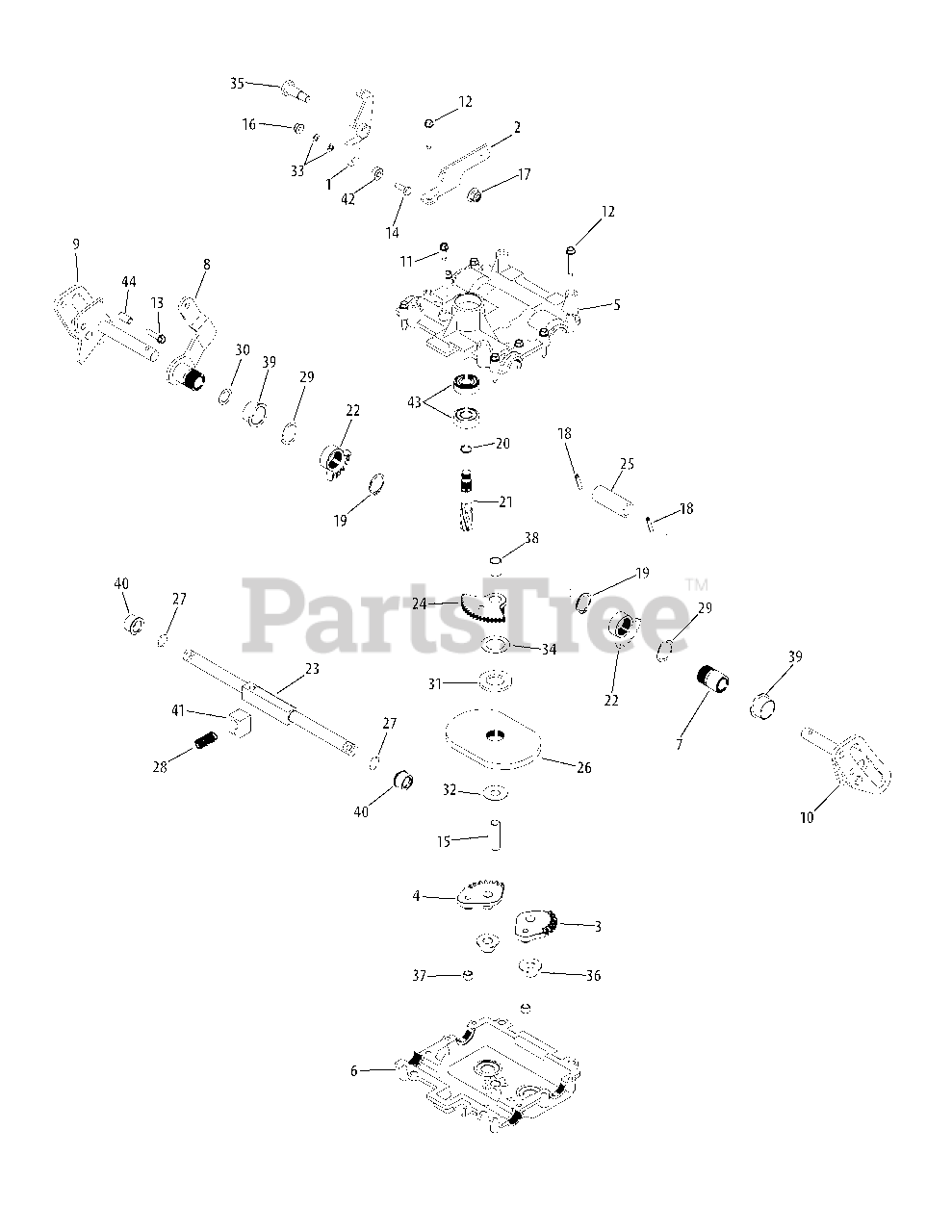

Steering Assembly Parts Diagram

  • Title

1

Cub Cadet 603-04776

Cam Plate Assembly

$17.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-04777

Neutral Bracket

$10.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 617-04047

LH Steering Gear Assembly

$

$

Not available

4

Cub Cadet 617-04048

RH Steering Gear Assembly

$

$

Not available

5

Cub Cadet 919-04261B

Upper Steering Housing

$

$

Not available

6

Cub Cadet 919-04262B

Lower Steering Housing

$285.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 647-04191

Vertical Hydro LH Arm Assembly

$

$

Not available

8

Cub Cadet 647-04192

Vertical Hydro RH Arm Assembly

$42.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 647-04224

RH Cam Assembly

$42.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 647-04222

LH Cam Assembly

$41.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-0642

Hex Washer Screw, 1/4-20 x 0.750

$4.49

$

In Stock, Qty 10

0

12

Cub Cadet 710-0778

Hex Washer Screw, 1/4-20 x 1.500

$4.49

$

In Stock, only 3 left!

0

13

Cub Cadet 710-0788

Hex Washer Screw. 1/4-20 x 1.000

$7.49

$

In Stock, only 4 left!

0

14

Cub Cadet 710-3015

Hex Screw, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 911-04587A

Steering Shaft

$8.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 912-0291

Hex Lock Nut, 1/4-20
(Superseded to 712-0291)

$

$

Not available

17

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 715-0120

Spirol Pin, 3/16 x 1.00

$10.99

$

In Stock, only 1 left!

0

19

Cub Cadet 916-0102

Snap Ring, 1.0
(Superseded to 716-0102)

$5.49

$

In Stock, Qty 20+

0

20

Cub Cadet 916-0114

Retaining Ring, .56

$6.99

$

In Stock, only 3 left!

0

21

Cub Cadet 717-04318

Pinion Gear, 7-Tooth

$80.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 917-04330

Steering Gear, 26-Tooth

$20.99

$

In Stock, only 2 left!

0

23

Cub Cadet 717-04730

Synchro Rack Gear

$213.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 917-04732A

Steering Gear, 53-Tooth

$

$

Not available

25

Cub Cadet 718-04757

Speed Cam Tube

$

$

Not available

26

Cub Cadet 718-04644

Hydro Steering Cam

$35.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 721-04186

O-Ring, .625 x .07

$7.99

$

In Stock, only 2 left!

0

28

Cub Cadet 732-04523

Compression Spring, .531 x 1.25

$

$

Not available

29

Cub Cadet 732-04711

Wave Spring, 24.22 x 32 x 1.98

$3.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 936-0256

Flat Washer, .635 x .930 x .033

$7.49

$

Usually ships in 3-6 days

0

31

Cub Cadet 936-0274

Flat Washer, 1.01 x 1.75 x .172
(Superseded to 736-0274)

$8.99

$

In Stock, Qty 14

0

32

Cub Cadet 736-04237

Flat Washer, .508 x 1.325 x .040

$3.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 736-04498

Flat Washer, .260 x .455 x .048

$

$

Not available

34

Cub Cadet 736-0615

Thrust Washer, 1.007 x 1.542 x .03

$8.99

$

In Stock, only 2 left!

0

35

Cub Cadet 938-0145

Shoulder Screw, 3/8-16 x .500 x .835

$6.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 741-04203

Flange Bearing, .5 x .700

$6.99

$

In Stock, only 3 left!

0

37

Cub Cadet 741-04204

Sleeve Bearing, .437 x .3425

$19.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 741-04206A

Sleeve Bearing, .623 x .5025 x .800

$3.99

$

In Stock, only 1 left!

0

39

Cub Cadet 741-04231

Sleeve Bearing, 1.2 x 1.00

$11.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 741-04235

Flange Bearing, .625 x .875

$20.99

$

In Stock, only 2 left!

0

41

Cub Cadet 741-04257

Rack Caster Bearing

$5.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 741-04280

Ball Bearing, .25 x .6875 x .25

$15.99

$

In Stock, only 1 left!

0

43

Cub Cadet 741-0747

Ball Bearing, .5625 x 1.375 x .4375

$18.99

$

In Stock, only 2 left!

0

44

Cub Cadet 750-05369

Spacer, .260 x .375 x .75

$5.49

$

Usually ships in 3-6 days

0
