Z-Force S48 (53BH5FJB050) - Cub Cadet 48" Z-Force S Zero-Turn Mower, Kohler (2013) Kohler CV680-3044 Starting System Parts Diagram

48" Z-Force S Zero-Turn Mower, Kohler

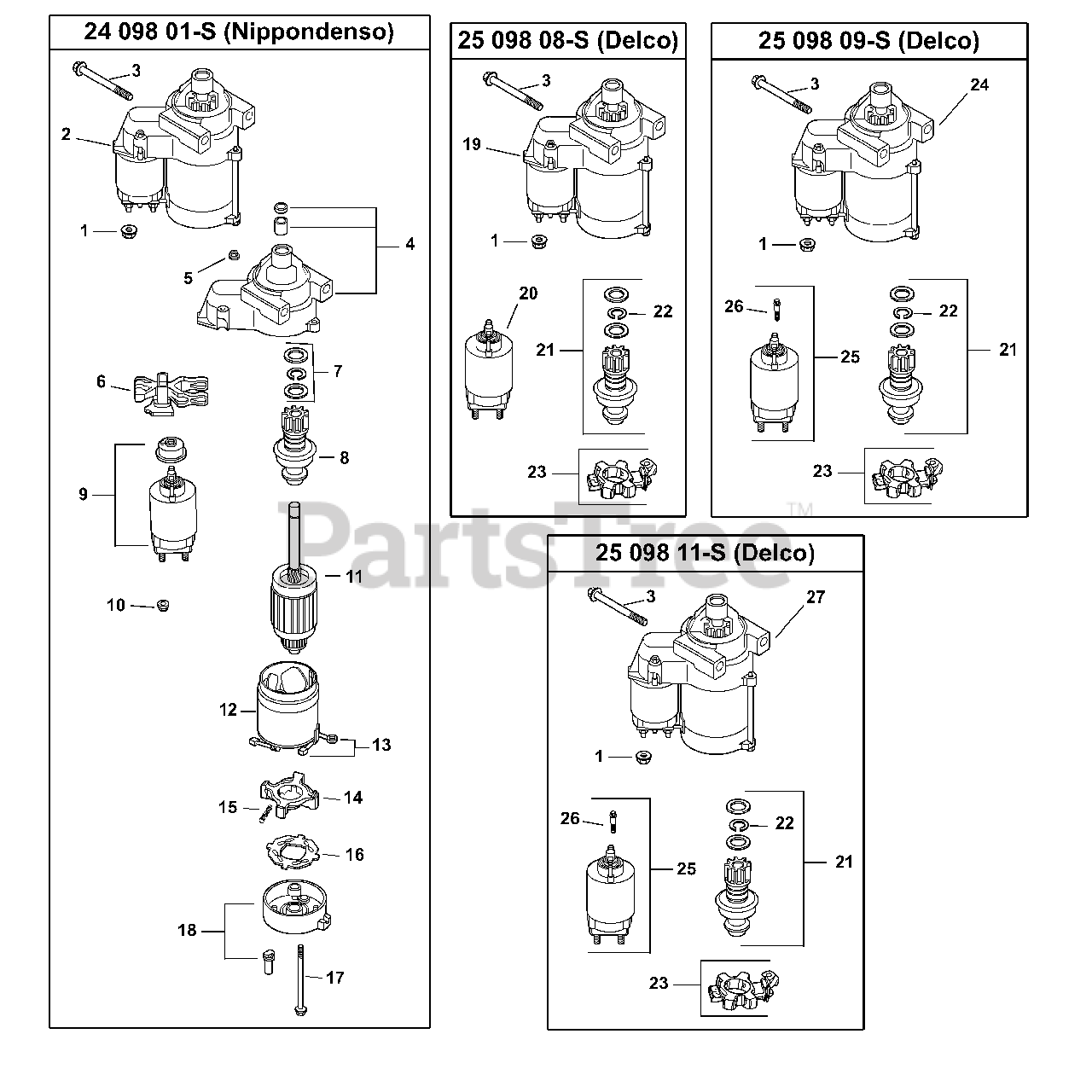

Kohler CV680-3044 Starting System Parts Diagram

  • Title

1

Cub Cadet 712-3086

Nut, Flg M8X1.25

$4.99

$

In Stock, Qty 20+

0

2

Cub Cadet KH-25-098-11-S

Starter Assy, Solenoid Shift
(Superseded to KH-25-098-24-S)

$316.99

$

In Stock, Qty 20+

0

3

Cub Cadet KH-M-851080-S

Screw, Flg M8x1.25x80

$4.49

$

In Stock, only 2 left!

0

4

Cub Cadet KH-24-081-04

Drive, End Cap

$

$

Not available

5

Cub Cadet KH-52-100-09

Nut

$

$

Not available

6

Cub Cadet KH-12-090-10

Lever, Drive

$

$

Not available

7

Cub Cadet KH-24-755-84

Kit, Starter Repair

$

$

Not available

8

Cub Cadet KH-12-239-01

Drive Pinion

$

$

Not available

9

Cub Cadet KH-52-435-02

Solenoid

$566.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-52-100-10

Nut

$

$

Not available

11

Cub Cadet KH-12-170-04

Armature

$

$

Not available

12

Cub Cadet KH-12-471-01

Frame w/ Brushes

$

$

Not available

13

Cub Cadet KH-52-323-03

Brush Holder

$

$

Not available

14

Cub Cadet KH-52-221-01

Brush & Spring Kit

$

$

Not available

15

Cub Cadet KH-52-089-09

Spring, Brush

$

$

Not available

16

Cub Cadet KH-52-168-01

Insulator

$

$

Not available

17

Cub Cadet KH-52-211-05

Thru Bolt

$

$

Not available

18

Cub Cadet KH-24-301-01

Commutator, End Cap

$

$

Not available

19

Cub Cadet KH-25-098-11-S

Starter Assy, Solenoid Shift
(Superseded to KH-25-098-24-S)

$316.99

$

In Stock, Qty 20+

0

20

Cub Cadet KH-25-435-04-S

Solenoid

$

$

Not available

21

Cub Cadet KH-25-755-33-S

Kit, Starter Pinion (Includes 22)

$

$

Not available

22

Cub Cadet KH-25-141-05-S

Ring, Retaining

$

$

Not available

23

Cub Cadet KH-25-221-01-S

Kit, Brush Holder

$89.99

$

Usually ships in 2-5 days

0

24

Cub Cadet KH-25-098-11-S

Starter Assy, Solenoid Shift
(Superseded to KH-25-098-24-S)

$316.99

$

In Stock, Qty 20+

0

25

Cub Cadet KH-25-435-06-S

Kit, Solenoid (Includes 26)

$259.99

$

In Stock, only 1 left!

0

26

Cub Cadet KH-25-086-113-S

Screw, External Torx Head

$19.99

$

Usually ships in 2-5 days

0

27

Cub Cadet KH-25-098-11-S

Starter Assy, Solenoid Shift
(Superseded to KH-25-098-24-S)

$316.99

$

In Stock, Qty 20+

0
