Z-Force S48 KH (53AH5FJB050) - Cub Cadet 48" Z-Force S Zero-Turn Mower, Kohler Kohler CV670-3015 Ignition & Electrical Parts Diagram

48" Z-Force S Zero-Turn Mower, Kohler

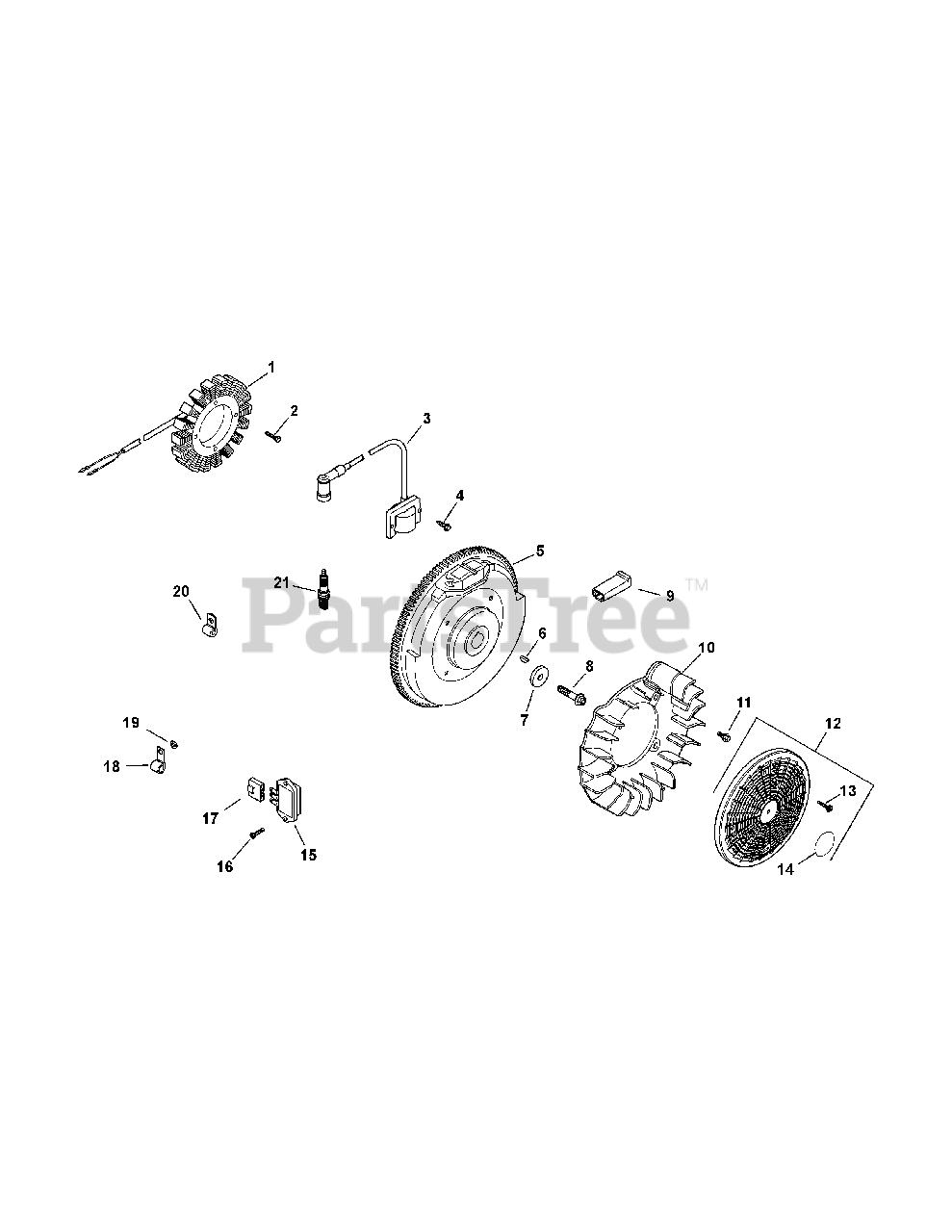

Kohler CV670-3015 Ignition & Electrical Parts Diagram

  • Title

1

Cub Cadet KH-237878

KIT, 15 / 20 AMP STATOR

Note: (includes KH-25-452-01-S)

$149.99

$

In Stock, Qty 10

0

2

Cub Cadet KH-M-548025-S

SCREW, THD FRM M5X0.8X25
(Superseded to KH-25-086-402-S)

$2.99

$

In Stock, only 1 left!

0

3

Cub Cadet KH-24-584-45-S

KIT, MODULE IGNTN (CDI FIXED)
(Superseded to KH-24-584-201-S)

$116.99

$

Usually ships in 3-6 days

0

4

Cub Cadet KH-M-545020-S

SCREW, FLG THD FRM M5X.8X20
(Superseded to KH-25-086-473-S)

$2.99

$

In Stock, Qty 20+

0

5

Cub Cadet KH-24-025-59-S

FLYWHEEL ASSEMBLY

$372.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-X-42-15

KEY, 3/16'' X 5/8''4

$

$

Not available

7

Cub Cadet KH-12-468-03

WASHER, FLAT 13/32''

$

$

Not available

8

Cub Cadet KH-12-086-14

SCREW, FLG M10X1.5X45
(Superseded to KH-25-086-361-S)

$4.49

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-277563

CONNECTOR (1 CONTACT)

$

$

Not available

10

Cub Cadet KH-24-157-12-S

FAN

$22.99

$

In Stock, only 2 left!

0

11

Cub Cadet KH-25-086-47

BOLT, SHOULDER

$

$

Not available

12

Cub Cadet KH-54-755-15

KIT, GRASS SCREEN

Note: (includes 13, 14)

$

$

Not available

13

Cub Cadet KH-25-086-117-S

SCREW, FLG SEMS M4X.7X25

$3.49

$

In Stock, only 4 left!

0

14

Cub Cadet KH-24-113-18-S

DECAL, GRASS SCREEN

$

$

Not available

15

Cub Cadet KH-41-403-10-S

REGULATOR/RECTIFIER
(Superseded to KH-25-403-37-S)

$126.99

$

Usually ships in 2-5 days

0

16

Cub Cadet KH-25-086-157-S

SCREW, HEX FLANGE HI-LO

$2.99

$

In Stock, only 2 left!

0

17

Cub Cadet KH-25-155-41-S

CONNECTOR USE 25 155 41-S

$29.99

$

In Stock, only 2 left!

0

18

Cub Cadet KH-235173

CLIP, CABLE

$

$

Not available

19

Cub Cadet KH-X-25-63

WASHER, FLAT 1/4'' (O.D. 1/2'')

$

$

Not available

20

Cub Cadet KH-210281-S

CLIP

$7.49

$

Usually ships in 2-5 days

0

21

Cub Cadet 759-3336

PLUG, SPARK (STD)
(Superseded to RC12YC)

$7.49

$

Usually ships in 3-6 days

0

Cub Cadet KH-24-126-137-S

BRACKET, GROUND STRAP
(Superseded to KH-24-518-12-S)

Note: NOT ILLUSTRATED

$5.99

$

In Stock, only 2 left!

0

Cub Cadet KH-24-176-150-S

HARNESS, WIRING ASSEMBLY

Note: NOT ILLUSTRATED

$55.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-176-41

LEAD, DUPLEX

Note: NOT ILLUSTRATED

$

$

Not available

Cub Cadet KH-25-454-07-S

TIE

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-518-34-S

LEAD, 20/25 AMP B+

Note: NOT ILLUSTRATED

$8.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-452-01-S

TERMINAL

Note: NOT ILLUSTRATED

$5.49

$

In Stock, only 1 left!

0
