Z-Force S48 KH (53AH5FJB050) - Cub Cadet 48" Z-Force S Zero-Turn Mower, Kohler Kohler CV670-3015 Oil Pan & Lubrication Parts Diagram

48" Z-Force S Zero-Turn Mower, Kohler

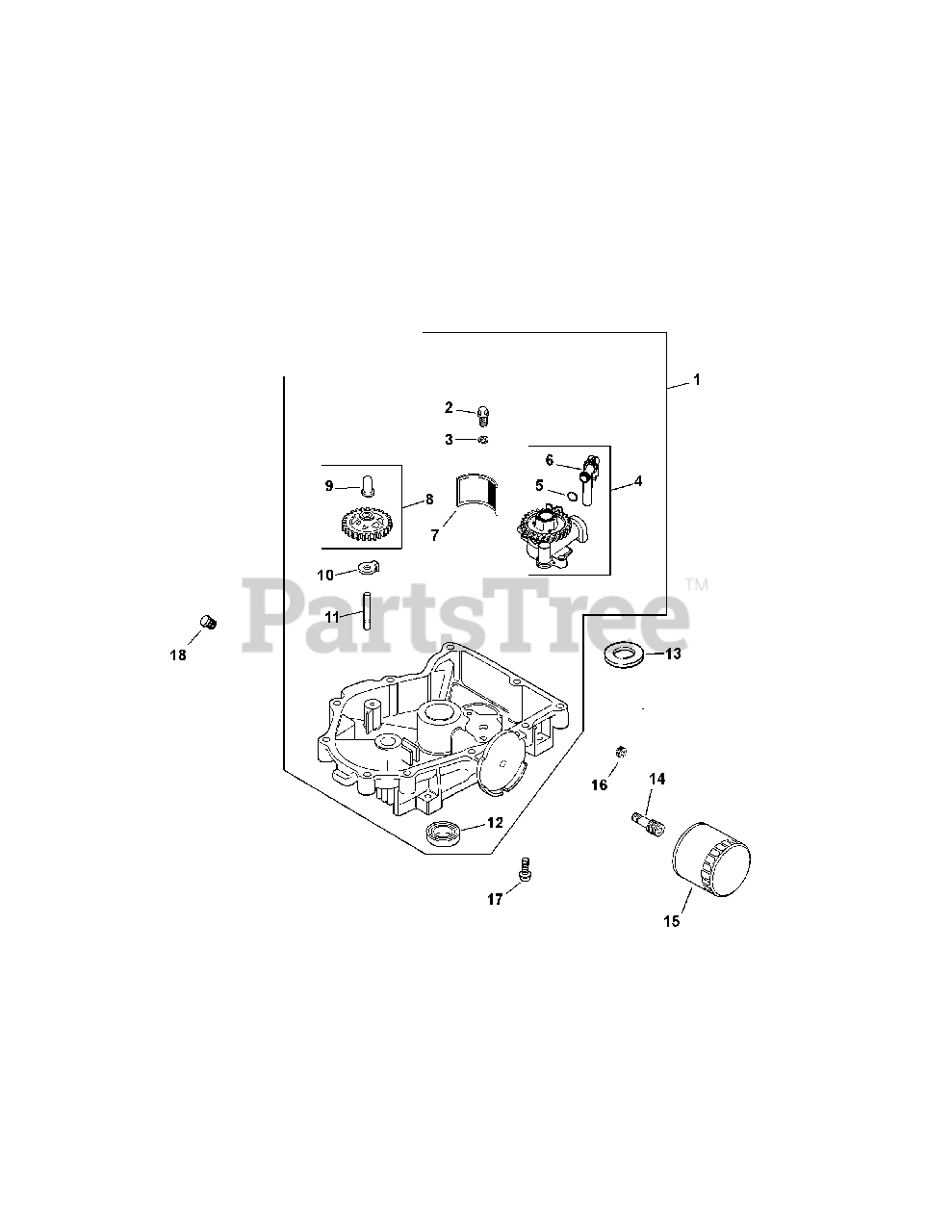

Kohler CV670-3015 Oil Pan & Lubrication Parts Diagram

  • Title

1

Cub Cadet KH-24-199-24-S

OIL PAN ASSEMBLY (includes 2-12)
(Superseded to KH-24-199-35-S)

$337.99

$

In Stock, only 3 left!

0

2

Cub Cadet KH-M-645025-S

SCREW, FLG THD FRM M6X1.0X25
(Superseded to KH-25-086-395-S)

$3.49

$

In Stock, Qty 17

0

3

Cub Cadet KH-M-631005

WASHER, FLAT 6 MM

$

$

Not available

4

Cub Cadet KH-24-393-51-S

KIT, OIL PUMP ASSEMBLY (includes 5, 6)
(Superseded to KH-24-393-53-S)

$

$

Not available

5

Cub Cadet KH-24-153-01

O-RING, OIL PICK-UP

$

$

Not available

6

Cub Cadet KH-24-381-11-S

KIT, OIL PICK-UP TUBE

$

$

Not available

7

Cub Cadet KH-24-162-26-S

SCREEN, OIL

$18.99

$

In Stock, only 1 left!

0

8

Cub Cadet KH-24-043-12

KIT, GOVERNOR GEAR W/PIN (includes 9)

$

$

Not available

9

Cub Cadet KH-12-380-01

PIN, GOVERNOR REGULATING

$

$

Not available

10

Cub Cadet KH-24-448-02-S

TAB, LOCKING

$2.49

$

In Stock, Qty 20+

0

11

Cub Cadet KH-12-144-02

SHAFT, GOVERNOR GEAR

$

$

Not available

12

Cub Cadet KH-25-032-06-S

OIL SEAL USE 25 032 06-S

$13.99

$

In Stock, Qty 20+

0

13

Cub Cadet KH-24-153-08

O-RING

$

$

Not available

14

Cub Cadet KH-24-136-01

NIPPLE, OIL FILTER
(Superseded to KH-24-136-09-S)

$6.99

$

Usually ships in 3-6 days

0

15

Cub Cadet KH-12-050-01-S

FILTER, OIL

$13.99

$

In Stock, Qty 20+

0

16

Cub Cadet KH-25-139-62-S

PLUG, PIPE CTSK 3/8''

$3.49

$

In Stock, only 2 left!

0

17

Cub Cadet KH-24-086-17-S

SCREW, FLG M8X1.25X45

$3.49

$

In Stock, Qty 20+

0

18

Cub Cadet KH-52-139-02

PLUG, HD PIPE 3/8''

$

$

Not available
