Z-Force S48 LP (17AP5BHB710) - Cub Cadet 48" Z-Force S Zero-Turn Mower, Kawasaki Propane Deck Lift Parts Diagram

48" Z-Force S Zero-Turn Mower, Kawasaki Propane

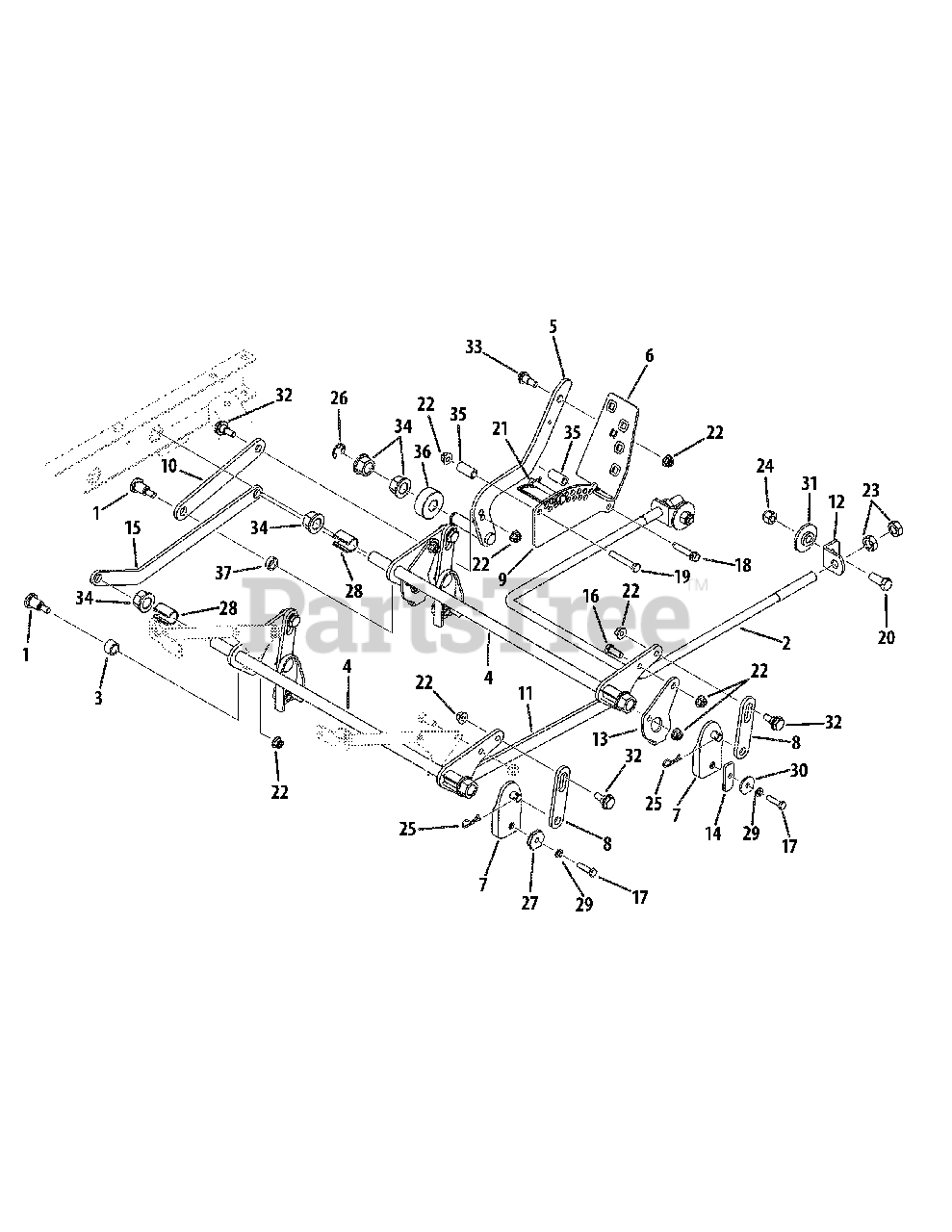

Deck Lift Parts Diagram

  • Title

1

Cub Cadet 01003536

Shoulder Screw, .625 x .830
(Superseded to 738-05007)

$8.49

$

In Stock, Qty 6

0

2

Cub Cadet 02002879

Lift Rod

$35.99

$

In Stock, only 4 left!

0

3

Cub Cadet 02005535

Spacer, .632 x .877 x .548

$5.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 603-04741

Rock Shaft Assembly

Variations

Cub Cadet 603-04741-0637

USE 603-04741 SHAFT ASM-ROCK - POWDER BLACK (0637)

$

$

Not available

$

$

5

Cub Cadet 603-04747-0637

Foot Lift Pivot Assembly

Note: For models built 6.6.2010 & Before

$

$

Not available

5

Cub Cadet 603-04831

Foot Lift Pivot Assembly
(Superseded to 603-04881)

Note: For models built 6.7.2010 & After

$80.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 603-04748-0637

Lift Pedal Assembly

Note: For models built 6.6.2010 & Before

$

$

Not available

6

Cub Cadet 759-04272

Lift Pedal Service Kit

Note: For models built 6.6.2010 & Before

$

$

Not available

6

Cub Cadet 603-04828-0637

Lift Pedal Assembly

Note: For models built 6.7.2010 & After

$

$

Not available

6

Cub Cadet 732-04288

Torsion Spring

Note: For models built 6.7.2010 & After

$8.49

$

In Stock, only 1 left!

0

6

Cub Cadet 738-0966A

Screw .50X.925

Note: For models built 6.7.2010 & After

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 603-04771-4021

Deck Lift Adjustment Bracket
(Superseded to 603-04771)

$

$

Not available

8

Cub Cadet 703-07489

Lift Link Bracket
(Superseded to 703-07489A)

Variations

Cub Cadet 703-07489-0637

Deck Lift Link - POWDER BLACK (0637)

$11.99

$

In Stock, Qty 14

0

$11.99

$

In Stock, Qty 14

0

9

Cub Cadet 703-07540-0637

Index Plate

$

$

Not available

10

Cub Cadet 703-07552

Pedal Link Plate

Variations

Cub Cadet 703-07552-0637

USE 703-07552 LINK-LIFT PEDAL - POWDER BLACK (0637)

$

$

Not available

$

$

11

Cub Cadet 703-07554-0637

Mide Link Plate

$

$

Not available

12

Cub Cadet 703-07639-0637

Front Hanger Rod Bracket Mount

$

$

Not available

13

Cub Cadet 703-07663-4021

Deck Up Stop Bracket
(Superseded to 703-07663A-0637)

$

$

Not available

14

Cub Cadet 703-07672-0637

Deck Lift Square Spacer

$9.99

$

In Stock, Qty 18

0

15

Cub Cadet 703-07770-0637

Mid-Angled Link Plate

$36.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 710-0514

Hex Screw, 3.8-16 x 1.00

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 710-0528

Hex Screw, 5.16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 710-1008

Hex Washer Screw, 3.8-16 x 1.875

$5.49

$

In Stock, Qty 20+

0

19

Cub Cadet 710-3011

Hex Screw, 3.8-16 x 2.25

$6.49

$

In Stock, Qty 20+

0

20

Cub Cadet 710-3032

Hex Screw, 1.2-13 x 1.25

$6.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 911-04160

Lock Pin, .375 x 2.25

$22.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 712-04065

Flange Lock Nut, 3.8-16

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 912-3015

Jam Nut, 5.8-11
(Superseded to 712-3015)

$4.49

$

In Stock, Qty 15

0

24

Cub Cadet 712-3083

Hex Lock Nut, 1.2-13

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 914-0145

Click Pin, .092 x 1.64
(Superseded to 714-0145)

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 916-0231

E-Type Ring, .750
(Superseded to 716-0231)

$

$

Not available

27

Cub Cadet 917-04074

Adjustable Deck Gear

$12.99

$

In Stock, Qty 20+

0

28

Cub Cadet 731-06848

Spacer, .791 x .950 x 1.35

$7.49

$

In Stock, only 1 left!

0

29

Cub Cadet 936-0119

Lock Washer, 5.16

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 736-0343

Flat Washer, .330 x 1.25 x .120

$4.49

$

In Stock, Qty 19

0

31

Cub Cadet 738-04337A

Shoulder Spacer, .9790 x .2025

$5.49

$

In Stock, Qty 11

0

32

Cub Cadet 738-04428

Shoulder Spacer, 3.8-16 x .562 x .360

$12.99

$

In Stock, only 1 left!

0

33

Cub Cadet 738-1007

Shoulder Screw, 3.8-16 x .50 x .50

$

$

Not available

34

Cub Cadet 941-0598

Hex Flange Bearing, .752

$11.99

$

In Stock, Qty 20+

0

35

Cub Cadet 750-04215

Spacer, .375 x .625 x 1.290

$

$

Not available

36

Cub Cadet 750-05184

Spacer, .760 x 2.000 x .790

$34.99

$

In Stock, Qty 5

0

37

Cub Cadet 750-05362

Spacer, .632 x .877 x .281

$3.49

$

Usually ships in 3-6 days

0
