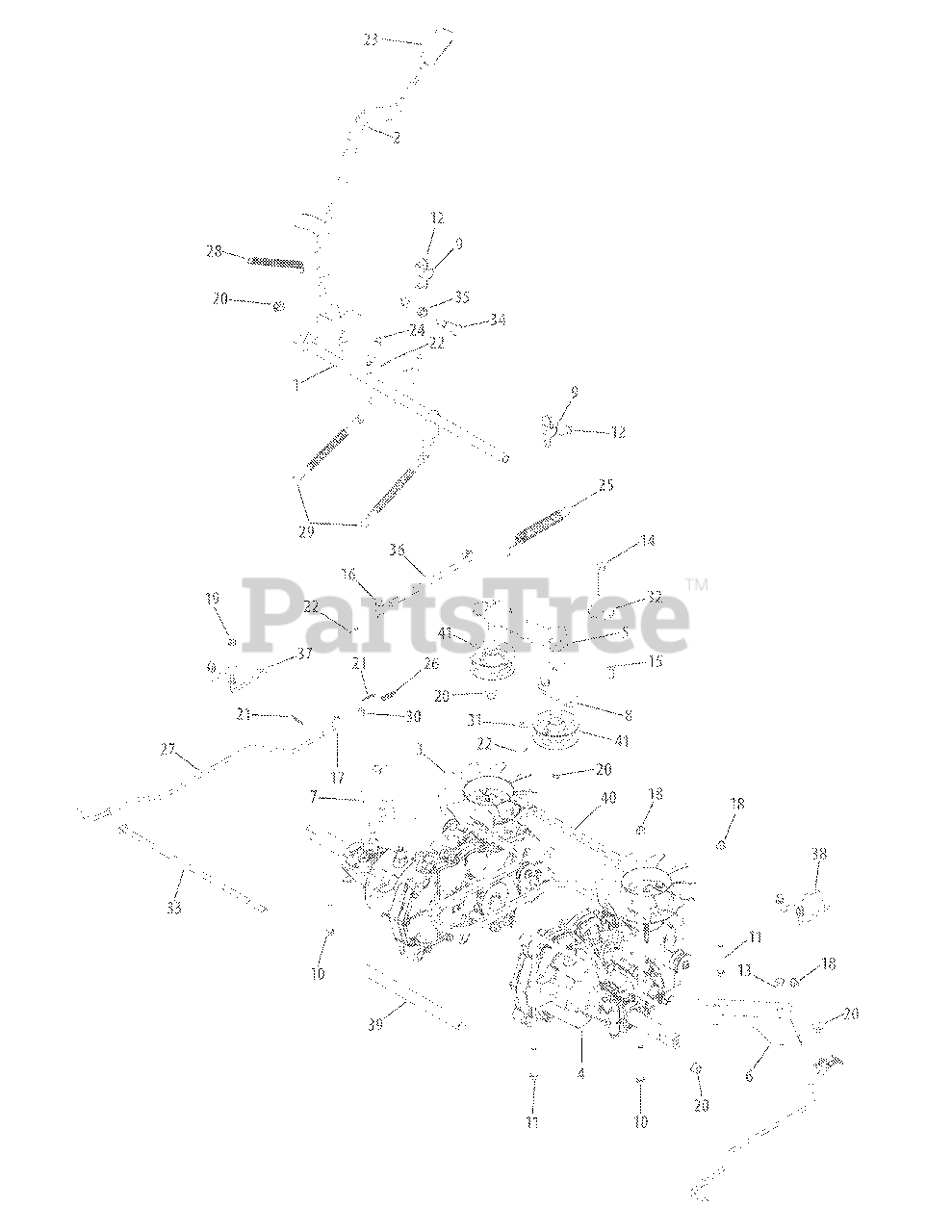

Z-Force S48 LP (17AP5BHB710) - Cub Cadet 48" Z-Force S Zero-Turn Mower, Kawasaki Propane Drive System 48-Inch Deck Parts Diagram

48" Z-Force S Zero-Turn Mower, Kawasaki Propane

Drive System 48-Inch Deck Parts Diagram

  • Title

1

Cub Cadet 603-04770

Brake Shaft Assembly

$

$

Not available

2

Cub Cadet 603-04773

Brake Handle Assembly

$120.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 918-04868

LH Transmission Assembly
(Superseded to 918-04868A)

$1302.99

$

Usually ships in 3-6 days

0

3

Cub Cadet HG-71826

Kit includes Fan, Pulley, Hardware

Note: Not shown

$

$

Not available

3

Cub Cadet HG-52576

Fan-7 inch, 10 blade

Note: Not shown, included in HG-71826 Kit

$24.99

$

Usually ships in 3-6 days

0

3

Cub Cadet HG-51182

Pulley-4.5 inch

Note: Not shown, included in HG-71826 Kit

$

$

Not available

3

Cub Cadet HG-44133

Hex Jam Nut1/2-20 w/patch

Note: Not shown, included in HG-71826 Kit

$4.99

$

In Stock, only 1 left!

0

3

Cub Cadet HG-51076

Hex Washer HD Tapping Screw 1/4-20 X .875

Note: Not shown, included in HG-71826 Kit

$2.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 918-04869

RH Transmission Assembly
(Superseded to 918-04869A)

$1484.99

$

Usually ships in 3-6 days

0

4

Cub Cadet HG-71826

Kit includes Fan, Pulley, Hardware

Note: Not shown

$

$

Not available

4

Cub Cadet HG-52576

Fan-7 inch, 10 blade

Note: Not shown, included in HG-71826 Kit

$24.99

$

Usually ships in 3-6 days

0

4

Cub Cadet HG-51182

Pulley-4.5 inch

Note: Not shown, included in HG-71826 Kit

$

$

Not available

4

Cub Cadet HG-44133

Hex Jam Nut1/2-20 w/patch

Note: Not shown, included in HG-71826 Kit

$4.99

$

In Stock, only 1 left!

0

4

Cub Cadet HG-51076

Hex Washer HD Tapping Screw 1/4-20 X .875

Note: Not shown, included in HG-71826 Kit

$2.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-07318A-0637

Idler Bracket
(Superseded to 703-07318C)

$41.99

$

In Stock, only 4 left!

0

6

Cub Cadet 703-07367-0637

RH Mount Bracket

$33.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-07368-0637

LH Mount Bracket

$

$

Not available

8

Cub Cadet 703-07484-0637

Idler Mount Plate

$25.99

$

In Stock, only 1 left!

0

9

Cub Cadet 703-07593

Shaft Mount Bracket

$

$

Not available

10

Cub Cadet 710-0176

Hex Screw, 5.16-18 x 2.75

$4.99

$

In Stock, only 2 left!

0

11

Cub Cadet 710-0395

Hex Screw, 5.16-18 x 2.25

$4.99

$

In Stock, Qty 11

0

12

Cub Cadet 710-04484

Hex Washer Screw, 5.16-18 x .750

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0514

Hex Screw, 3.8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 710-3011

Hex Screw, 3.8-16 x 2.25

$7.49

$

In Stock, Qty 20+

0

15

Cub Cadet 710-3038

Hex Screw, 5.16-18 x .875

$5.49

$

In Stock, only 1 left!

0

16

Cub Cadet 711-0832

Ferrule, 3.8-24 x .375
(Superseded to 911-0832)

$16.99

$

In Stock, Qty 6

0

17

Cub Cadet 711-1530

Ferrule, .325 x .312

$

$

Not available

18

Cub Cadet 712-04063

Flange Lock Nut, 5.16-18

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 712-04064

Flange Lock Nut, 1.4-20

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 712-04065

Flange Lock Nut, 3.8-16

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 914-0104

Cotter Pin, .072 x 1.13
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 16

0

22

Cub Cadet 914-0507

Cotter Pin, 3.32 x .750

$4.99

$

In Stock, Qty 11

0

23

Cub Cadet 731-04735

Selector Handle

$21.99

$

In Stock, only 2 left!

0

24

Cub Cadet 932-0209

Extension Spring, .48 x 2.03

$7.99

$

In Stock, Qty 8

0

25

Cub Cadet 732-04229

Extension Spring, .75 x 6.02

$21.99

$

In Stock, Qty 10

0

26

Cub Cadet 732-0437

Compression Spring, .34 x 1.0

$10.99

$

In Stock, Qty 8

0

27

Cub Cadet 732-04688A

Transmission Bypass Lever Wire

$20.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 732-0963

Extension Spring, .50 x 6.37

$10.99

$

In Stock, Qty 14

0

29

Cub Cadet 732-0994

Extension Spring, .500 x 7.0

$10.99

$

In Stock, only 4 left!

0

30

Cub Cadet 936-0175

Spring Washer, .265 x .562 x .025

$4.49

$

In Stock, only 3 left!

0

31

Cub Cadet 936-0314

Thrust Washer, .375 x .70 x .030
(Superseded to 736-0314)

$

$

Not available

32

Cub Cadet 738-04392

Shoulder Spacer, .884 x .190

$14.99

$

In Stock, only 2 left!

0

33

Cub Cadet 738-04423

Rod, .328 x 14.00

$

$

Not available

34

Cub Cadet 938-0533

Shoulder Screw, .498 x 1.635
(Superseded to 738-0533)

$8.49

$

Usually ships in 3-6 days

0

35

Cub Cadet 741-0491

Flange Bearing, .500 x .34

$5.49

$

In Stock, Qty 12

0

36

Cub Cadet 747-05139A

Disengage Brake Rod

$

$

Not available

37

Cub Cadet 747-05277

LH Keeper Rod
(Superseded to 747-05277B)

$16.99

$

In Stock, only 3 left!

0

38

Cub Cadet 747-05278

RH Keeper Rod
(Superseded to 747-05278B)

$17.99

$

In Stock, only 2 left!

0

39

Cub Cadet 750-05347

Transmission Spacer, 9.40

$20.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 954-04250

Belt

$46.99

$

In Stock, Qty 10

0

41

Cub Cadet 756-04224

Flat Idler Pulley, 2.75

$28.99

$

In Stock, Qty 20+

0
