Z-Force S54 KH (53AH5FJC050) - Cub Cadet 54" Z-Force S Zero-Turn Mower, Kohler Kohler CV680-3027 Fuel System Parts Diagram

54" Z-Force S Zero-Turn Mower, Kohler

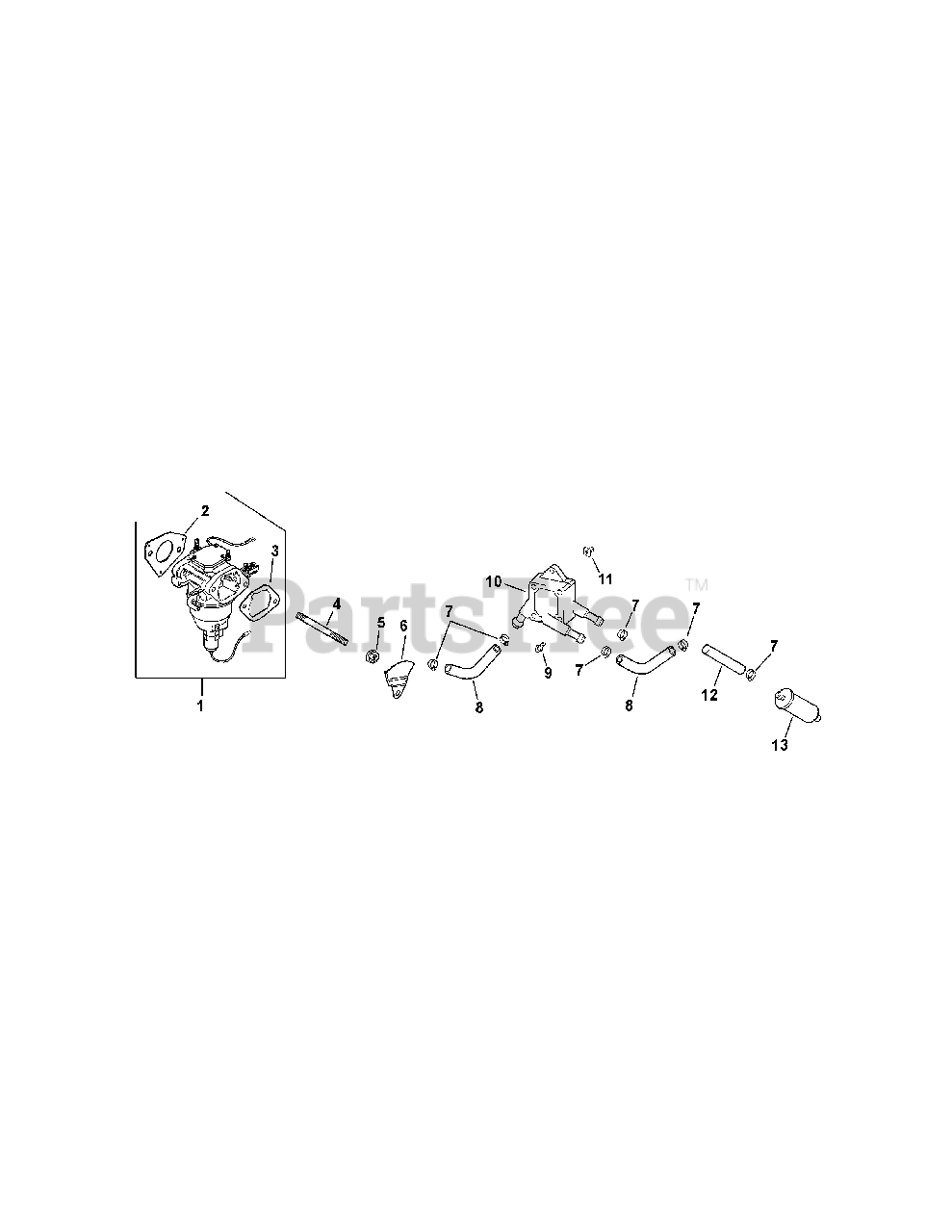

Kohler CV680-3027 Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-24-853-169-S

CARB ASSY (Includes 2,3)
(Superseded to KH-24-853-303-S)

$361.99

$

Usually ships in 3-6 days

0

2

Cub Cadet KH-24-041-15

GASKET, CARBURETOR

$

$

Not available

3

Cub Cadet KH-24-041-06

GASKET, AIR CLEANER BASE

$2.49

$

In Stock, Qty 11

0

4

Cub Cadet KH-M-629095-S

STUD,M6X1.0X96

$3.99

$

In Stock, only 1 left!

0

5

Cub Cadet KH-M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 10

0

6

Cub Cadet KH-24-063-51-S

BAFFLE, SPIT-BACK CUP
(Superseded to KH-24-063-105-S)

$8.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-25-237-14-S

CLAMP, HOSE 1/2'' USE 25 237 31-S
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, Qty 7

0

8

Cub Cadet KH-25-111-34-S

LINE, FUEL (24''-CUT TO LENGTH)
(Superseded to KH-25-111-81-S)

$17.99

$

In Stock, only 3 left!

0

9

Cub Cadet KH-24-086-12

SCREW, TAP M6X1.7X18

$

$

Not available

10

Cub Cadet KH-24-393-16

PUMP, FUEL

$

$

Not available

11

Cub Cadet KH-25-100-37-S

NUT, PLASTIC - BLACK

$2.49

$

In Stock, only 3 left!

0

12

Cub Cadet KH-25-353-12-S

LINE, FUEL 11"

$3.49

$

Usually ships in 2-5 days

0

13

Cub Cadet KH-24-050-13-S

FILTER, FUEL
(Superseded to 2405013S1C)

$12.99

$

In Stock, Qty 20+

0

Cub Cadet KH-25-454-05-S

TIE

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 2 left!

0
