Z-Force S60 (17AI5GHD010) - Cub Cadet 60" Z-Force S Zero-Turn Mower, Kawasaki (2012) Kawasaki FR730V-AS05 Cooling Equipment Parts Diagram

60" Z-Force S Zero-Turn Mower, Kawasaki

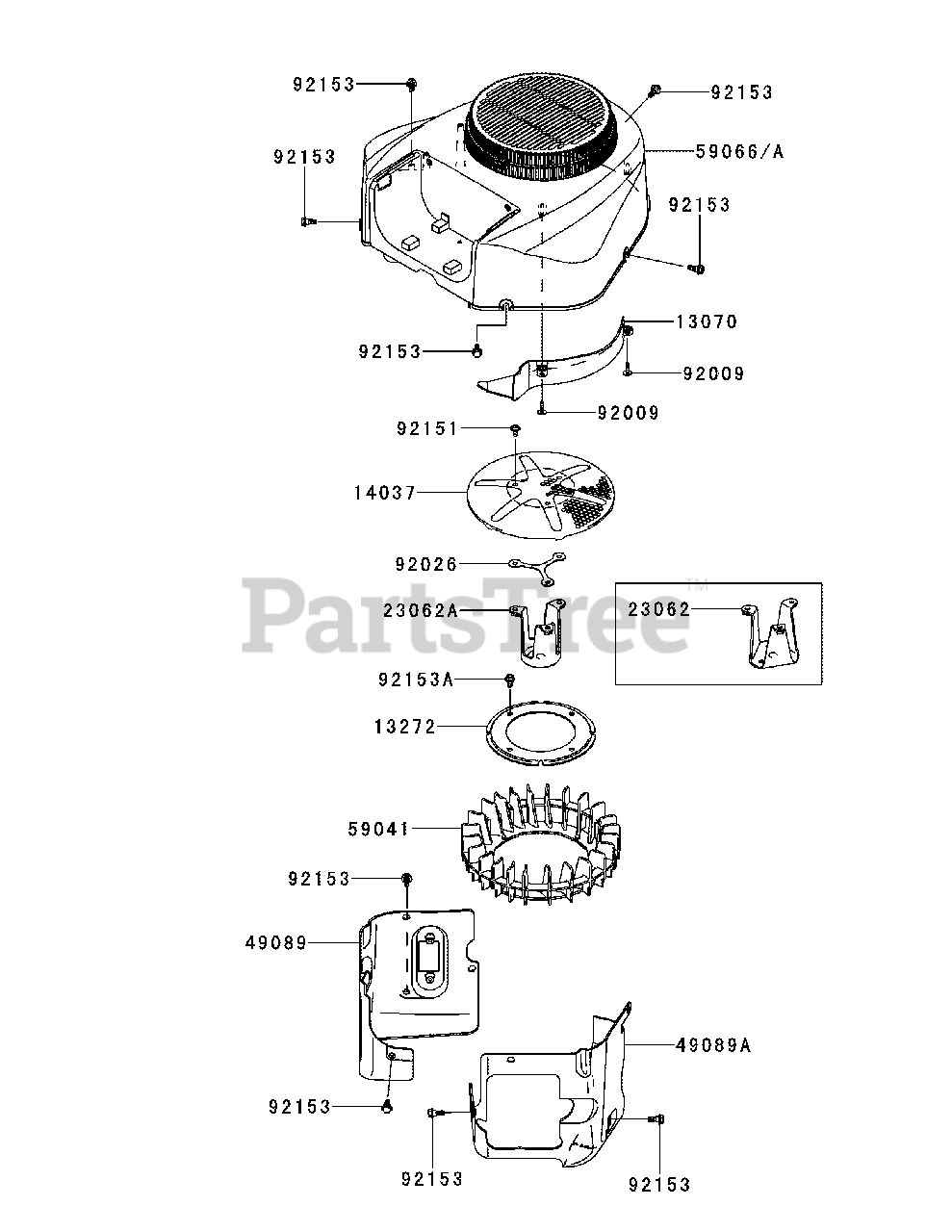

Kawasaki FR730V-AS05 Cooling Equipment Parts Diagram

  • Title

13070

Cub Cadet KM-13070-7019

Cooling Air Guide
(Superseded to KM-99999-0398)

$

$

Not available

13272

Cub Cadet KM-13272-7006

Fan Plate
(Superseded to KM-13272-1488)

$10.99

$

In Stock, only 1 left!

0

14037

Cub Cadet KM-14037-70089H

Screen

$35.99

$

In Stock, Qty 14

0

23062

Cub Cadet KM-23062-7005

Complete Bracket
(Superseded to KM-23062-7022)

$12.99

$

In Stock, only 1 left!

0

23062A

Cub Cadet KM-23062-7022

Complete Bracket

$12.99

$

In Stock, only 1 left!

0

49089

Cub Cadet KM-49089-7079

Engine Shroud
(Superseded to KM-49089-0951)

$21.99

$

In Stock, only 1 left!

0

49089A

Cub Cadet KM-49089-7080

Engine Shroud
(Superseded to KM-49089-0952)

$27.99

$

Usually ships in 2-5 days

0

59041

Cub Cadet KM-59041-7014

Fan

$17.99

$

In Stock, only 1 left!

0

59066/A

Cub Cadet KM-59066-7063

Fan Housing

$

$

Not available

92009

Cub Cadet KM-92009-2303

Screw

$2.99

$

In Stock, Qty 7

0

92026

Cub Cadet KM-92026-7007

Spacer

$5.99

$

Usually ships in 2-5 days

0

92151

Cub Cadet KM-92151-7012

Bolt, 6 x 12
(Superseded to KM-92154-2687)

$1.49

$

In Stock, Qty 20+

0

92153

Cub Cadet KM-92153-7007

Bolt

$4.49

$

In Stock, only 1 left!

0

92153A

Cub Cadet KM-92153-7043

Bolt, 6 x 12
(Superseded to KM-92154-2938)

$0.99

$

In Stock, Qty 20+

0
