Z-Force S60 (53BH5FJD050) - Cub Cadet 60" Z-Force S Zero-Turn Mower, Kohler (2013) Kohler CV730-3148 Blower Housing & Baffles Parts Diagram

60" Z-Force S Zero-Turn Mower, Kohler

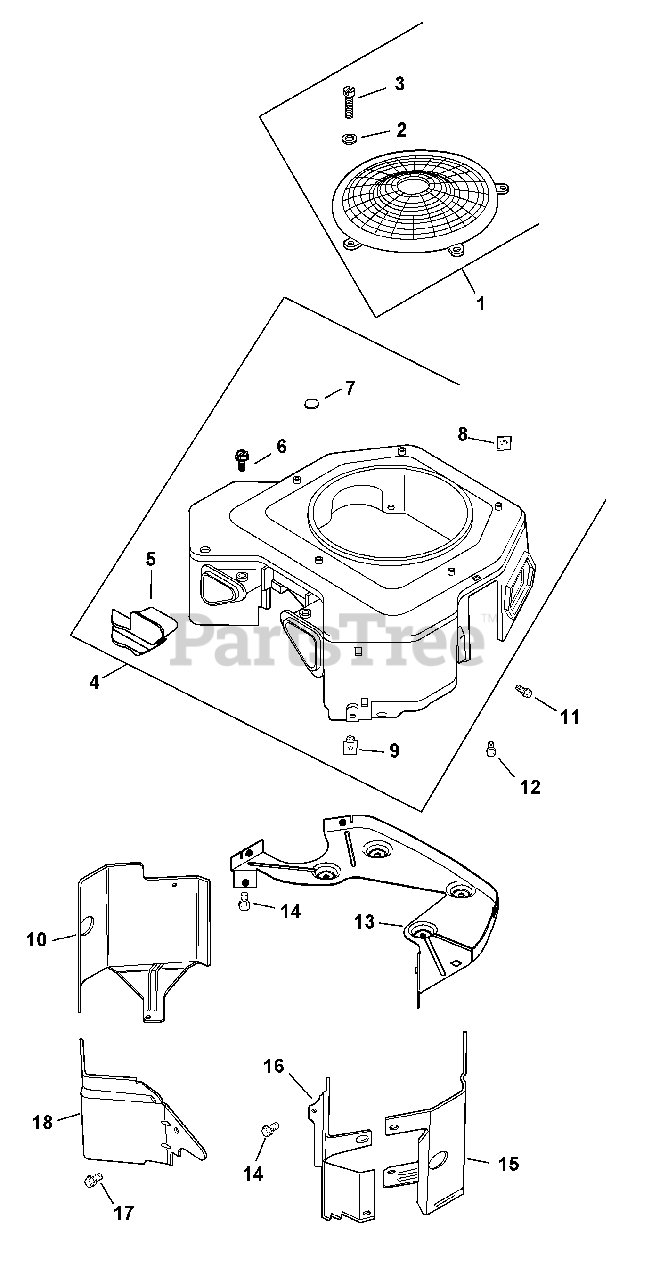

Kohler CV730-3148 Blower Housing & Baffles Parts Diagram

  • Title

1

Cub Cadet KH-24-755-81-S

Kit, Guard

Note: (Includes 2,3 & KH-24-113-18-S, KH-24-332-01-S)

$52.99

$

In Stock, only 3 left!

0

2

Cub Cadet KH-24-468-10

Washer, Flat 7/32

$

$

Not available

3

Cub Cadet KH-24-086-35-S

Screw, Lbd Skt Pan M5x0.8x10

$2.49

$

Usually ships in 2-5 days

0

4

Cub Cadet KH-24-027-196-S

Kit Blower Housing Assembly
(Superseded to KH-24-027-492-S)

Note: (Inc. 5-9, 24 332 01-S & 41 037 10-S)

$136.99

$

Usually ships in 2-5 days

0

5

Cub Cadet KH-24-096-85-S

Cover, Blower Housing-Molded
(Superseded to KH-24-096-161-S)

$2.49

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-25-086-91-S

Screw, WSH HD Tap #8-18 x 1/2"

$3.49

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-25-139-16

Plug, Button 9/16

$

$

Not available

8

Cub Cadet KH-24-100-02-S

Nut, Plastic

$2.49

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-25-100-37-S

Nut, Plastic

$2.49

$

In Stock, only 3 left!

0

10

Cub Cadet KH-24-063-85-S

Kit, Cyl Barrel - #1 Side

$17.99

$

Usually ships in 2-5 days

0

11

Cub Cadet KH-M-545016-S

Screw, Flg Thd Frm M5x0.8x16
(Superseded to KH-25-086-398-S)

$3.99

$

In Stock, Qty 13

0

12

Cub Cadet KH-M-545020-S

Screw, Flg Thd Frm M5x0.8x20
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 17

0

13

Cub Cadet KH-24-146-59-S

Kit, Backing Plate (Inc. M-545016-S)

$15.99

$

In Stock, only 2 left!

0

14

Cub Cadet KH-M-645016-S

Screw, Flg Thd Frm M6x1.0x16

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet KH-24-063-88-S

Kit, Cyl Baffle - #2 Side

$28.99

$

Usually ships in 2-5 days

0

16

Cub Cadet KH-24-063-94-S

Baffle, Valley #2 Side

$9.49

$

In Stock, only 1 left!

0

17

Cub Cadet KH-M-0545010

Screw, Flg Thd Frm M5x0.8x10

$

$

Not available

18

Cub Cadet KH-24-063-60-S

Baffle, Valley #1 Side

$

$

Not available

Cub Cadet KH-25-086-160-S

Screw, Sems

Note: (not shown)

$2.99

$

In Stock, only 4 left!

0

Cub Cadet KH-24-332-01-S

Insert Threaded

Note: (not shown)

$

$

Not available

Cub Cadet KH-41-037-10-S

Nameplate, Service

Note: (not shown)

$8.49

$

In Stock, only 3 left!

0

Cub Cadet KH-24-113-18-S

Decal, Grass Screen

Note: (not shown)

$

$

Not available
