Z-Force S60 (53BH5FJD050) - Cub Cadet 60" Z-Force S Zero-Turn Mower, Kohler (2013) Transmission 918-04996A RH Parts Diagram

60" Z-Force S Zero-Turn Mower, Kohler

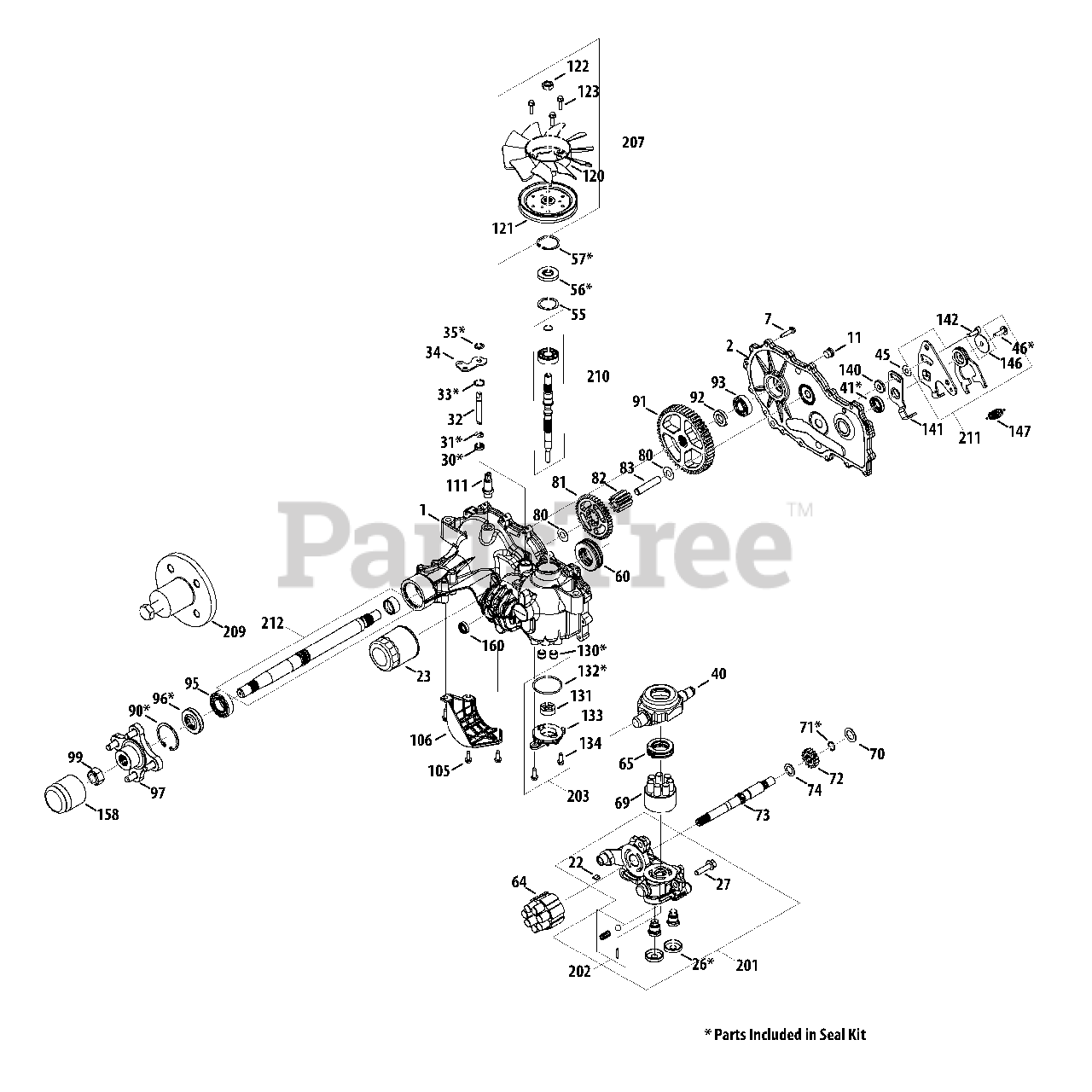

Transmission 918-04996A RH Parts Diagram

  • Title

1

Cub Cadet HG-72189

Kit, Housing, Main, RH

$

$

Not available

2

Cub Cadet HG-72226

Kit, Cover, Side, RH

$54.99

$

Usually ships in 3-6 days

0

7

Cub Cadet HG-53246

Hex Cap Screw, 1/4-20 x 1.125

$3.99

$

Usually ships in 3-6 days

0

11

Cub Cadet HG-9005110-5600

Plug, 9/16-18

$20.99

$

Usually ships in 3-6 days

0

22

Cub Cadet HG-51448

Plate, Bypass

$4.49

$

Usually ships in 3-6 days

0

23

Cub Cadet HG-52114P

Oil Filter

$32.99

$

Usually ships in 3-6 days

0

26

Cub Cadet HG-52162

Seal, Plug, 1.25 x .25

$10.99

$

In Stock, only 1 left!

0

27

Cub Cadet HG-52137

Hex Cap Screw, 3/8-16 x 1.5

$3.99

$

Usually ships in 3-6 days

0

30

Cub Cadet HG-51626

Seal, Lip .375 x .75 x .25
(Superseded to HG-55232)

$4.99

$

Usually ships in 3-6 days

0

31

Cub Cadet HG-51628

Ring, Ret .375 External

$4.49

$

In Stock, Qty 11

0

32

Cub Cadet HG-52136

Rod, Bypass

$9.99

$

Usually ships in 3-6 days

0

33

Cub Cadet HG-51627

Ring, Ret .75 Internal

$4.49

$

Usually ships in 3-6 days

0

34

Cub Cadet HG-52742

Arm, Bypass

$

$

Not available

35

Cub Cadet HG-51630

Ring, Retaining .375 External

$3.99

$

In Stock, only 3 left!

0

40

Cub Cadet HG-51048

Trunnion, Swashplate

$88.99

$

Usually ships in 3-6 days

0

41

Cub Cadet HG-51140

Seal, Lip 12 x 32 x 7

$9.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 736-0371

Washer, .34 x .88 x .06

$4.49

$

In Stock, Qty 7

0

46

Cub Cadet HG-51812

Hex Cap Screw, 5/16-24 x 1.00

$4.49

$

Usually ships in 3-6 days

0

55

Cub Cadet HG-50951

Washer, 1.23 x 1.56 x .04

$4.49

$

Usually ships in 3-6 days

0

56

Cub Cadet HG-51161

Seal, Lip 17 x 40 x 7

$11.99

$

Usually ships in 3-6 days

0

57

Cub Cadet HG-50329

Ring, Retaining

$11.99

$

Usually ships in 3-6 days

0

60

Cub Cadet HG-51462

Bearing, Thrust
(Superseded to HG-51462P)

$33.99

$

Usually ships in 3-6 days

0

64

Cub Cadet HG-71579

Cylinder Block Assembly
(Superseded to HG-72882)

$140.99

$

Usually ships in 3-6 days

0

65

Cub Cadet HG-50551P

Thrust Ball Bearing, 30 x 52 x 13

$29.99

$

Usually ships in 3-6 days

0

69

Cub Cadet HG-70723

Block 7 Piston Assembly

$228.99

$

In Stock, only 3 left!

0

70

Cub Cadet HG-44371

Washer, .63 x 1.0 x .05

$15.99

$

Usually ships in 3-6 days

0

71

Cub Cadet HG-44145

Retaining Ring, .625

$4.49

$

In Stock, only 2 left!

0

72

Cub Cadet HG-52341

Gear, 14t

$51.99

$

Usually ships in 3-6 days

0

73

Cub Cadet HG-53136

Motor Shaft

$

$

Not available

74

Cub Cadet HG-51069

Washer, .72 x 1.16 x .04

$4.49

$

Usually ships in 3-6 days

0

80

Cub Cadet HG-50132

Washer, .5 x 1.0 x .03

$4.49

$

Usually ships in 3-6 days

0

81

Cub Cadet HG-52110

Gear, 45t

$25.99

$

Usually ships in 3-6 days

0

82

Cub Cadet HG-52586

Gear, 11t

$39.99

$

Usually ships in 3-6 days

0

83

Cub Cadet HG-51083

Jack Shaft

$33.99

$

Usually ships in 3-6 days

0

90

Cub Cadet HG-50859

Retaining Ring, 2.06 Internal

$6.99

$

Usually ships in 3-6 days

0

91

Cub Cadet HG-52108

Gear, 54t

$73.99

$

Usually ships in 3-6 days

0

92

Cub Cadet HG-53336

Spacer, .75 x 1.32 x .257

$3.99

$

Usually ships in 3-6 days

0

93

Cub Cadet HG-44121P

Ball Bearing, .75 x 40 x 12

$56.99

$

In Stock, only 2 left!

0

95

Cub Cadet HG-53656

Ball Bearing, 1.0 x 52 x 15

$17.99

$

In Stock, only 2 left!

0

96

Cub Cadet HG-53699

Seal, Lip 25 x 52 x 10

$9.49

$

In Stock, only 2 left!

0

97

Cub Cadet HG-71445

Kit, Hub, 4 Bolt

$102.99

$

Usually ships in 3-6 days

0

99

Cub Cadet HG-53768

Nut, 3/4-16, Hex Lock

$

$

Not available

105

Cub Cadet HG-50752

Hex Cap Screw, 1/4-20 x .75

$4.49

$

Usually ships in 3-6 days

0

106

Cub Cadet HG-53655

Guard, Filter, RH

$18.99

$

Usually ships in 3-6 days

0

111

Cub Cadet HG-71393

Fitting, 9/16-18 SAE .5 Barb

$47.99

$

Usually ships in 3-6 days

0

120

Cub Cadet HG-53824

Fan 7", 10 Blade

$19.99

$

Usually ships in 3-6 days

0

121

Cub Cadet HG-53806

Disc, Pulley

$

$

Not available

122

Cub Cadet HG-44133

Nut, 1/2-20, Hex Jam

$4.99

$

In Stock, only 4 left!

0

123

Cub Cadet HG-51076

Hex Cap Screw, 1/4-20 x .875

$2.99

$

Usually ships in 3-6 days

0

130

Cub Cadet HG-52157

Connecting Tube
(Superseded to HG-54501)

$4.99

$

In Stock, Qty 20+

0

131

Cub Cadet HG-50273

Gerotor Assembly

$36.99

$

Usually ships in 3-6 days

0

132

Cub Cadet HG-52250

O-Ring, -137, .103 x 2.050

$3.99

$

Usually ships in 3-6 days

0

133

Cub Cadet HG-53738

Charge Pump Cover

$70.99

$

Usually ships in 3-6 days

0

134

Cub Cadet HG-50752

Hex Cap Screw, 1/4-20 x .75

$4.49

$

Usually ships in 3-6 days

0

140

Cub Cadet HG-52527

Spacer, .320 x 1.005 x .179
(Superseded to HG-54315)

$2.99

$

Usually ships in 3-6 days

0

141

Cub Cadet HG-51946

Neutral Left Arm

$13.99

$

In Stock, only 4 left!

0

142

Cub Cadet HG-71341

Hex Cap Screw, 5/16-24

$9.49

$

Usually ships in 3-6 days

0

146

Cub Cadet HG-54244

Washer, .343 x 1.5 x .062

$6.49

$

Usually ships in 3-6 days

0

147

Cub Cadet HG-52401

Extension Spring, .57 x 2"

$4.99

$

In Stock, Qty 20+

0

158

Cub Cadet HG-53501

Axle Cap

$11.99

$

Usually ships in 3-6 days

0

160

Cub Cadet HG-53138

Seal, Lip, .625 x .875 x .25

$

$

Not available

201

Cub Cadet HG-71565

Kit, Center Section, RH

$353.99

$

Usually ships in 3-6 days

0

202

Cub Cadet HG-71436

Kit, Charge Relief

$10.99

$

Usually ships in 3-6 days

0

203

Cub Cadet HG-72274

Kit, Charge Pump

$114.99

$

In Stock, Qty 7

0

207

Cub Cadet HG-72126

Kit, Fan & Pulley

$57.99

$

Usually ships in 3-6 days

0

209

Cub Cadet HG-71459

Hub Puller, 4 Bolt
(Superseded to HG-72320)

$231.99

$

Usually ships in 3-6 days

0

210

Cub Cadet HG-71442

Kit, Input Shaft
(Superseded to HG-73047)

$88.99

$

In Stock, only 1 left!

0

211

Cub Cadet HG-71592

Kit, RTN, Bidirectional

$48.99

$

In Stock, only 4 left!

0

212

Cub Cadet HG-71570

Kit, Shaft, Axle

$178.99

$

Usually ships in 3-6 days

0

Cub Cadet HG-71410

Kit, Seal
(Superseded to HG-73107)

Note: (not shown)

$72.99

$

Usually ships in 3-6 days

0
