Z-Force S60 KH (53AH5FJD050) - Cub Cadet 60" Z-Force S Zero-Turn Mower, Kohler Kohler CV730-3134 Fuel System Group Parts Diagram

60" Z-Force S Zero-Turn Mower, Kohler

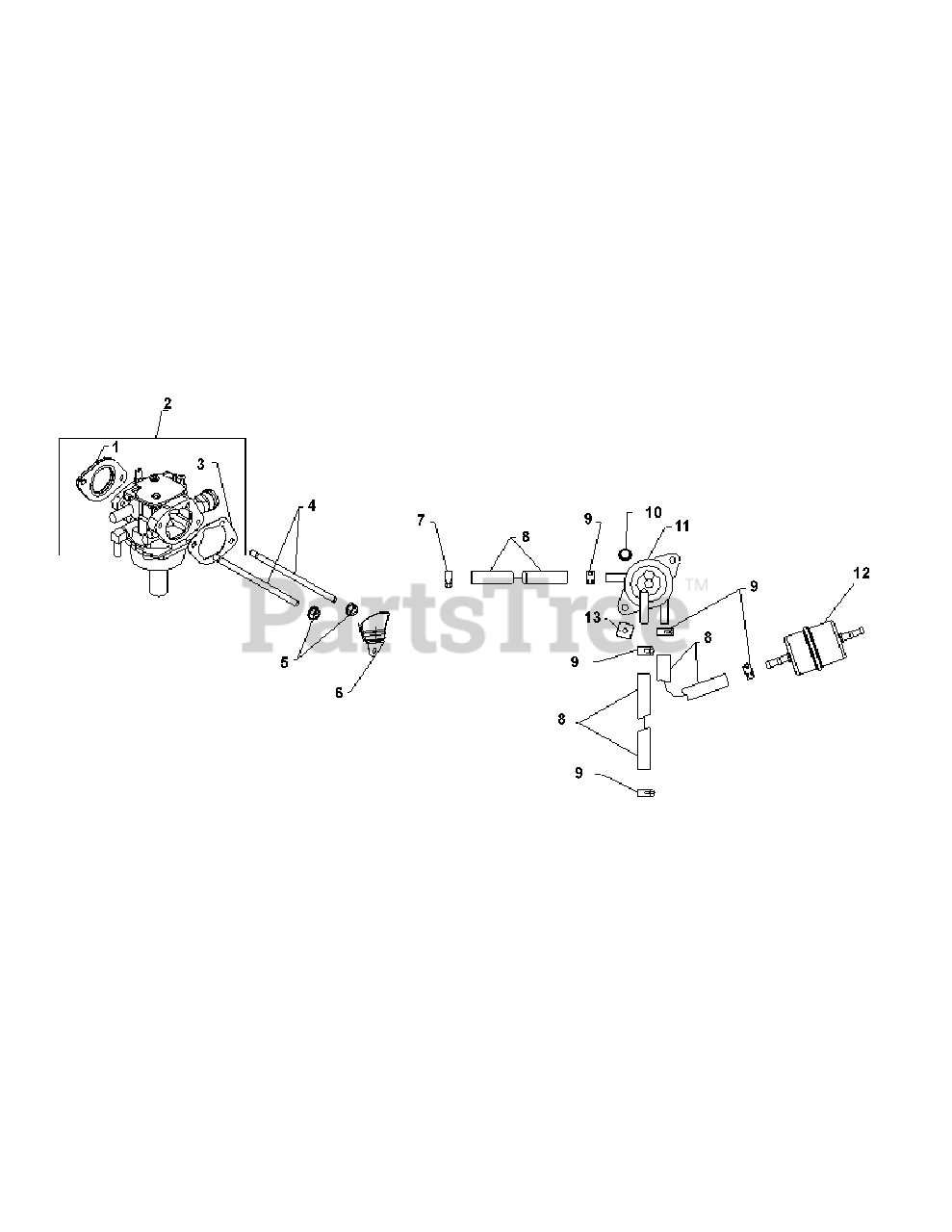

Kohler CV730-3134 Fuel System Group Parts Diagram

  • Title

1

Cub Cadet KH-24-041-15-S

Gasket, Carburetor

$

$

Currently unavailable

2

Cub Cadet KH-24-853-90-S

Kit, Carburetor W/Gaskets

$982.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KH-24-041-14-S

Gasket, Air Cleaner Base

$

$

Currently unavailable

4

Cub Cadet KH-M-629095-S

Stud,M6X1.0X96

$4.99

$

In Stock, Qty 11

0

5

Cub Cadet KH-M-641060-S

Nut, Flg M6X1.0

$4.99

$

In Stock, Qty 20+

0

6

Cub Cadet KH-24-063-51-S

Baffle, Spit-Back Cup Use 24 063 105-S
(Superseded to KH-24-063-105-S)

$8.99

$

In Stock, only 2 left!

0

7

Cub Cadet KH-X-426-9-S

Clamp, Hose 1/2" Use 25 237 14-S

$

$

Currently unavailable

8

Cub Cadet KH-25-111-34-S

Line, Fuel
(Superseded to KH-25-111-81-S)

Note: (24''-CUT TO LENGTH)

$17.99

$

In Stock, Qty 20+

0

9

Cub Cadet KH-25-237-14-S

Clamp, Hose 1/2'' Use 25 237 31-S
(Superseded to KH-25-237-31-S)

$5.49

$

In Stock, Qty 10

0

10

Cub Cadet KH-24-086-12-S

Screw, Tap M6X1.7X18
(Superseded to KH-25-086-784-S)

$2.49

$

In Stock, Qty 20+

0

11

Cub Cadet KH-24-393-16-S

Pump, Fuel

$

$

Currently unavailable

12

Cub Cadet KH-24-050-13-S

Filter, Fuel
(Superseded to 2405013S1C)

$17.99

$

In Stock, Qty 20+

0

13

Cub Cadet KH-25-100-37-S

Nut, Plastic - Black

$2.49

$

In Stock, Qty 17

0

Cub Cadet KH-25-454-05-S

Tie

Note: Not Illustrated

$2.49

$

In Stock, only 2 left!

0
