Z-Force S60 KH FAB (47RSDGHD010) - Cub Cadet 60" Z-Force S Zero-Turn Mower, Fab Deck, Kohler (2021) Front Axle Parts Diagram

60" Z-Force S Zero-Turn Mower, Fab Deck, Kohler

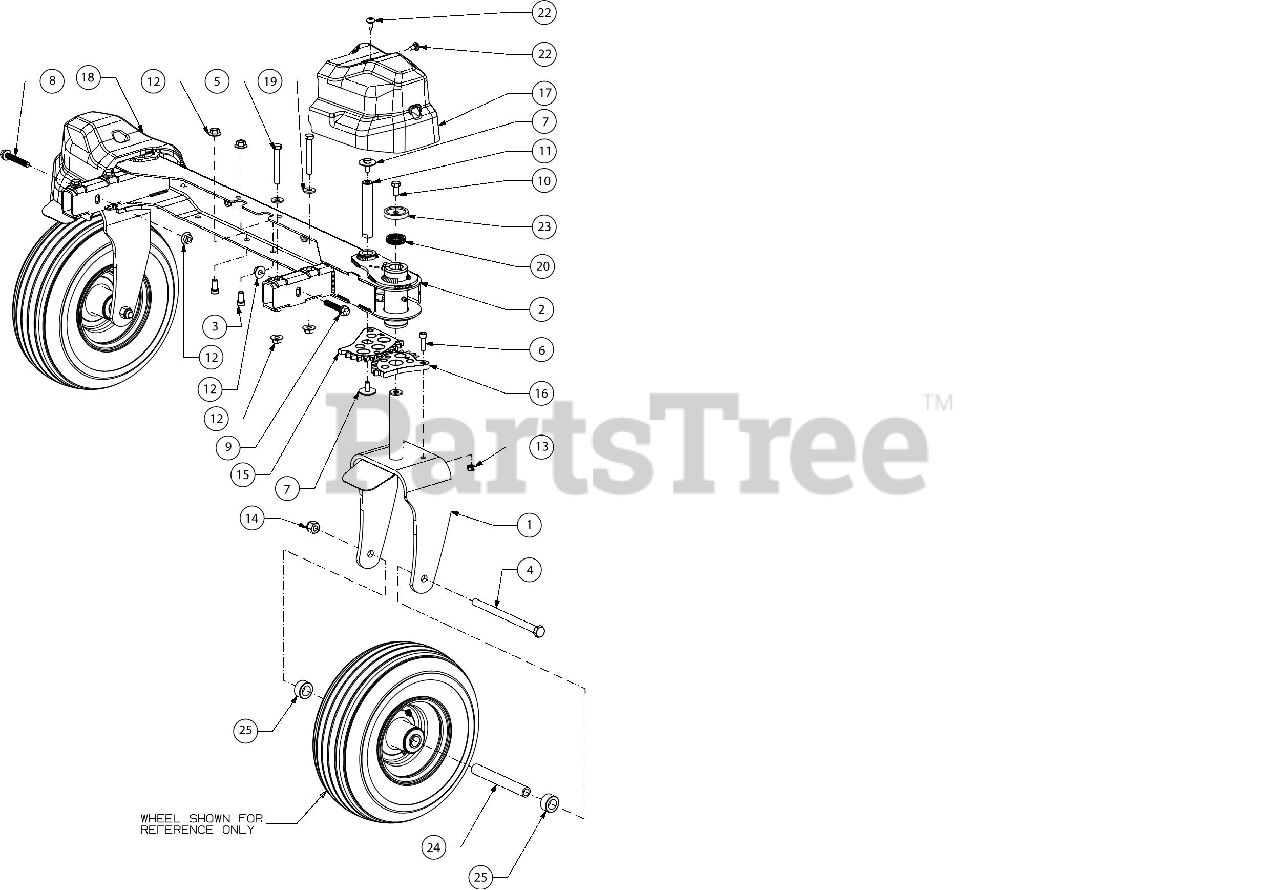

Front Axle Parts Diagram

  • Title

1

Cub Cadet 603-05020A

CASTER WHEEL YOKE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 603-05020A-4021

Caster Wheel Yoke, Yellow - CUB YELLOW 2 (4021)

$149.99

$

In Stock, Qty 5

0

Cub Cadet 603-05020A-0637

Caster Wheel Yoke, Black - POWDER BLACK (0637)

$149.99

$

In Stock, Qty 5

0

$120.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 903-05294

FRONT AXLE ASSEMBLY
(Superseded to 903-05294A)

$579.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 737-04345

GREASE ZERT 1/4-28

Note: (Not Shown)

$4.99

$

In Stock, Qty 6

0

3

Cub Cadet 710-0216

HEX SCREW 3/8-16 x .75

$4.49

$

In Stock, Qty 8

0

4

Cub Cadet 710-04652

BOLT 1/2-20 x 7.25 GR5
(Superseded to 710-11661)

$6.99

$

In Stock, Qty 18

0

5

Cub Cadet 710-04656A

SCREW 3/8-16 x 2.75 GR5

$6.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-06508

SCREW 5/16-18X1.25

$4.49

$

In Stock, only 2 left!

0

7

Cub Cadet 710-06041

SCREW 5/16-18 X.75 GR5

$4.99

$

In Stock, only 1 left!

0

8

Cub Cadet 710-06045

SCREW 3/8-16 x 2.25 GR5

$5.99

$

In Stock, only 3 left!

0

9

Cub Cadet 710-06093

SCREW 3/8-16 x 2.00 GR5

$5.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-3119

SCREW 3/8-16 x .75 GR 5

$7.49

$

In Stock, Qty 20+

0

11

Cub Cadet 711-06081A

STEERING GEAR PIVOT SHAFT

$23.99

$

In Stock, only 2 left!

0

12

Cub Cadet 712-04217

FLANGE LOCK NUT

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 912-3009

HEX NUT
(Superseded to 712-3009)

$

$

Not available

14

Cub Cadet 912-3058

HEX NUT CENTER

$5.99

$

In Stock, Qty 18

0

15

Cub Cadet 717-04952

STEERING GEAR

$56.99

$

In Stock, only 1 left!

0

16

Cub Cadet 717-05133

STEERING SPUR GEAR 13T

$54.99

$

In Stock, Qty 12

0

17

Cub Cadet 731-09291A

AXLE COVER (RH)

$21.99

$

In Stock, only 2 left!

0

18

Cub Cadet 731-09320A

AXLE COVER (LH)

$21.99

$

In Stock, only 2 left!

0

19

Cub Cadet 736-0262

FLAT WASHER .385X.870X.090

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 736-05033A

WAVE WASHER

$5.49

$

In Stock, Qty 20+

0

22

Cub Cadet 738-04549A

TORX SHOULDER SCREW 1/4-20

$7.99

$

In Stock, Qty 12

0

23

Cub Cadet 738-05093

SHOULDER SPACER 1.75 OD

$6.99

$

In Stock, Qty 5

0

24

Cub Cadet 750-04775A

CASTER SPACER

$29.99

$

In Stock, Qty 20+

0

25

Cub Cadet 750-05572

SPACER .76X1.23X.63

$6.99

$

In Stock, Qty 9

0
